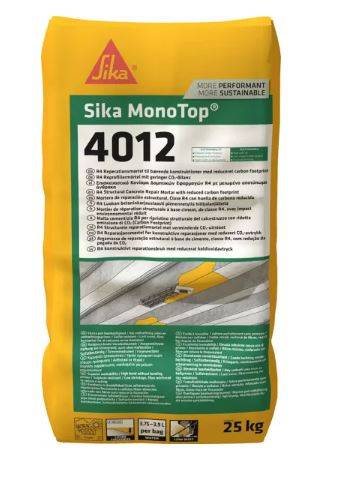

Sika MonoTop®-4012 - Concrete Repair Mortar

Verified by manufacturer 3 months ago

Sika Limited

High performing more sustainable R4 concrete repair mortar.

Jump to:
+44 (0)1707 394444 Website

Application

Sika MonoTop®-4012 is used to repair all types of reinforced

concrete structures and components for:

  • Buildings.
  • Civil engineering structures.
  • Dams.
  • Marine structures.
  • Suitable for interior or exterior applications.
  • Sewage and waste water treatment plants.


The product is used for:

  • Restoration work (Principle 3, method 3,1 and 3,3 of EN 1504-9). Repair of spalling and damaged concrete in infrastructure and superstructure works.
  • Structural strengthening (Principle 4, method 4,4 of EN 1504-9). Increasing the bearing capacity of the concrete structure by adding mortar.
  • Preserving or restoring passivity (Principle 7, method 7,1 and 7,2 of EN 1504-9) - Increasing cover with additional mortar and replacing contaminated or carbonated concrete.

Description

Sika MonoTop®-4012 is a one-part, cementitious, fibre reinforced, low shrinkage repair mortar. It contains recycled raw materials and can reduce the carbon footprint application activity calculations.


Features and benefits:

  • Uses recycled raw materials.
  • Layer thickness 6–120 mm.
  • Sulphate resistant.
  • Hand and machine application (wet spray technique).
  • Easy to apply.
  • Very low shrinkage.
  • Dust reduced.
  • Good resistance to sea water.
  • Does not require a bonding primer.
  • Low permeability.
  • Euroclass A1 fire rating.
  • Class R4 of EN 1504-3.
  • Resistant to sulfuric acid attack (exposure classes
  • XWW1 and XWW3).
  • CE marked.

General information

Color

Grey

Material

Cementitious

Polymer-modified cement

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_20_31_53_30 Fibre-reinforced polymer-modified cementitious mortarsPrimary

CAWS

C42/310 Repair mortar

Product range

Concrete Repair and Protection

Specification data - Fibre-reinforced polymer-modified cementitious mortars

Third-party product certification

Environmental Product Declaration (EPD) in accordance with EN 15804. EPD independently verified by BRE Global.

Density

Fresh mortar density ~ 2.1 kg/L.

Chloride Ion content

≤0.05% (to EN 1015-17).

Colour:

Grey.

CompressiveStrength

56 MPa after 28 days (to EN 12190).

Modulus of elasticity

≥ 20 GPa (to EN 13412).

Flexural strength

28 days 8.0 MPa (to EN 12190).

Tensile Adhesion

2.0 MPa (to EN 1542).

Capillary absorption

0.05 kg.m-2.h-0.5 (to EN 13057).

Carbonation resistance

dk ≤ control concrete MC (0.45) (to EN 13295).

Reaction to fire

Euroclass A1 (to EN 1504-3).

Composition

Sulphate resistant and replacement cement, selected aggregates and additives.

Thermal compatibility

≥2.0 MPa (Part 1 - Freeze-Thaw) (to EN 13687-1).

Water penetration

~10 mm (to EN 12390-8).
