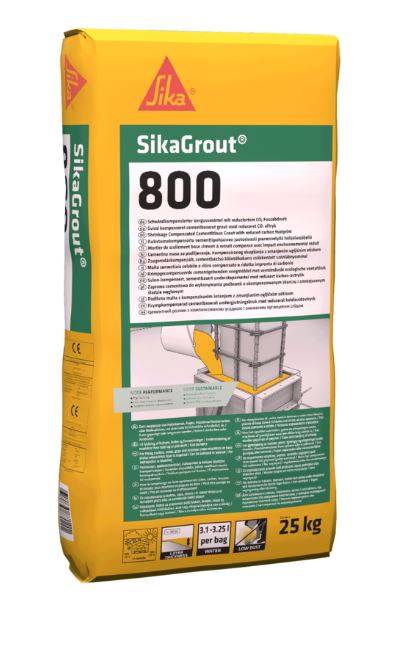

SikaGrout®-800

Verified by manufacturer 6 months ago

Sika Limited

High performance, more sustainable, sulphate resistant cementitious grout

Jump to:
+44 (0)1707 394444 Website

Application

  • Grouting heavy equipment or machine bases.
  • Grouting under support base plates.
  • Bedding joints in precast concrete sections.
  • Sealing around penetrations.
  • Steel reinforcement anchoring.
  • Repairing concrete structures and components.
  • Interior or exterior applications.

Description

SikaGrout®-800 is a cementitious, high performance, shrinkage compensated engineering grout. It contains recycled materials and can reduce the carbon footprint when compared to a reference cementitious grout in a Life Cycle Assessment.


Features and benefits:

  • Uses recycled raw materials.
  • Wide application thickness of 6-300 mm.
  • Dust reduced.
  • Sulphate resistant.
  • High final strengths.
  • Shrinkage compensated both in plastic and hardening stage.
  • Fluid consistency.
  • No segregation or bleeding.
  • Ready to use, just add water.
  • Easy to mix and apply.
  • Can be pumped or poured.
  • Low permeability.
  • Non-corrosive.
  • CE marked.

General information

Color

Grey

Material

Cementitious

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_20_31_53_13 Cementitious groutsPrimary

CAWS

C41/530 Proprietary mortar repairs

C41/530 Proprietary mortar repairs

E60/325 Grouting

Specification data - Cementitious grouts

Colour

Grey.

Composition

Sulphate resistant and replacement cement, selected aggregates and additives.

Chloride Ion content

≤0.05 % (to EN 1015-17).

CompressiveStrength

Cured 28 days at 21°C ~80 MPa (to EN 12190).

Modulus of elasticity

Cured 28 days at 21°C ~32 GPa (to EN 13412).

Flexural strength

Conditioned for 28 days at 20 °C ~10 MPa (to EN 12190).

Tensile Adhesion

≥2.0 MPa (to EN 1542).

Shrinkage

Linear: ≤0.7 mm/m after 91 days (to EN 12617-4).

Thermal compatibility

≥2.0 MPa (Part 1 - Freeze-Thaw) (to EN 1770).

Carbonation resistance

dk ≤ control concrete MC (0.45) (to EN 13295).

Reaction to fire

Euroclass A1 (to EN 1504-3).

Density

Fresh mortar density 2.25 kg/L.
