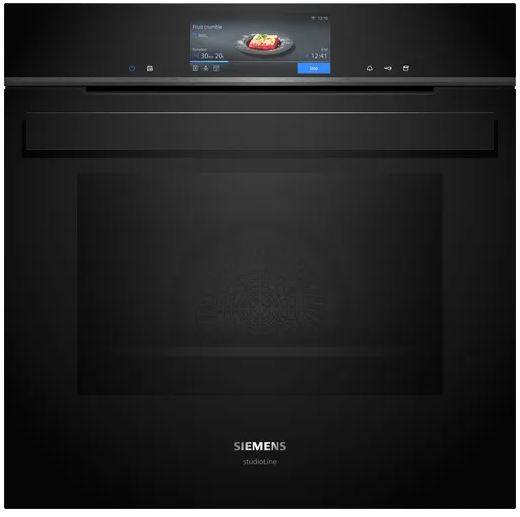

iQ700, Built-in oven with steam function, 60 x 60 cm, Black HS958KDB1
iQ700, Built-in oven with steam function, 60 x 60 cm, Black HS958KDB1
Range of built in ovens with steam function.
Application
For domestic applications.
Description
Range of combi-steam ovens with 24 heating methods depending on the model.
Features and benefits:
- studioLine black steel design.
- Touch control.
- studioLine glass handle.
- Cavity inner surface: enamel anthracite.
- Heat reflective glass.
- Control panel lock.
- Automatic safety switch off residual heat indicator start button.
- Door contact switch.
- Oven assistant with voice control.
Models:
- HS958KDB1: voice activated door opening option via Alexa, multifunction, fullSteam, steam boost, 24 individual and combination functions, Sous Vide, TFT touchDisplay Pro, softMove, roastingSensor Plus, bakingSensor, coolStart, one pair level independent telescopic rails.
- HS958GED1B: multifunction, browning detection by camera, fullSteam, steam boost, 24 individual and combination functions, Sous Vide, TFT touchDisplay Pro, softMove, roastingSensor Plus, bakingSensor, coolStart, one pair level independent telescopic rails, fixed water connection.
General information
Color | Black |
Material | Glass Steel |
Shape | Square |
Length | 548 mm |
Width | 594 mm |
Height | 595 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N12/330 Cooking equipment N11/360 Appliances N11/40 Appliances N12/330 Cooking equipment |
Specification data - Built-in electric ovens
Arrangement | Single oven. |
Material and finish | Black-coated steel. |
Dimensions | |
Height (maximum) | 595 mm. |
Width (maximum) | 594 mm. |
Depth (maximum) | 548 mm. |
Capacity (minimum) | 71 L – single oven. |
Shelving | Five shelf positions. |
Doors | Full glass inner door. |
Features | Oven assistant with voice control. |
Rating | 3.6 kW. |
Electrical supply | 220–240 V. |
EU energy label rating (minimum) | A+. |
Fuse rating | 16 A. |
Frequency | 50; 60 Hz. |
Operating temperature range | 30°C to 250°C. |
Cable length | 120 cm. Manufacturer guidanceLength electrical supply cord. |
Functions | 24 heating methods. Guidance for specification option: Conventional top and bottom heating, full width grill, half width grill, coolStart, bottom heat, intensive conventional heat, low temperature cooking, keep warm, dehydrate, plate warming, conventional heat gentle, steam, reheating with steam, dough proving, defrost, sous-vide cooking, hot air grilling, warming, 4D hot air, top/bottom heat. |
Integral accessories | 2 x grid, universal pan, steam container (punched - size XL), sponge, steam container (punched - size M), steam container (unpunched - size M). |
Accessories | Not required. HZ915003: Glass roasting dish 5.4 L. HZ6BMA00: Assemblykit for vertical installation. HZ66X650: Cover Strip. HZ66D52. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
iQ700, Built-in oven with steam function, 60 x 60 cm, Black HS958KDB1
iQ700, Built-in oven with steam function, 60 x 60 cm, Black HS958GED1B
