Sink Bowl LE34 - Rectangular Stainless Steel Kitchen Sink
Verified by manufacturer 16 days ago
Single stainless steel sink bowl.
Application
For incorporating in a stainless steel worktop.
Suitable for:
Worktops
Kitchens
Commercial Projects
Sinktops
Combination Bowl
Sink With Drainer
Description
Single stainless steel sink bowl for incorporating in a stainless steel worktop.
Features and benefits:
- Available with a flat flange for under-mount or a 50 mm beveled flange for inset fixing.

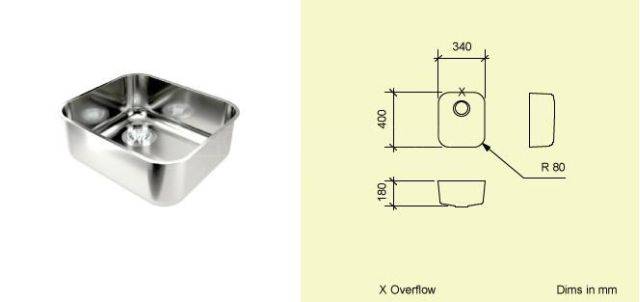

- Internal bowl size (L x W x D): 340 x 400 x 180 mm.
- Features a 80 mm corner radius.
- EN 1.4301 brushed satin stainless steel.
- 89 mm diameter hole with basket strainer waste and overflow, with option for 38 mm diameter waste, plug and chain.
- Overflow as standard, with option for no overflow.
General information
Color | Silver |
Finish | Brushed Satin |
Material | Stainless steel Steel Plastic |
Shape | Rectangle |
Length | 340 mm |
Width | 400 mm |
Height | 180 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/331 Sinks N13/25 Sinks |
Product range |
Specification data - Sinks
Standard | To BS EN 274-1, 2 and 3. |
Form | Under-mounted.Guidance for specification option: Flat flange required. Inset.Guidance for specification option: Beveled flange required. |
Bowls | One. |
Drainers | None. |
Materials | |
Body | BS EN 1.4301 stainless steel type EN 1.4301.Guidance for specification option: L x W x D. Manufacturer guidanceNon-standard sizes available to order, insert requirement. |
Finish and colour | Brushed satin. |
Size | 340 x 400 x 180 mm.Guidance for specification option: L x W x D. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Overflow | Overflow hole.Guidance for specification option: Standard. Combined chainstay and overflow hole.Guidance for specification option: With plug-waste option. |
Waste | Centre, 89 mm Ø with BSW, plastic and stainless steel.Guidance for specification option: As standard. Centre, 38 mm Ø with plug-waste, plastic.Guidance for specification option: Optional. Manufacturer guidanceBSW: Basket strainer waste. |
Flange | Not required. 50 mm beveled flange. Guidance for specification option: For insetting. 14 mm flat flange. Guidance for specification option: For under-mounting. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Literature

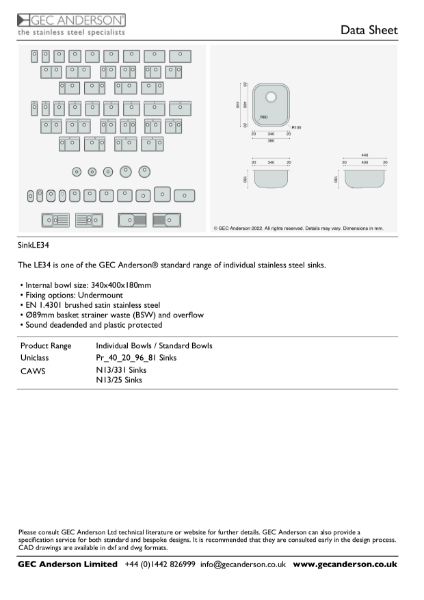

GEC Anderson Data Sheet - Sink Bowl: LE34
