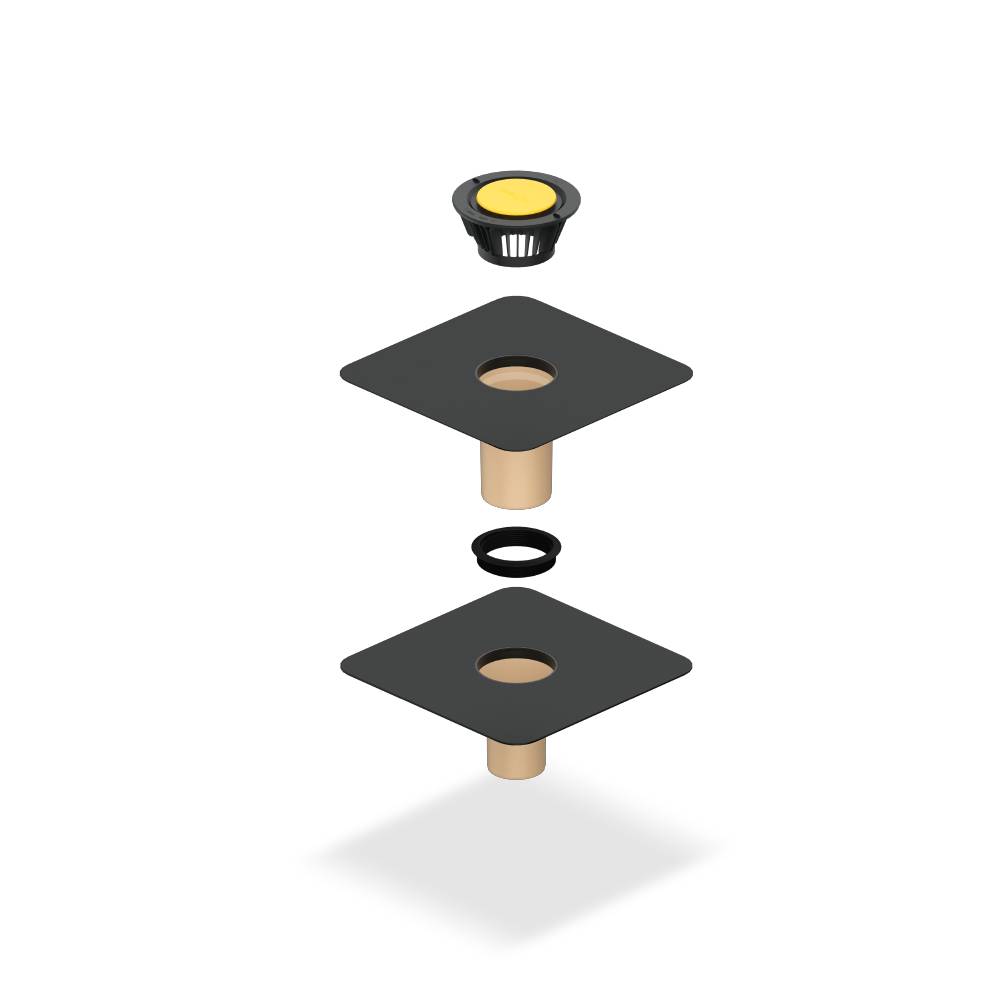

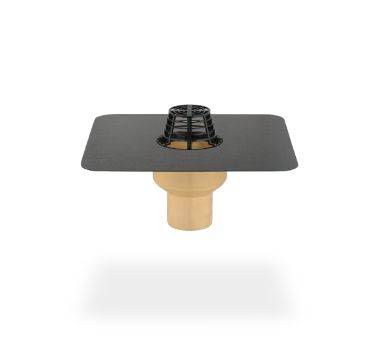

Range of small, strong, flexible thermally insulated roof outlets with bodies made of rigid polyurethane integral foam.
For main and emergency drainage to DIN EN 12056-3 and DIN 1986-100 for large used and unused flat roofs.
Range of small, strong, flexible thermally insulated roof outlets with bodies made of rigid polyurethane integral foam.
Features and benefits:
Color | Black Beige |
Material | Polyurethane (PUR) Bitumen PVC Thermoplastic polyolefin (TPO) Thermoplastic elastomer (TPE) |
Shape | Circle Square |
Warranty description | Six year |
Uniclass | |
CAWS | R10/26 Proprietary rainwater outlets R10/365 Proprietary rainwater outlets |
Roof construction | |
Form | Guidance for specification option: Insert details. |
Roof insulation thickness | Guidance for specification option: Insert details. Outlet is suitable for bridging all insulation thicknesses from 60 to 520 mm. |
Material | Body: Rigid polyurethane integral foam. |
Grating | Domed. |
Spigots | DN70, outer diameter 75 mm.Guidance for specification option: Pipe connection length: 63 mm. DN90, outer diameter 90 mm.Guidance for specification option: Pipe connection length: 56 mm. DN100, outer diameter 110 mm.Guidance for specification option: Pipe connection length: 75 mm. DN125, outer diameter 125 mm.Guidance for specification option: Pipe connection length: 79 mm. Manufacturer guidanceOpening/ core borehole: 250 mm. Consult manufacturer's literature for full details. |
Integral accessories | Bitumen sleeve 495 x 495 mm. |
Orientation | Vertical. |
Standard | For main and emergency drainage to DIN EN 12056-3 and DIN 1986-100 for large used and unused flat roofs. |
Accessories | Guidance for specification option: Consult manufacturer for options and insert requirements, or omit. |
Reaction to fire | Euroclass E/ B2 normal flammability. |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Polyurethane (PUR) Bitumen PVC Thermoplastic polyolefin (TPO) Thermoplastic elastomer (TPE) |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 13.4 kg CO₂ eq/unit |
