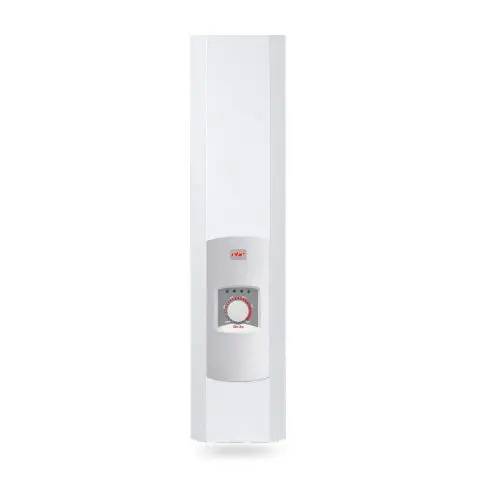

SlimJim Electric Boilers - Electric Flow Boiler

Verified by manufacturer 7 months ago

4 kW - EHCSJIM4KW

Electric Heating Co Ltd Variant:
Third party certifications:
  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

Multi-purpose boiler for use where space is at a premium.

Jump to:
+44 (0)1698 820533 Website

Application

  • Suitable for heating applications where space is at a premium.
  • Traditionally installed in properties such as apartments, domestic dwellings, holiday homes and light commercial properties.
  • Suitable for central heating only or central heating and hot water when installed with a hot water cylinder.
  • Suitable for underfloor heating.

Description

The compact design of the SlimJim Electric Boiler makes it particularly suitable for heating applications where space is at a premium. The single-phase boilers are available in five outputs, 4 kW, 7 kW, 10 kW, 12 kW and 14.4 kW, which is suitable for properties that require larger outputs.


The SlimJim is a fully controllable electric flow boiler which is 100% efficient and designed to maximise cupboard space. It has an easy-fit cover for future maintenance purposes and a user-friendly front control panel incorporating heat mode and fault finding indicators and easy-to-use temperature control setting.


Features and benefits:

  • Outputs from 4 kW to 14.4 kW.
  • 100% efficient.
  • Virtually silent in operation.
  • Six stage heating.
  • Fully insulated stainless steel heat exchanger to minimise heat loss.
  • Volt-free control connections.
  • Integral system diagnostics.
  • Easy-fit connectors and sensors.
  • In-built fault finding diagnostics.
  • High temperature thermal cut-out.
  • Vortex flow temperature sensor.
  • Digital pressure gauge.
  • Five year warranty.



Revolutionise your home heating with our state-of-the-art Electric Boilers and Combi Boilers, offering sustainable solutions for efficient central heating. Our diverse range encompasses Electric Heating systems, providing reliable warmth for your space. Whether you're in the UK or beyond, our Central Heating Boilers, including Electric Water Boilers, guarantee a seamless and eco-friendly heating experience. Explore the innovation of Electric Combi Boilers, ensuring both versatility and sustainability. With our commitment to sustainable heating practices, we deliver a range of Boilers that prioritise energy efficiency. Elevate your comfort and environmental consciousness with our advanced Electric Boilers, redefining the future of home heating.

General information

Color

White

Finish

Gloss

Material

Stainless steel

Shape

Rectangle

Length

172 mm

Width

203 mm

Height

912 mm

Warranty description

Five year

Guidance for specification option:

Terms and conditions apply; consult manufacturer for details.

Uniclass

Pr_60_60_08_27 Electric boilersPrimary

CAWS

T90/322 Boilers, electric

Specification data - Electric boilers

Boiler type

Electric flow.

Output

4 kW.

Energy efficiency rating

D.

Mounting

Wall-mounted.

Operating pressure

0.5 bar (minimum); 3.0 bar (maximum).

Operating temperature

30℃ (minimum); 80℃ (maximum).

Heat exchanger

Stainless steel.

Electrical supply type

Single-phase.

Guidance for specification option:

240 V, 1 ph, 50 Hz.

Accessories

Not required.

Single channel programmer - EC10001.

Twin channel programmer - EC10002.

Room thermostat - EC100012.

'S' plan twin channel heat pack - EC10011.

Supreme saver hot water programmer - E10SS/7.

Shower flow sensor - ESFS15/C.

Single Boiler Pack - ECLCSCHP.

Guidance for specification option:

Designed to accompany the SlimJim Flow Boiler to achieve a heat only system installation.

Twin Boiler Pack - ECLCTCHP.

Guidance for specification option:

Designed to accompany the SlimJim Flow Boiler to achieve a heat and hot water (S-Plan) system installation.

Dimensions

912 x 203 x 172 mm.

Manufacturer guidance

Overall height x width x depth.

Weight

11 kg.

Pipes

22 mm.

Manufacturer guidance

Flow and return pipes.

Ingress protection (IP) rating

IP 22.

Current

17 Amp.

Manufacturer guidance

Load/ Current.

Output

13648 Btu.

Manufacturer guidance

Heating output.

Diameter

6 mm.

Manufacturer guidance

Recommended diameter of mains cable.

Protection

20 Amp.

Sustainability data

Contains Red List materials

No

Country of material origin

Poland

Country of product manufacture

Poland

Recyclability

YES

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Third party certifications

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

UKCA SLIM JIM ELECTRIC FLOW BOILER
