SMART Frameless Glass Balustrade
Verified by manufacturer 5 months ago

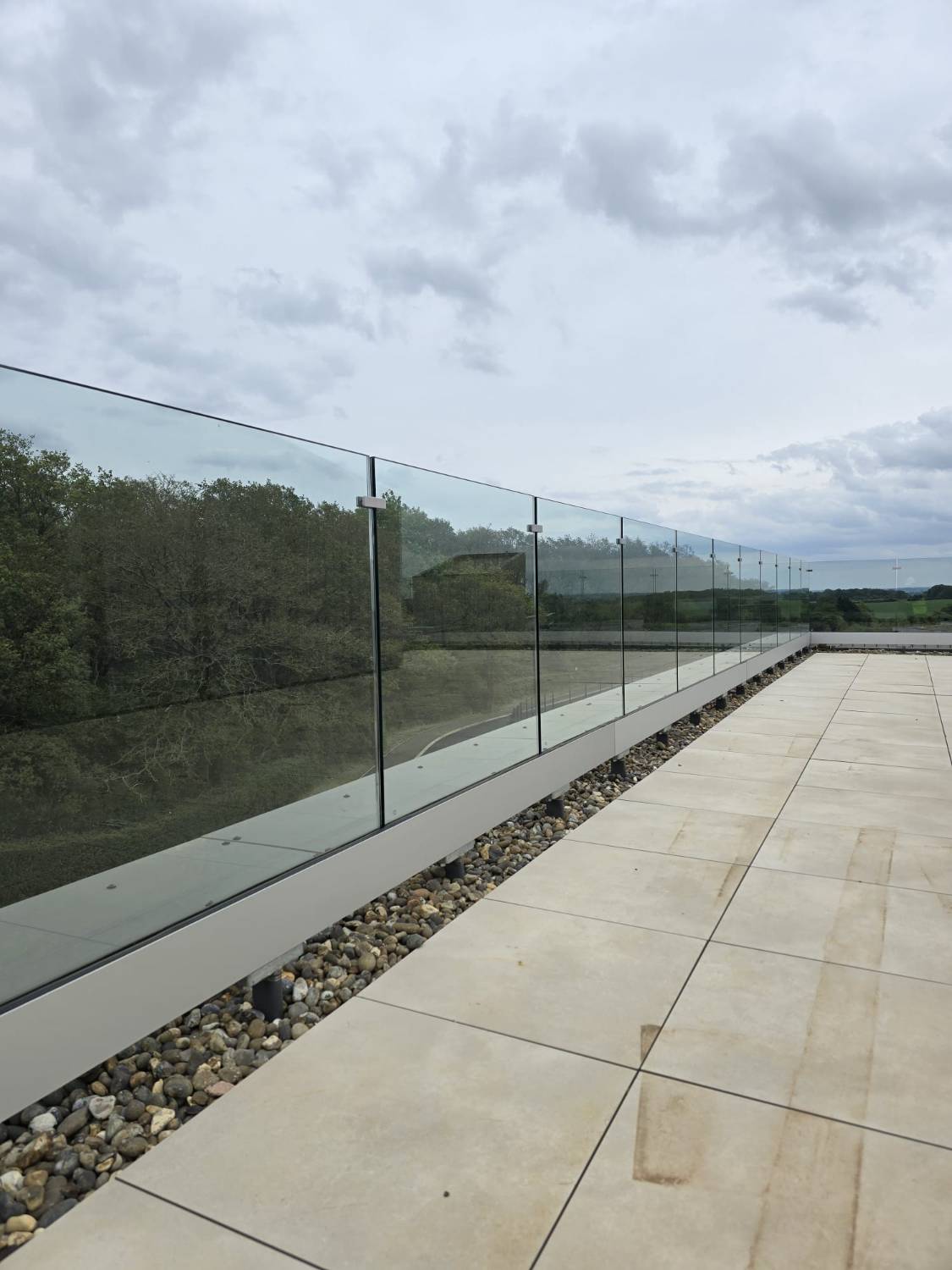

Top fixed balustrade with a U profile channel
Top fixed balustrade with a U profile channel
Health & Safety Accreditation
Certificate type
Constructionline
Certificate type
Constructionline Gold
Certificate type
A range of frameless glass balustrade systems.
Application
- Suitable for stairs, balconies, terraces and ramps.
- For external or internal use.
- Commercial or residential properties.
Description

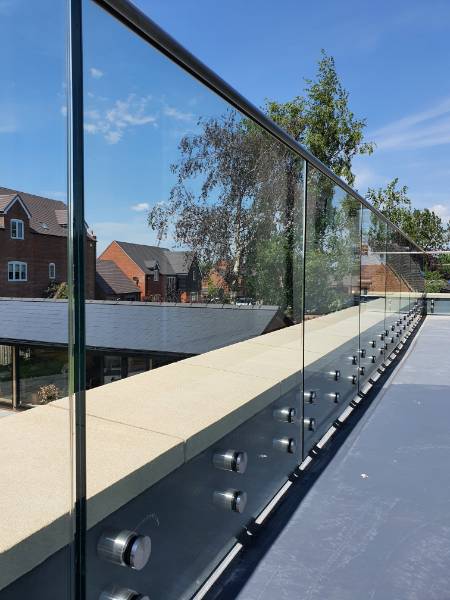

A range of frameless glass balustrade systems. Variants include top or side fixed aluminium channels, bolt-through stainless steel adapters, and an insulated roof bracket system.
Features and benefits:
- Available in a range of fixing options.
- Toughened laminated glass infill panels.
- Quick and easy to install
- Custom designs available
General information
Color | Clear Grey Guidance for specification option: Anodized or Powder Coated Bronze Guidance for specification option: Anodized or Powder Coated Black Guidance for specification option: Anodized or Powder Coated White Guidance for specification option: Anodized or Powder Coated |
Finish | Anodized Powder-coated Mirrored Satin |
Material | Glass Aluminium Stainless steel |
Shape | Circle Rectangle Other Guidance for specification option: Curved or Bespoke |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | L30/560 Proprietary balustrades L30/55 Proprietary balustrades |
Specification data - Balustrade and guarding systems
System performance | Loading requirements: 0.74 kN (17.5 mm glass) horizontal line load measured at 1100 mm above FFL with less than 25 mm deflection. 1.5 kN (21.5 mm glass) horizontal line load measured at 1100 mm above FFL with less than 25 mm deflection. 3.0 kN (25.5 mm sentry glass) horizontal line load measured at 1100 mm above FFL with less than 25 mm deflection. |
Infills | 17.5 mm thick toughened laminated float glass to EN 12150 with flat polished edges and dubbed corners.21.5 mm thick toughened laminated float glass to EN 12150 with flat polished edges and dubbed corners.25.5 mm thick toughened laminated float glass to EN 12150 with flat polished edges and dubbed corners. |
Rails | |
Handrails | Not required. |
Fixing to parent structure | Through bolts or chemical anchors.Guidance for specification option: For fixing to concrete. M10 nut and bolt or drill and tap.Guidance for specification option: For fixing to steel. Drill and tap only if steel is thick enough. Manufacturer guidanceFixing to timber is not recommended. All of the manufacturer's test data is based on fixing to concrete or steel. Fixing sizes and spacings will depend on the loading requirements and height of the balustrade. |
Fixing | Glass: Adjustable wedge system to continuous track. |
Base channel | U profile anodized aluminium extruded base track. |
Glass colour | Clear. Low iron, extra clear. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Glass Aluminium Stainless steel |
Recyclability | all materials are widely recycled |
Third party certifications
Health & Safety Accreditation
Acclaim Accreditation SSIP
Health & Safety Accreditation
DEEM TO SATISFY - Principal Contractor
Constructionline
Social Value
Constructionline Gold
Constructionline Gold
Literature
SMART face fixed structural glass test report
SMART top fixed structural glass test report
SMART Sentry Glass Data Sheet
