Smokemaster SM-ST Fixed Smoke Curtain
Verified by manufacturer 5 months ago
DH60
DH60

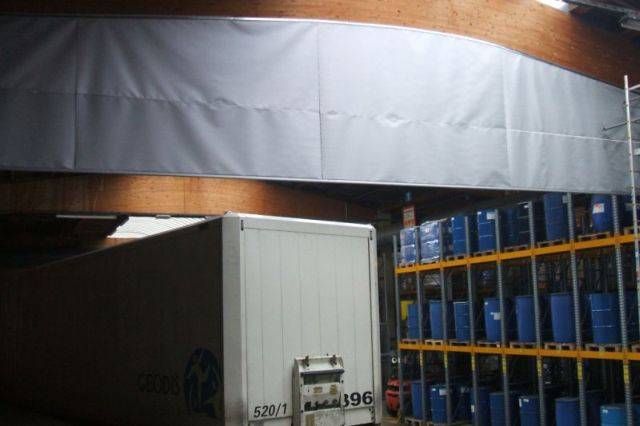

Fixed smoke curtain, preventing the movement of smoke and heat from one area to another in a fire by channelling or containing the smoke and heat.
Application
Provision of smoke and heat protection for most kinds of industrial and commercial buildings.
Description
Fixed smoke curtain, preventing the movement of smoke and heat from one area to another in a fire by channelling or containing the smoke and heat.
Consists of a fabric material which is held within a series of angle pieces and thereby clamped. At the bottom of the cloth there is a weight, ensuring that the curtain remains taut and reduces the amount of deflection through air currents.
Features and benefits:
- High performance - Designed to withstand hot air and smoke at temperatures up to 600⁰C for up to 120 minutes once only.
- The complete product has been successfully tested and certified to EN 12101-1 in accredited third-party test laboratories.
- CE marked.
- Achieves a rating of D120.
- The fabric has been tested to EN 13501-1.
- Pre-order design service available.
General information
Material | Glass Fibre |
Shape | Rectangle |
Uniclass |
Product range |
Specification data - Static smoke barriers
Standard | To BS EN 12101-1. |
Third-party certification | EU certificate 0672-CPD-0206. General building approval (AbZ) no. 56-4211-949. |
Classification categories | |
Standard temperature | D 60.Guidance for specification option: Tested for 60 minutes to the time-temperature curve defined in EN 1363-1:2012. Fabric class is A2-s1, d0 according to EN 13501-1. |
Form | Flexible, 690 g/m².Guidance for specification option: The fabric comprises a satin weave fibreglass fabric with a silver polyurethane coating on both sides providing an excellent reflection of heat. Includes a woven stainless steel reinforcement. |
Dimensions | Manufacturer guidanceInsert requirements.
|
