SN293-WL-280B Stair nosing anti-slip - Anti-Slip Stair Nosings
Verified by manufacturer 18 days ago
SN293-WL-280B - Gunmetal
SN293-WL-280B - Gunmetal
London Underground
Certificate type
Anti-slip stair nosing. Cast Metal.
Application
- Rail and light rail.
- Underground rail.
- Transport terminals.
- AFA bridges.
- Commercial developments.
- Stadiums.
- Deep tube approved.
- Stair nosing (high or low footfall).
Description

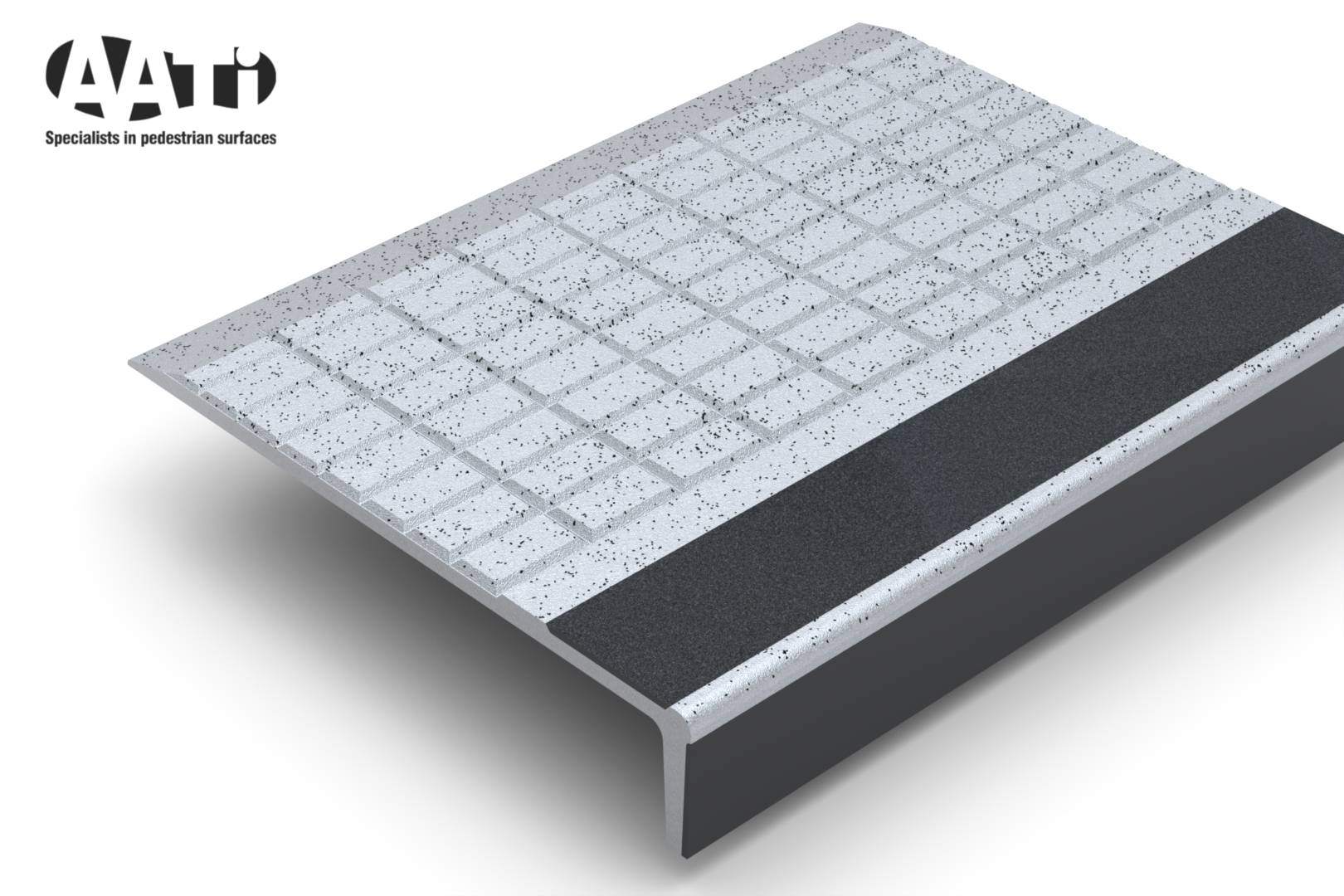

SN293/WL/280B® - Wideline™ is a cast metal anti-slip stair nosing (including bevelled back edge) with silicon carbide granules cast into the metal matrix of the wearing surface. The front edge is defined by a continuous coloured abrasive insert and a continuous coloured line along the riser face. Wideline™ is suitable for heavily used public stairways requiring high anti-slip and anti-wear performance.
Features and benefits:
- Complies with DFT, BS 8300 and Building Regulations Document M and K.
- Distinctive bevelled back edge.
- Cost-effective, long-term installation.
- High performance in wet and dry conditions.
General information
Color | Beige Guidance for specification option: Nickel Bronze. Copper Guidance for specification option: Gunmetal. Silver Guidance for specification option: Aluminium. |
Finish | Natural |
Material | Aluminium Gunmetal Nickel bronze |
Shape | Rectangle |
Length | Bespoke |
Width | 280 mm |
Height | 55 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | L30/590 Applied stair nosings |
Specification data - Rigid stair nosings
Profile | Square. |
Base section | |
Material | Gunmetal. |
Finish | Copper. |
Size | |
Rise x going | 55 x 280 mm. |
Gauge | 9 mm. |
Inserts | |
Material | Cast metal with silicon carbide granules. |
Colour | Manufacturer guidanceInsert colour requirement. Black as standard, but other colours within the RAL and the NCS ranges are available. |
Length | Guidance for specification option: Insert requirements. Maximum: 1900 mm in aluminium and 1400 mm in nickel bronze or gunmetal. Longer lengths will be provided in multiple sections. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % |
Third party certifications
London Underground

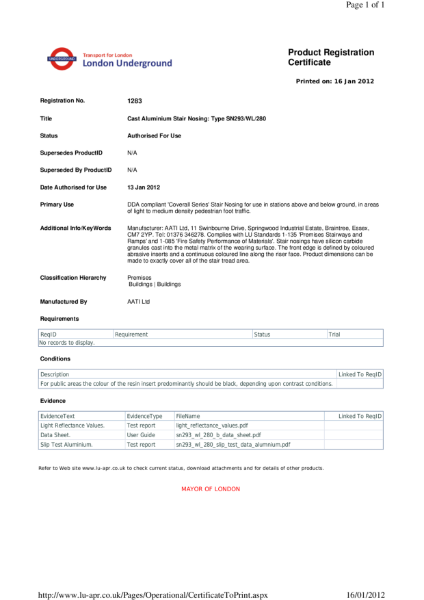

AATi certificate for product ref SN293 WL 280
Literature
SN293-WL-280b Data Sheet

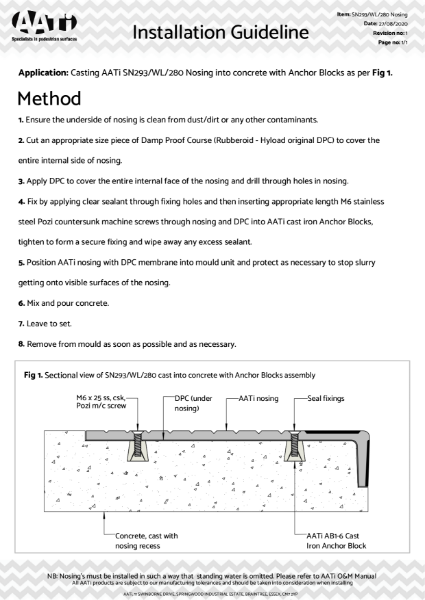

installation_guideline_sn293_WL_280_concrete_castin_anchorblock
installation_guideline_sn293_wl_280_concrete_rawlnut_m6cskmachine Rev.6
installation_guideline_sn293_wl_280_concrete_retro_woodscrew Rev.4
installation_guideline_sn293_wl_280_steel_rawlnut_m6cskmachine
