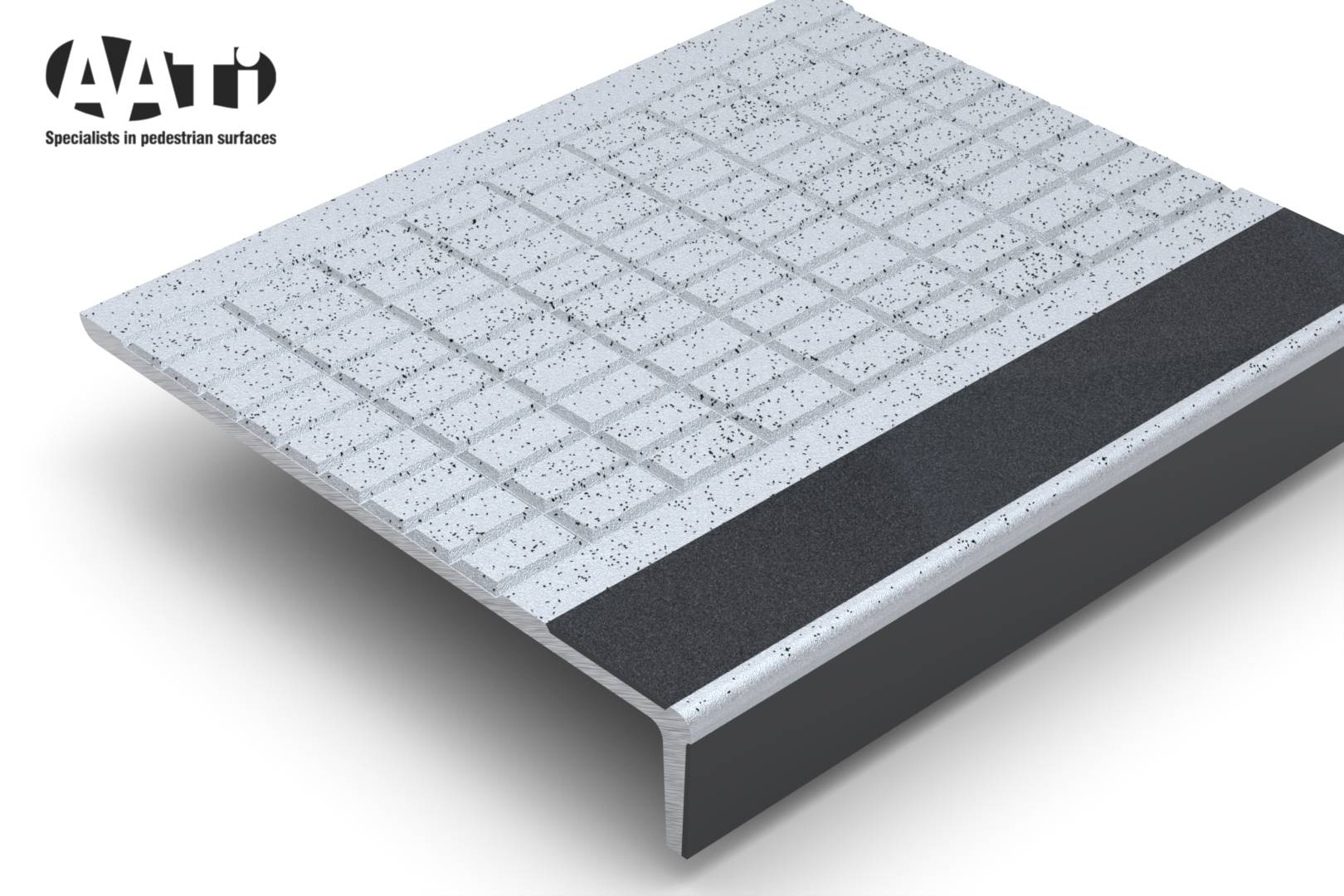

SN293-WL-307UR - Aluminium
Anti-slip stair nosing. Cast metal.
SN293/WL/307UR® - Wideline™ is a cast metal anti-slip stair nosing with silicon carbide granules cast into the metal matrix of the wearing surface. The front edge is defined by a continuous coloured abrasive insert and a continuous coloured line along the riser face. Wideline™ is suitable for heavily used public stairways requiring high performance, extended life stair nosings.
Features and benefits:
Color | Beige Guidance for specification option: Nickel Bronze. Copper Guidance for specification option: Gunmetal. Silver Guidance for specification option: Aluminium. |
Finish | Natural |
Material | Aluminium Gunmetal Nickel bronze |
Shape | Rectangle |
Length | Bespoke |
Width | 307 mm |
Height | 55 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | L30/590 Applied stair nosings |
Profile | Square. |
Base section | |
Material | Aluminium. |
Finish | Silver. |
Size | |
Rise x going | 55 x 307 mm. |
Gauge | 9 mm. |
Inserts | |
Material | MMA resin. |
Colour | Manufacturer guidanceInsert requirements. Black as standard, but other colours within the RAL and the NCS ranges are available. |
Length | Guidance for specification option: Stair nosings can be produced to suit any stair width. Individual profiles can be made up to 1900 mm in cast aluminium and 1400 mm in nickel bronze and gunmetal. Longer lengths will be provided in multiple sections. Insert requirements. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % |
SN293-WL-307-UR Data Sheet
installation_guideline_sn293_WL_307ur_concrete_castin_anchorblock Rev.2
installation_guideline_sn293_wl_307ur_concrete_rawlnut_m6cskmachine Rev.4
installation_guideline_sn293_wl_307ur_concrete_retro_woodscrew Rev.4
installation_guideline_sn293_wl_307ur_steel_rawlnut_m6cskmachine Rev.5
recess_detail_sn293_wl_307ur_concrete
