SN93-SL3-140 Stair nosing anti-slip - Anti-Slip Stair Nosings
Verified by manufacturer 18 days ago
SN93-SL3-140 - Gunmetal
SN93-SL3-140 - Gunmetal
London Underground
Certificate type
Anti-slip stair nosing. Cast metal.
Application
- Rail and light rail.
- Underground rail.
- Network Rail AFA Footbridges
- Transport terminals.
- DDA products.
- Deep tube approved.
- Stair nosing (high or low footfall).
Description

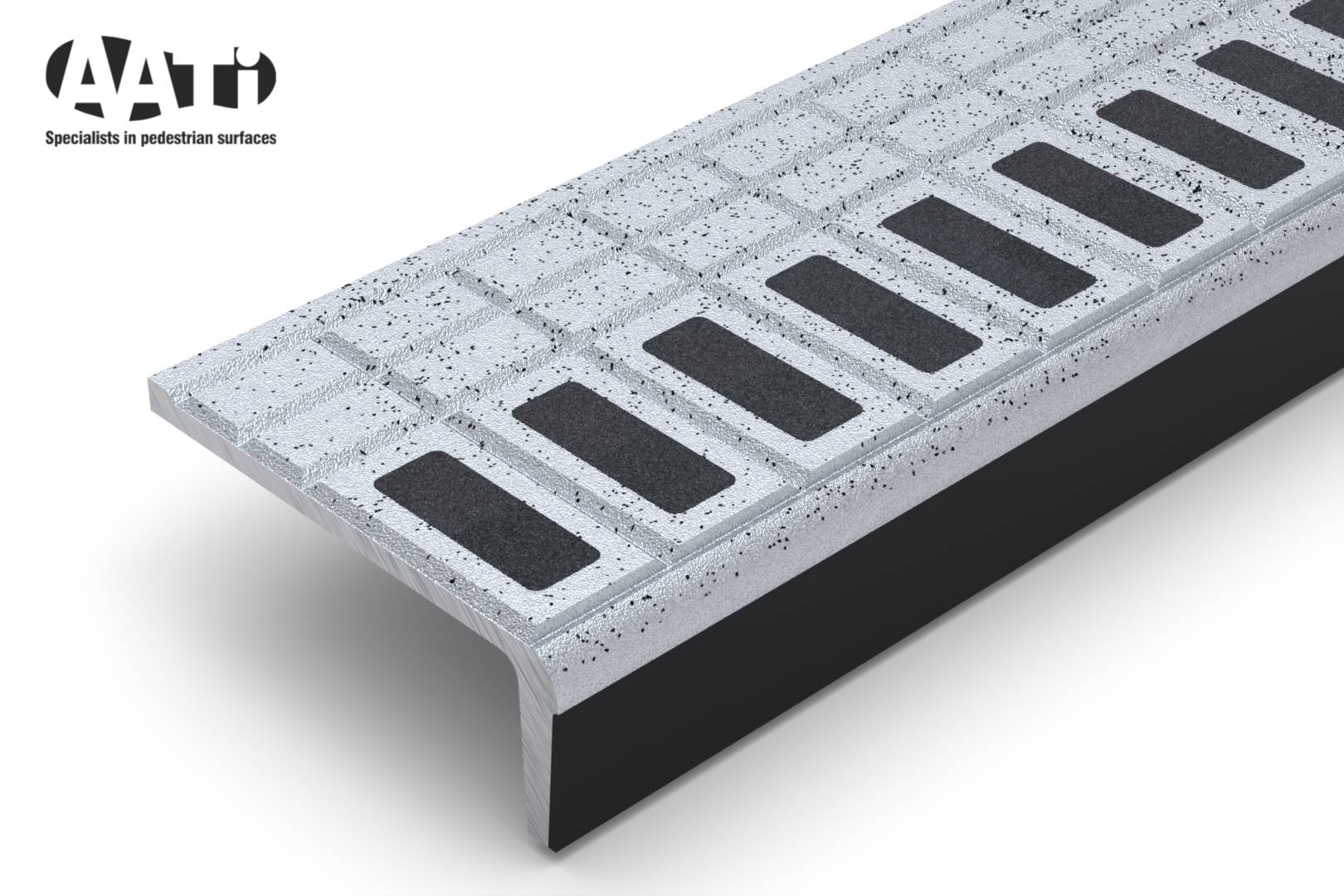

SN93/SL3/140® - Sightline™ is a cast metal anti-slip stair nosing with silicon carbide granules cast into the metal matrix of the wearing surface. The front edge is defined by coloured abrasive inserts and a continuous coloured line along the riser face. Sightline™ is suitable for heavily used public stairways requiring high performance, extended life stair nosings.
Features and benefits:
- Complies with the spirit of BS 8300 and Building Regulations Document M and K.
- London Underground Approved.
- Cost-effective, long-term installation.
- High performance in wet and dry conditions.
General information
Color | Beige Guidance for specification option: Nickel Bronze. Copper Guidance for specification option: Gunmetal. Silver Guidance for specification option: Aluminium. |
Finish | Natural |
Material | Aluminium Gunmetal Nickel bronze |
Shape | Rectangle |
Length | Bespoke |
Width | 140 mm |
Height | 55 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | L30/590 Applied stair nosings |
Specification data - Rigid stair nosings
Profile | Square. |
Base section | |
Material | Gunmetal. |
Finish | Copper. |
Size | |
Rise x going | 55 x 140 mm. |
Gauge | 9 mm. |
Inserts | |
Material | Cast metal with silicon carbide granules. |
Colour | Manufacturer guidanceInsert requirements. Black as standard, but other colours within the RAL and the NCS ranges are available. |
Length | Guidance for specification option: Stair nosings can be produced to suit any stair width. Individual profiles can be made up to 1900 mm in cast aluminium, nickel bronze and gunmetal. Longer lengths will be provided in multiple sections. Insert requirements. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % |
Third party certifications
London Underground

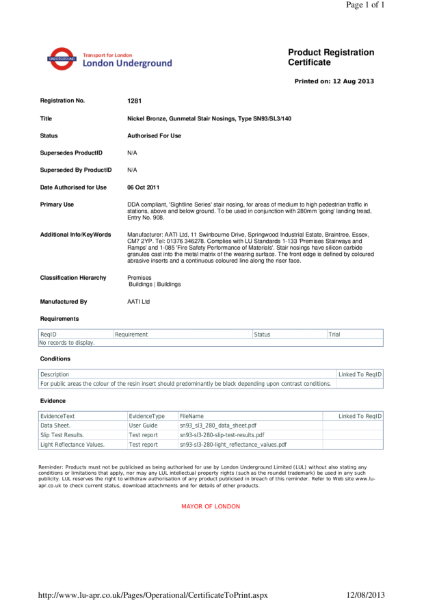

AATi certificate for product ref SN93 SL3 140
Literature
SN93-SL3-140 Data Sheet
installation_guideline_sn93_SL3_140_concrete_castin_anchorblock Rev.6
installation_guideline_sn93_sl3_140_concrete_rawlnut_m6cskmachine Rev.4
installation_guideline_sn93_sl3_140_concrete_retro_woodscrew Rev.4
installation_guideline_sn93_sl3_140_steel_rawlnut_m6machine Rev.3
recess_detail_sn93_sl3_140_concrete Rev.2
Case studies
Stratford Station

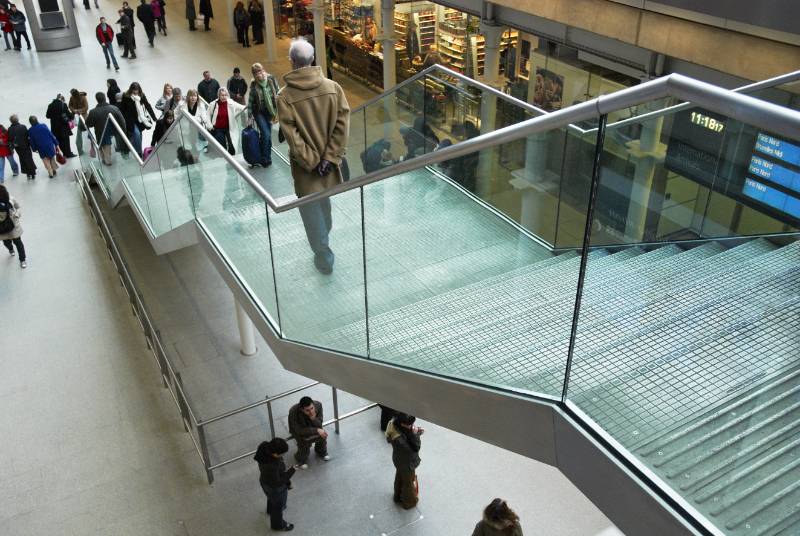

King's Cross St. Pancras

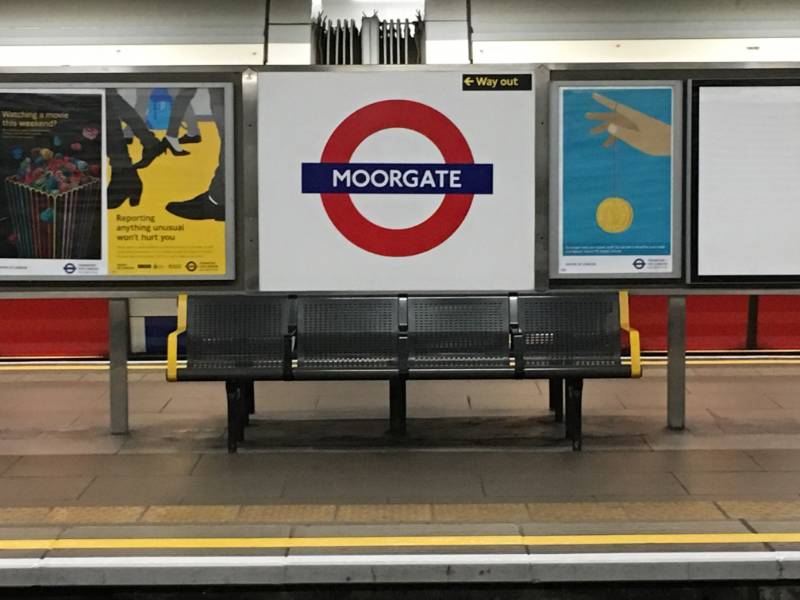

Moorgate Station
Liverpool Street Station
Tottenham Court Road Station

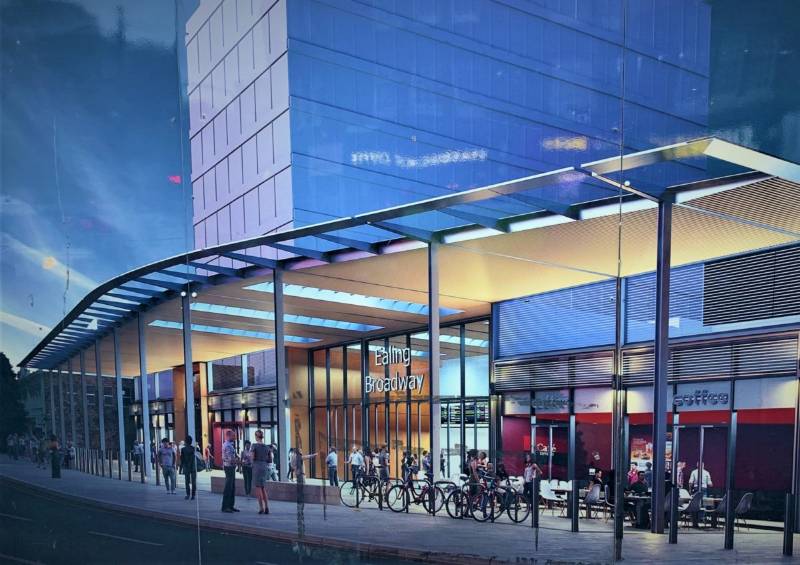

Crossrail outer west stations: West Ealing, Ealing Broadway & Acton Mainline
Tottenham Hale Station
