Sola Infrared Spout, Round
Verified by manufacturer over a year ago

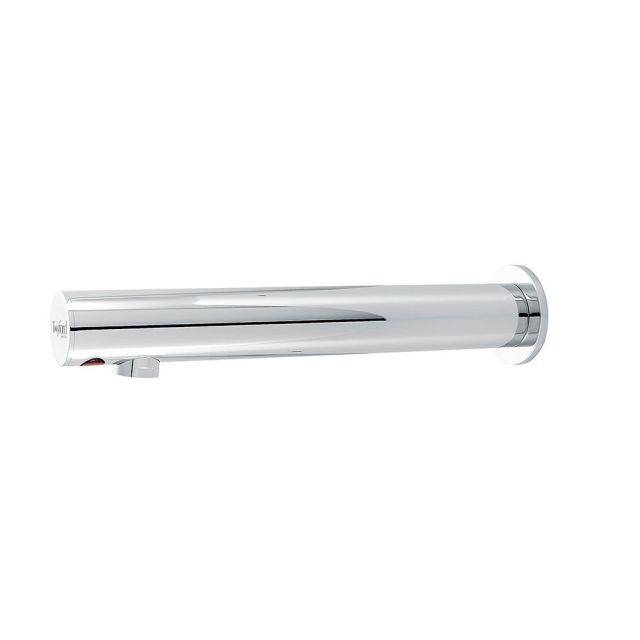

Round infrared spout.
Application
Suitable for the following sectors:
- Hotels and leisure.
- Healthcare.
- Commercial.
Description
Wall-mounted, round infrared spout.
Features and benefits:
- Sensor situated on underside of tap for hygienic, non-touch operation.
- TMV2 and TMV3 approved when installed with SF1037XX (Thermostatic mixing valve 15 mm).
- Automatically stops after 70 seconds.
- Can be battery or mains powered.
- BREEAM compliant.
General information
Color | Silver |
Finish | Chrome |
Material | Brass |
Width | 32 mm |
Height | 50 mm |
Uniclass | |
CAWS | N12/380 Sinks, taps, traps and wastes N12/380 Sinks, taps, traps and wastes N11/350 Sinks, taps, traps and wastes N13/30 Washbasins N13/335 Washbasins |
Product range |
Specification data - Sink thermostatic water supply sets
Form | Wall-mounted spout tap. |
Materials | |
Body | Brass. |
Finish and colour | Chrome plated. |
Flow rate (maximum) | 3.8 L/ min at 3 bar. |
Integral accessories | Not required.Required, SF1037XX, Thermostatic mixing valve 15 mm. |
Operating pressure (maximum) | 5 bar. |
Operation | Sensor. Guidance for specification option: Sensor situated on underside of tap for hygienic, non-touch operation. |
Depth | 232 mm. |
Spout height | 32 mm. |
Total height | 50 mm. |
Power supply | 220-240V AC, 50 Hz, 0.2 A. |
