NBS Source
I'm a manufacturer

Application

Suitable for the following sectors:

  • Hotels and leisure.
  • Healthcare.
  • Commercial.


Description

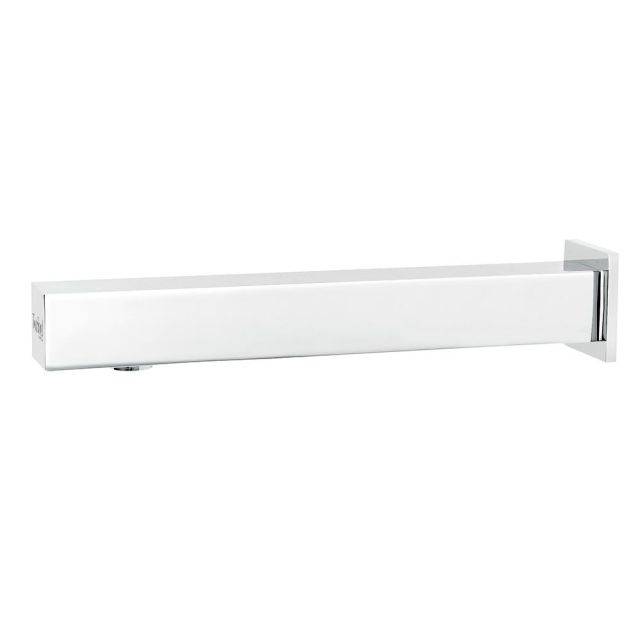

Wall-mounted, square infrared spout.


Features and benefits:

  • Sensor situated on underside of tap for hygienic, non-touch operation.
  • TMV2 and TMV3 approved when installed with SF1037XX (Thermostatic mixing valve, 15 mm).
  • Automatically stops after 70 seconds.
  • Can be battery or mains powered.
  • BREEAM compliant.

General information

Color

Silver

Finish

Chrome

Material

Brass

Width

32 mm

Height

50 mm

Uniclass

Pr_40_20_87_85 Sink thermostatic water supply setsPrimary

CAWS

N12/380 Sinks, taps, traps and wastes

N12/380 Sinks, taps, traps and wastes

N11/350 Sinks, taps, traps and wastes

N13/30 Washbasins

N13/335 Washbasins

Product range

Water supply fittings

Specification data - Sink thermostatic water supply sets

Form

Wall-mounted spout.

Materials

-

Body

Brass.

Finish and colour

Chrome plated.

Flow rate (maximum)

3.8 L/ min at 3 bar.

Thermostatic mixing valve

Not required.

Required, SF1037XX, Thermostatic mixing valve 15 mm.

Operating pressure (maximum)

5 bar.

Operation

Sensor.

Guidance for specification option:

Sensor situated on underside of tap for hygienic, non-touch operation.

Depth

250 mm.

Spout height

32 mm.

Total height

50 mm.

Power supply

220-240V AC, 50 Hz, 0.2 A.
