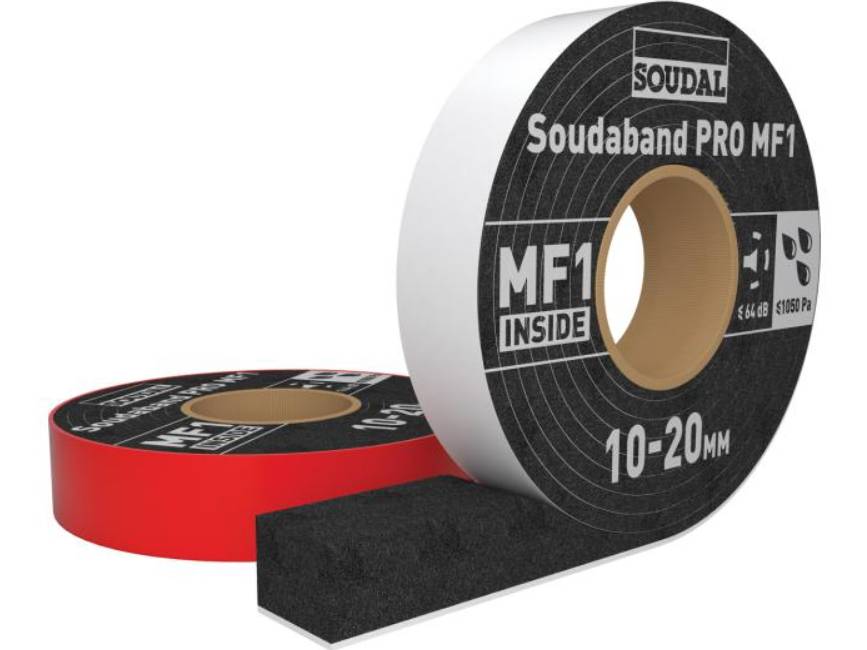

Pre-compressed polyurethane sealant and insulation tape.
Soudaband PRO MF1 is a multi-functional pre-compressed joint sealing tape, that meets the DIN 18542:2020 class MF1 requirements. This all-in-one joint sealing tape performs all three levels of the SWS professional joint sealing system in one single product: driving rain tightness on the outside, thermal and acoustic insulation in the middle and airtightness on the inside of the joint.
Soudaband PRO MF1 ensures a durable, long-lasting seal for external joinery on multiple levels. Suitable for so-called tunnel installations such as in solid walls or timber frame constructions, as for pre-wall installations where the window is installed outside the load-bearing wall using a pre-frame, like SoudaFrame SWI.
Features and benefits:
Color | Black |
Material | Polyurethane (PUR) |
Shape | Other Guidance for specification option: Roll. |
Uniclass | |
CAWS | H43/160 Profiled plastics sheet H31/160 Profiled plastics sheet H43/10 Metal insulating sandwich panel H43/120 Metal insulating sandwich panel H31/10 Metal H31/120 Metal H11/110 Curtain walling H11/772 Curtain walling joint assembly sealants L20/80 Sealant joints L20/820 Sealant joints L10/810 Sealant joints L10/75 Sealant joints |
Material | Impregnated open cell polyurethane foam. |
Bond | Self-adhesive backing. |
Fire performance | |
Reaction to fire | To DIN 4102, B1. |
Air permeability | Air and water vapour tight. |
Size | 20 mm wide. |
Colour | Black. |
Classification | To DIN 18542:2020, MF1. |
Air permeability | To EN 12114, a ≤0.1 m³/[h.m.(daPa)n]. |
WaterImpermeability | To EN 1027, ≥1050 Pa. |
Thermal conductivity (to EN 12667) | To EN 12667, ≤0.052 W/m.K. |
Water vapour permeability | To EN ISO 12572, ≤0.5 m at 20 mm width. |
Water vapour diffusion resistance | To EN ISO 12572, ≤100 µ. |
Temperature resistance | To DIN 18542, -20°C to 80°C. |
Application temperature | -5°C to 40°C. |
Material | Polyurethane (PUR) |
