Soundblocker - Acoustic suspended ceiling insulation

Verified by manufacturer 4 days ago

Soundblocker office and classroom

Sound Reduction Systems Ltd Variant:
Third party certifications:
  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

Acoustic suspended ceiling insulation

Jump to:
+44 (0)1204 380074 Website

Application

Suitable for all types of suspended ceilings.


Soundblocker Private office is ideal for any environment where noise transfer through suspended ceilings or over the top of partitions could compromise personal and sensitive information.


Soundblocker confidentiality is ideal for any environment where noise transfer through suspended ceilings or over the top of partitions could compromise very personal and

highly sensitive information.


Soundblocker entertainment range is ideal for any environment where extreme noise breakout through roofs or suspended ceilings creates a serious environmental problem. Nightclubs and cinemas must eliminate the breakout of sound through the structure, whilst in addition cinemas must also stop the ingress of sound.

Description

Acoustic insulation to help reduce the breakout of sound via suspended ceilings. Effective sound insulation is essential in commercial, educational and industrial environments for privacy, comfort, and health and safety.

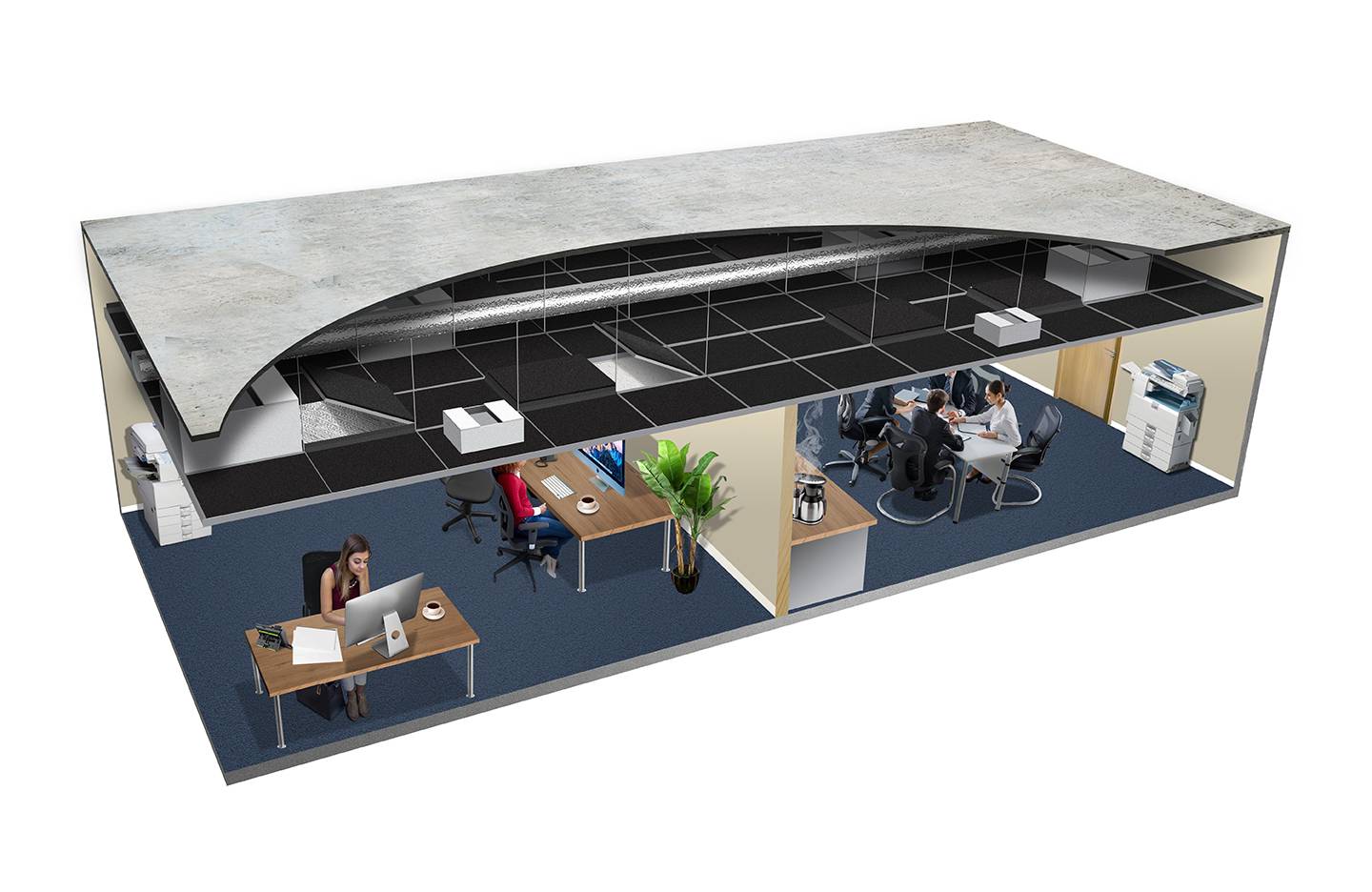

Often in such environments, a suspended ceiling is installed to screen services above head height and provide acoustic absorption. Partitions are typically installed to the underside of the suspended ceiling, leaving a common void between adjacent rooms. although effective absorbers of sound, the lightweight nature of suspended ceiling tiles often leads to poor sound insulation and problems can occur due to 'crosstalk' between adjoining areas, as well as noise generated by services within the ceiling void.


Features and benefits:

  • Reduces noise breakout through suspended ceilings in offices, classrooms, hospitals, cinemas and nightclubs.
  • Reduces noise breakout from services within the suspended ceiling void.
  • Easily installed with new or existing suspended ceilings.
  • Easily removed for access.
  • Allows complete flexibility with relocation of partitions, unlike vertical cavity barrier solutions.
  • Great to work with and easily cut.
  • Accessories for treating light fittings, air diffusers and gaps, are available.
  • Available in four ranges available; office and classroom, private office, confidentiality and entertainment ranges.

General information

Color

Black

Finish

Other

Material

Foam

Shape

Square

Rectangle

Length

600 mm

1200 mm

500 mm

750 mm

Bespoke

Width

600 mm

500 mm

750 mm

Bespoke

Height

16 mm

19 mm

25 mm

75 mm

Uniclass

Pr_35_93_13_80 Sound attenuator infill unitsPrimary

CAWS

K40/55 Insulation

K40/285 Insulation

Specification data - Sound attenuator infill units

Form

Infill unit.

Application

Ceiling mounting.

Material

Foam.

Fire performance

-

Fire resistance

To BS 476-6: Class 0. BS 476-7: Class 1.

Dimensions

-

Size (length x width)

600 x 600 mm.

1200 x 600 mm.

Thickness (overall)

16 mm.

Profile

Linear.

Edges

Square.

Surface pattern

Solid.

Colour

Black.

Accessories

Soundblocker perimeter strip.

Guidance for specification option:

Self adhesive Soundblocker Perimeter Strips are used at the perimeters or around columns etc. these are 15000 x 100 x 6 mm in size and are self adhesive.

Self adhesive modular side strips.

Guidance for specification option:

Self adhesive modular Side Strips (1200 x 100 x 13 mm) are fixed around all sides of the fitting. they are positioned onto the side of the fitting and should return onto the back of

the ceiling covering the tee and any gap between the fitting and the ceiling.


Soundblockers can normally be placed on top of the fitting when low brightness or louvre type diffusers are used. air must be allowed to flow through the louvre, and circulate around the tubes and switch gear.


Soundblocker tiles should not be placed on top of modular light fittings if a plastic lens type diffuser is used.

Standard downlighter hood.

Large downlighter hood.

Air diffuser hoods.

Acoustic performance

Rw 24 dB, Dnc,w 46 dB.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Foam

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Varies depending on the type of Soundblocker specified:


Soundblocker 16 (600x600mm) - 10%

Soundblocker 19 - 10%

Soundblocker 25 - 11%

Soundblocker Plus - 19%

Third party certifications

Alcumus SafeContractor

Alcumus SafeContractor

SafeContractor Certificate

Alcumus SafeContractor

Alcumus SafeContractor

SafeContractor PQQ Certificate

Literature

SRS Soundblocker Data Sheet

SRS Soundblocker Data Sheet

Soundblocker Confidentiality Range CAD Drawing

Soundblocker Confidentiality Range CAD Drawing

Soundblocker Entertainment Range CAD Drawing

Soundblocker Entertainment Range CAD Drawing

Soundblocker Office and Classroom Range CAD Drawing

Soundblocker Office and Classroom Range CAD Drawing

Soundblocker Private Office CAD Drawing

Soundblocker Private Office CAD Drawing
