Application

For use in damp proofing and waterproofing applications, to secure SovDrain membranes to the substrate, as part of the SovDrain waterproofing system.

Description

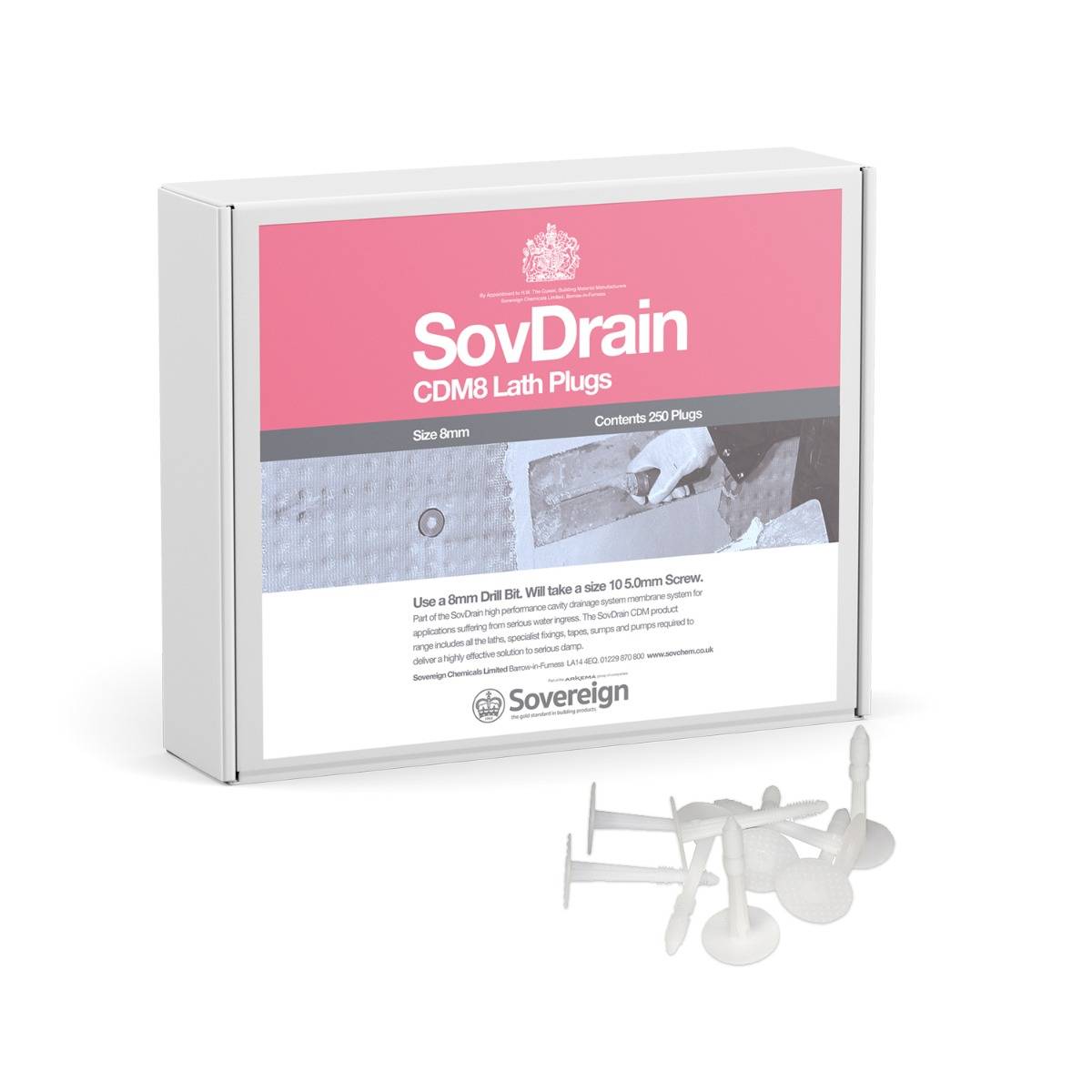

Membrane plug manufactured from polypropylene, providing a corrosion resistant fixing.


Features and benefits:

  • 35 mm diameter plug head.
  • 250 plugs per pack.


Pull out performance:

  • Concrete: 2.5 kN.
  • Solid brick: 0.23 kN.
  • Concrete block: 0.18 kN.

General information

Color

White

Material

Polypropylene

Uniclass

Pr_20_29_63_84 Studded cavity drainage membrane plugsPrimary

CAWS

J40/290 High-density polyethylene/ polypropylene studded cavity drain membrane

J40/47 High-density polyethylene/ polypropylene studded cavity drain membrane

Product range

SovDrain System

Specification data - Studded cavity drainage membrane plugs

Retaining head diameter

35 mm.

Length

50 mm.

70 mm.

Width

8 mm.

Material:

Polypropylene.

Colour

White.

Literature

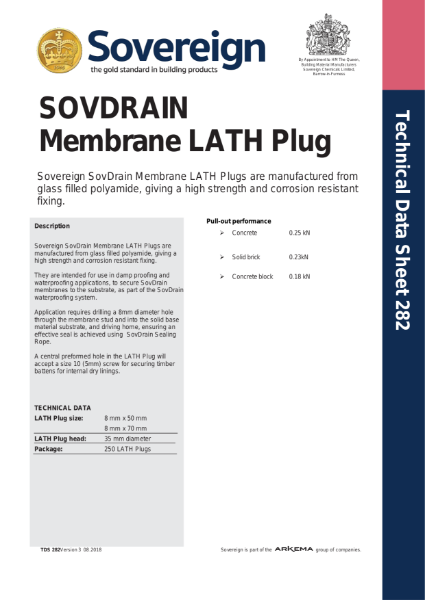

Lath Plugs TDS

Lath Plugs TDS
