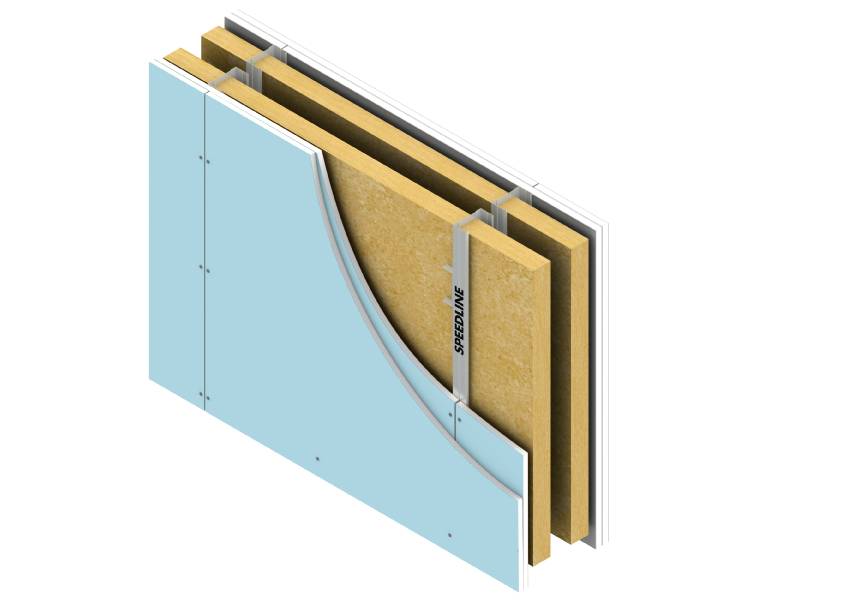

SPEEDLINE Twin Frame I Stud Partition Systems Utilising British Gypsum Board
Verified by manufacturer 3 months ago
TWI50-B-59(2x50+100)(250)
TWI50-B-59(2x50+100)(250)
BSI Kitemark
Certificate type
ISO 9001 Quality Management
Certificate type
UK Conformity Assessed (UKCA)
Certificate type
Lightweight plasterboard partition system.
Application
Wall partitions.
Description
Lightweight, quick to construct, cost-effective, compact and able to achieve high levels of fire resistance and sound insulation. The non-load-bearing high performance walls, constructed from plasterboard facings on metal studs, offer considerable advantages over traditional heavy masonry construction.
Features and benefits:
- Acoustics up to 70 Rw dB with Ctr of -10.
- Suitable for use with Code for Sustainable Homes or BREEAM.
- Suitable for party wall construction with requirements of +3 to +8 dB DnT,w on ADE requirements of 45 DnT,w + Ctr.
- Fire resistance up to 120 minutes BS 476:Part 22.
- Structural columns can be incorporated within the partition cavity due to unbraced twin frame design.
Structural performance:
- Strength grade to BS 5234-2:1992 Annexes A-F.
Fire performance:
- Fire resistance to BS 476:1987:Part 22.
Acoustic performance:
- Calculated weighted sound reduction index (Rw) to BS EN ISO 10140-2: 2010.
Installing framing for partitions:
- Partition height (maximum) calculated based on a limiting deflection of L/240 at 200 Pascals.
General information
Length | Bespoke |
Width | 200 mm 210 mm 250 mm 260 mm 270 mm |
Height | Bespoke |
Uniclass | |
CAWS | K10/30 Metal stud K10/125 Metal stud partition system |
Product range |
Specification data - Gypsum board partition systems
Framing | Twin Speedline 'I' Stud, 50 mm. |
Insulation | Acoustic partition roll, 50+50+100 mm. |
Linings | |
Inner layers | British Gypsum Gyproc SoundBloc, 12.5 mm. |
Outer layers | British Gypsum Gyproc SoundBloc, 12.5 mm. |
Fasteners | Speedline Drywall Screws. |
Joint treatment | Speedline Drywall Fibreglass Tape.Speedline Ready Mix Joint Compound.Speedline Corner Bead Tape. |
System accessories | Speedline Fire Rated Acoustic Sealant.Speedline PB24 Partition Brace.Speedline FS24 Flat Bracing Strip.Speedline Service Support Plate.Speedline Putty Pads. |
Fire resistance | To BS 476:1987:Part 22, 60/ 60 minutes (Integrity/ Insulation). |
Partition height | Guidance for specification option: Insert requirement based on centres specified.
Calculated based on a limiting deflection of L/240 at 200 Pascals. |
Nominal thickness | 250 mm. Guidance for specification option: Optimum system thickness. Note that if a greater partition thickness is required, this may improve the sound reduction index (Rw) - consult manufacturer for details. |
Calculated weighted sound reduction index (Rw) | 70 Rw dB (-8). Guidance for specification option: Based on the nominal system thickness. |
Centres | 600 mm. Guidance for specification option: Standard. 400 mm. Guidance for specification option: Allows for greater partition heights. |
StrengthGrade | Severe duty. |
Head/ Floor channel | Speedline Standard Track. Guidance for specification option: Used for partition heights under 4 m. Available in 50, 52, 62 or 72 mm wide. 25 mm flange. Speedline 32 mm Leg Track. Guidance for specification option: Used for partition heights under 4 m. Available in 52, 62, 72, 94 or 148 mm wide. 32 mm flange. Speedline Deep Track. Guidance for specification option: Used for partition heights between 4m and 8m. Can be used as a head track where a deflection head of up to 30 mm is needed. Available in 52, 62, 72, 94 or 148 mm wide. 50 mm flange. Speedline Extra Deep Track. Guidance for specification option: Used for partition heights between 8m and 10.2 m. Can be used as a head track where a deflection head of up to 45mm is needed. Available in 72, 94 or 148 mm wide. 70 mm flange. |
Standards | To BS 5234-2:1992 Annexes A-F, BS 476:1987:Part 22, BS EN ISO 10140-2: 2010. |
Third party certifications
BSI Kitemark
BIM Level 2 Kitemark - For Design and Construction Phase
BSI Kitemark
BSI Kitemark™ for BIM Objects
ISO 9001 Quality Management
ISO 9001:2015 Quality Management System
UK Conformity Assessed (UKCA)
UKCA Declarations of Performance - Drylining
