Sphera SD Homogeneous Vinyl Flooring - Sheet vinyl flooring

Name: Sphera SD Homogeneous Vinyl Flooring - Sheet vinyl flooring
Brand: Forbo Flooring Systems
SKU: gEFBu8xQn7NNJFWeFVcrYG

Verified by manufacturer 15 days ago

Forbo Flooring Systems

Third party certifications:

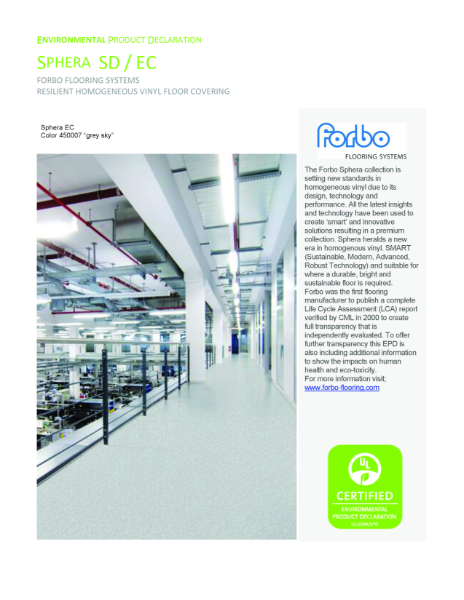

EPD
Certificate type
Certificate of Conformity
Certificate type

Homogeneous sheet vinyl floor covering with static dissipative properties.

Jump to:

+44 (0)800 093 5258 Website

Application

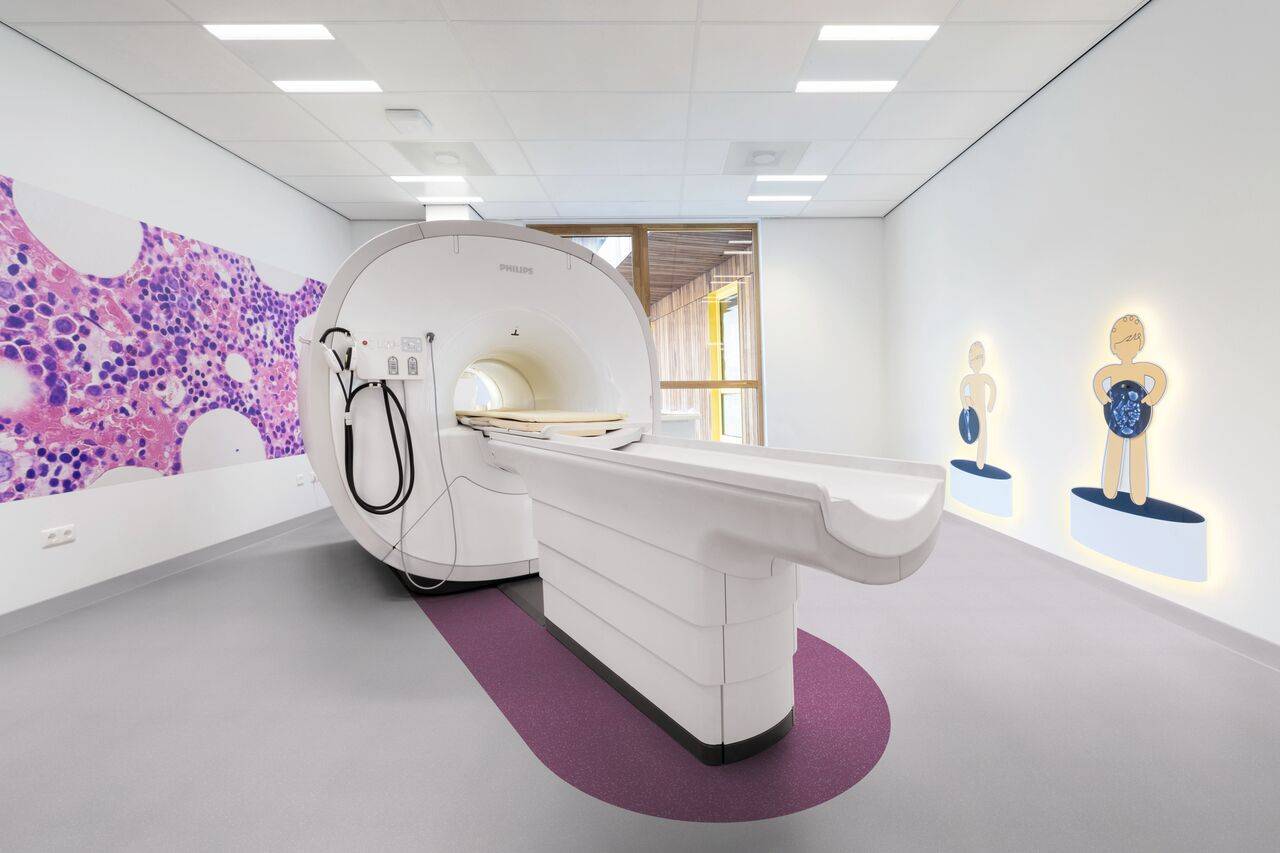

Specifically designed to control static discharges and particles in the most sensitive environments such as pharmaceutical, life sciences and healthcare facilities.

Description

Premium homogeneous vinyl sheet flooring with SMART top polyurethane (PUR) surface finish, offering high quality regardless of conditions.

Features and benefits:

Innovative product development and carefully controlled production processes ensure a solution with permanent conductive properties that comply with all electrostatic discharge (ESD) standards.
Retains high performance throughout the product’s lifetime regardless of environmental conditions (e.g. humidity levels).
Low emissions and phthalate-free manufacturing ensure that Sphera SD can contribute to a healthy indoor environment.
The SMART control surface treatment makes Sphera SD resistant to stains and scratches, for a durable and hygienic solution.
Conductive backing eliminates the need for conductive adhesive underneath the full sheet. It is only necessary to affix the copper strip, thus minimising installation errors and reducing costs.
Produced in a zero-waste environment, ensuring efficient and sustainable manufacturing.
Phthalate–free.

Adhesive:

641 Eurostar Special EL very low emission conductive adhesive for PVC for affixing copper strip.
640 Eurostar Special very low emission PVC adhesive.

General information

Color	Blue Green Grey Purple White Manufacturer guidance Beige
Finish	Lacquered Manufacturer guidance SMART Control surface treatment.
Material	PVC
Shape	Rectangle Manufacturer guidance Sheet.
Length	27000 mm
Width	2000 mm
Height	2 mm
Warranty description	Ten year

Uniclass	Pr_35_57_71_67 Polyvinyl chloride (PVC) sheetsPrimary
CAWS	M50/150 Sheeting M50/20 Sheeting

Specification data - Polyvinyl chloride (PVC) sheets

Standard	EN ISO 10581, EN 14041.
Use class	Class 34 / 43.
Slip potential	-
Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum)	To BS EN 13893: DS: ≥0.30, to DIN 51130: R9. Dry >50.
Recycled content	0%.
Width	2 m.
Thickness	2 mm.
Colour and pattern	Not required. White SD550000. Light neutral grey SD 550003. Dark neutral grey SD 550005. Grey sky SD550007. Silver grey SD550008. Ivory SD550017. Mortar SD550018. Sand SD550023. Soft lilac SD550032. Amethyst SD550034. Water SD550036. China Blue SD550037. Olive SD550050. Yellow green SD550049.

Finish:	SMART control surface treatment.
Reaction to fire (to BS EN 13501)	B(fl)-s1, G, NCS.
Electrical resistance to IEC 61340-4-1, ESD STM7.1)	1 x 10^6 ≤ R ≤ 10^8 Ω.
Lightfastness (to ISO 105-B02)	≥7.
Dimensional stability (to BS EN ISO 23999)	Standard = ≤ 0.4%, typical value = ~ 0.2%.
Thermal conductivity (to BS EN 12524)	0.25 W/m·K.
Electrical resistance in combination with ESD control footwear (to IEC 61340-4-5, ESD STM97.1)	R ≤1 x 10^9 Ω.
Resistance to chemicals (to EN ISO 26987)	Very good.
Bacteria resistance (to EN846)	Does not support growth.
Cleanroom particle emission (to ISO 14644-1)	ISO 6.
Electrostatic (general requirements) (to IEC 61340-5-1)	Compliant.
Electrical behaviour – static dissipative (to EN 1081)	≤1 x 10^9 Ω.
Electrical insulation to ground (to DIN VDE 0100)	≥50 kΩ.
Body voltage generation, in combination with ESD control footwear (to IEC 61340-4-5)	<50 V.
Residual indentation (to EN-ISO 24343-1)	Required ≤ 0.10 mm, typical ~0.03 mm.
Total weight (to EN ISO 23997)	2.9 kg/m².
Castor chair continuous use (to ISO 4918/EN 425)	Pass.
Flexibility (to EN-ISO 24344)	Ø 10 mm.
Adhesive	Not required. Eurocol 640 Eurostar Special low VOC emission solvent free PVC adhesive. Eurocol 641 Eurostar Special EL low VOC emission conductive adhesive for PVC.
Indoor Air Emissions (to ISO 16516)	TVOC at 28 days: ≤ 10 μg/m³.
Edging	Not required. As per 740.
Skirtings	Not required. As per 770.
Stair nosings	Not required. As per 750.

Sustainability data

Contains Red List materials	Yes
Country of material origin	Netherlands
Country of product manufacture	Netherlands
Material	PVC
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	5.88 kg CO₂ eq/m²
Recyclability	100% Manufacturer guidance Via Forbo's Back to the Floor Scheme.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	34 %
