SPIRA 6000 - Access Panel Non Fire Rated
Verified by manufacturer 1 month ago

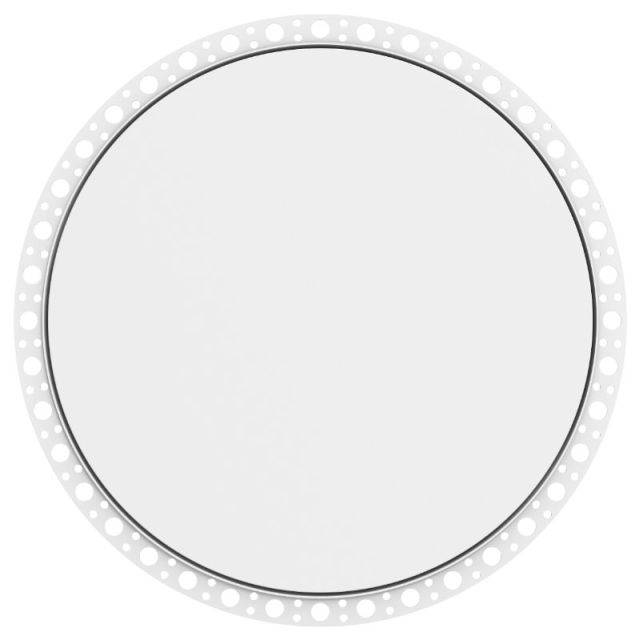

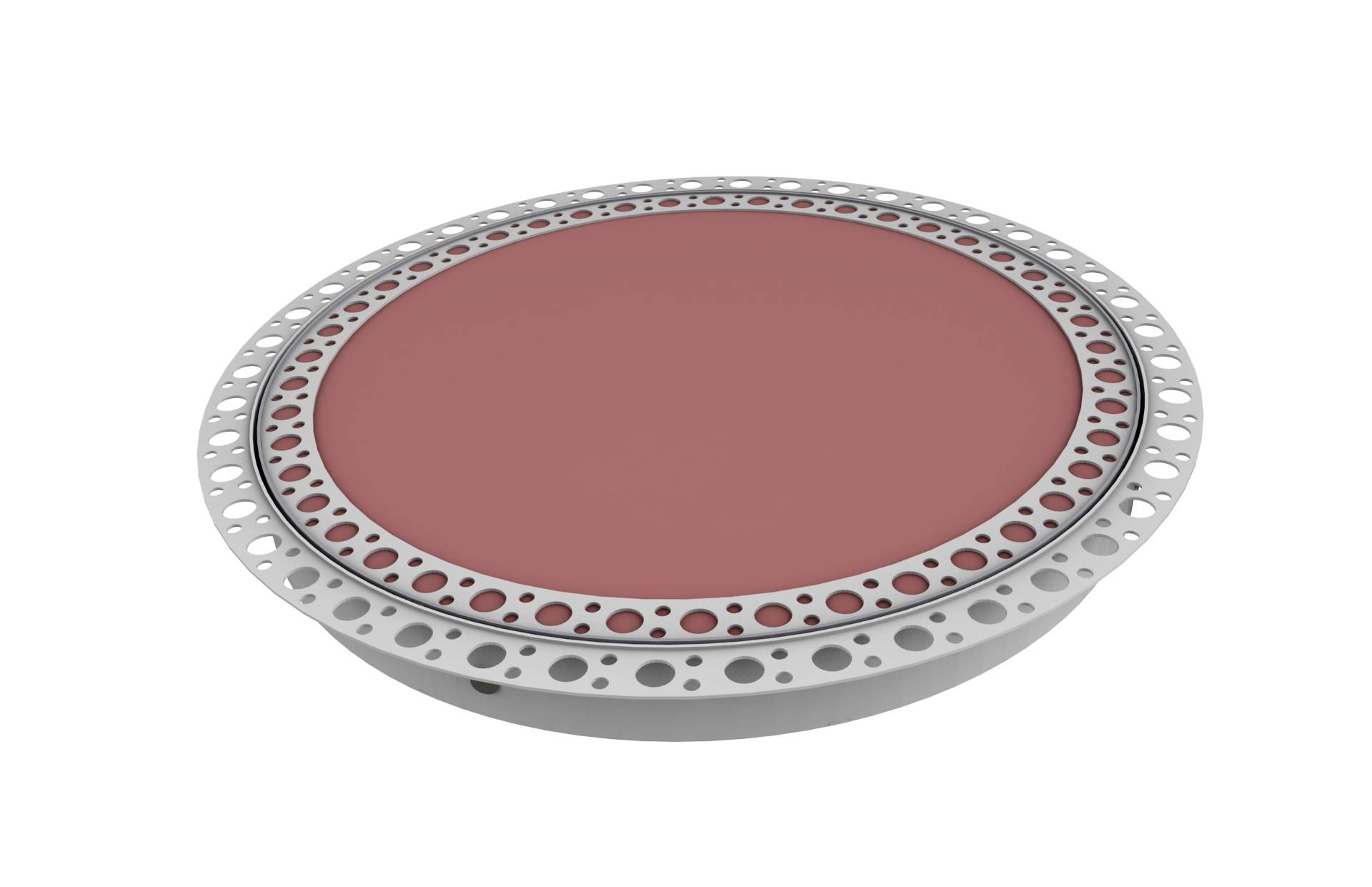

Access panel 6000/BF/MD
Access panel 6000/BF/MD
Standard circular access panel for jointless plasterboard/ plaster ceilings.
Application
Suitable for providing access to mechanical and electrical services above jointless plaster or plasterboard ceilings.
Description
The 6000 series range of steel lockable access panels provides access into jointless plaster/ plasterboard ceilings, where access to mechanical and electrical services is required.
Features and benefits:
- The metal frame holds a flush metal faced door (MD) or a plasterboard lined (PD) door through a bayonet lock retaining system. The bayonet lock retaining system allows the door to be removed during installation or if damage occurs. Panel frames are manufactured either as fully concealed (BF) or alternatively, manufactured for retrofitting where the 25 mm picture frame is visible (PF). Panels with simulated drywall beaded frames (BF) are supplied powder coated white primer all over as standard for decoration on site to match the adjacent finish.
- Panels with visible picture frame (PF) are supplied powder coated semi-gloss white as standard.
- Customization of the access panel may be possible including alterative sizes, lock and paint colours, consult manufacturer for details.
General information
Color | White |
Finish | Powder-coated |
Material | Aluminium Steel Guidance for specification option: Electro-galvanized. |
Shape | Circle |
Length | 200 mm Guidance for specification option: Diameter. 300 mm Guidance for specification option: Diameter. 450 mm Guidance for specification option: Diameter. 600 mm Guidance for specification option: Diameter. Manufacturer guidanceProduct diameter. |
Warranty description | Five year |
Uniclass | |
CAWS | K10/115 Metal stud partition system K10/125 Metal stud partition system K10/145 Wall lining system (metal studs) K10/15 Lining on timber K10/155 Wall lining system (metal studs) K10/165 Wall lining system (metal framing) K10/215 Suspended ceiling system K10/220 Proprietary suspended ceiling system K10/25 Ceiling lining on timber K10/30 Metal stud K10/430 Access panels K10/50 Suspended ceiling system on metal framing L20/630 Hatches |
Specification data - Access panels
Position | Ceiling mounted. |
Size | Guidance for specification option: 6000 series access panels are available in sizes from 200–900 mm diameter. |
Frame | Aluminium with edge bead profile.Guidance for specification option: 1.2 mm thick aluminium incorporating a simulated edge bead profile (BF) finished white powder coated primer. |
Panel | |
Material | Flush metal. |
Integral finish | Etch white powder coated primer. |
Latch or lock type | TW - Twist lock.Guidance for specification option: Twist open and close door mechanism with a rotating bayonet lock retaining system. |
Operation | Lift out. |
Integral accessories | Foam dust gasket.Guidance for specification option: Around door circumference. |
Diameter | 200 mm. Guidance for specification option: Weight: 0.3 kg. 300 mm. Guidance for specification option: Weight: 0.5 kg. 450 mm. Guidance for specification option: Weight: 1.0 kg. 600 mm. Guidance for specification option: Weight: 1.5 kg. |
FrameDepth | 35 mm. |
Door | Aluminium. Guidance for specification option: Flush metal 1.2 mm thick aluminium (MD) finished etch white powder coated primer. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Aluminium Steel Guidance for specification option: Electro-galvanized. |
Recyclability | Fully recyclable at end of life. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 20 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 3 |
 IFC | - | 3 |
