Squaro Edge 12 Rectangular Bath UBQ180SQE2DV
Verified by manufacturer 8 months ago

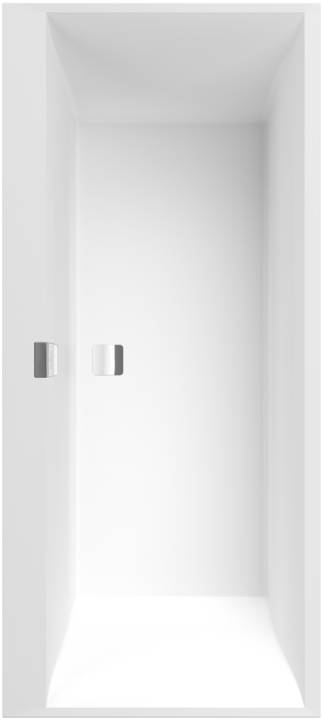

Rectangular bath.
Application
For bathrooms.
Description
Rectangular bath.
Features and benefits:
- Duo, for two people.
- Special Combipool Invisible whirpool system.
- Matching outlet and overflow is supplied as standard (chrome-plated and white).
General information
Color | White |
Finish | Gloss Matt |
Material | Quaryl® |
Shape | Rectangle |
Length | 1800 mm |
Width | 450 mm |
Uniclass | |
CAWS | N13/361 Whirlpool baths N13/355 Baths N13/35 Baths |
Specification data - Baths
Form | Rectangular. |
Materials | Quaryl®. |
Colour | Alpin White.Stone White. |
Size | 1800 x 800 x 450 mm. |
Volume to overflow (maximum) | 180 L. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Overflow | Overflow hole. |
Waste | Central waste outlet. |
Integral accessories | Special Combipool Invisible. Matching outlet and overflow.Guidance for specification option: The whirlpool system IP (Special Combipool Invisible) for baths in color Stone White (RW) will be delivered with Stone White (RW) colored jets. For all other pools in the color RW, the jets remain in Chrome. |
Anti-slip finish | Class A. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 ARCHICAD | - | 1 |
 IFC | - | 1 |
 SketchUp | - | 1 |
 3Ds Max | - | 1 |
 OBJ | - | 1 |
