Application

Domestic bathrooms.

Description

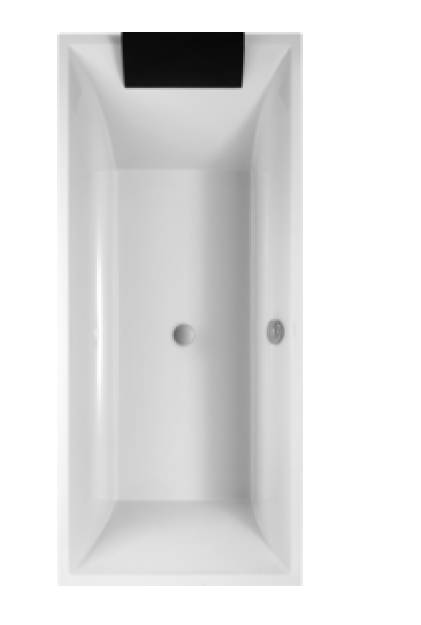

Squaro rectangular bath.


Features and benefits:


  • Duo.Set of bath feet is supplied as standard (self-adhesive), adjustable from 130—180 mm.
  • Requires extended waste/overflow combination.

General information

Color

White

Guidance for specification option:

White Alpin.

Finish

Gloss

Material

Guidance for specification option:

Quaryl®.

Shape

Rectangle

Width

1700 mm

Uniclass

Pr_40_20_06_08 BathsPrimary

CAWS

N13/35 Baths

N13/355 Baths

Specification data - Baths

Form

Rectangular.

Materials

Quaryl®.

Colour

White Alpin.

Size

1700 x 750 x 500 mm.

Volume to overflow (maximum)

195 L.

Water supply, overflow and waste holes

-

Water supply

No tap holes.

Overflow

Overflow hole.

Guidance for specification option:

Central outlet.

Waste

Bottom waste outlet.

Support frame

Set of bath feet is supplied as standard (self-adhesive).

Guidance for specification option:

Adjustable from 130—180 mm.

Integral accessories

Not required.

Handgrips - U90170061.

Guidance for specification option:

80 x 250 x 30 mm.

Multiplex Trio Outlet/overflow fitting with water inlet - U90600361.

Guidance for specification option:

180 x 450 x 115 mm.

Multiplex Trio Outlet/overflow fitting with water inlet and pipe interrupter - U90600461.

Guidance for specification option:

180 x 445 x 115 mm.

Multiplex waste/overflow combination - U90950461.

Guidance for specification option:

200 x 300 x 100 mm.

Multifunction cushion - U906100PA.

Guidance for specification option:

150 x 240 x 50 mm.

Pipe interruptor - UCCON0475.

Guidance for specification option:

450 x 465 x 90 mm.

Weight

53.20 kg.

Capacity

Two people.

Anti-slip finish

Anti-slip class A.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
ARCHICAD
-

1

3Ds Max
-

1

OBJ
-

1

SketchUp
-

1

IFC
-

1

Revit
-

1
