Stainless steel expanding anchor bolts
Verified by manufacturer 25 days ago
European Technical Approval (ETA)
Certificate type

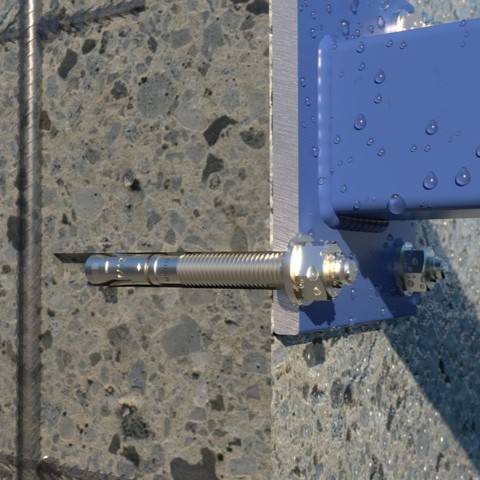

A4 stainless through bolts for anchoring high loads to concrete
Application
APPLICATIONS
- Structural fixings in cracked and non cracked concrete, including industrial and marine environments
- Safety barriers
- Fixings of steel beams, perforated bracket guides, machinery, boilers, signage, stadium seating, facade substructures, etc.
- Fixing of wood structures to concrete
BASE MATERIAL
- Cracked or non-cracked concrete class from C20/25 to C50/60
Description
CHARACTERISTICS AND BENEFITS
- A4 Stainless steel (AISI 316)
- Use in cracked and non-cracked concrete
- Pre-installation or through the drill-hole of the fixture
- For static and quasi-static loads
- Friction operation. Installation by controlled torque
- Use for high loads
- Assessed for fire resistance to RF120
General information
Color | Silver |
Finish | Mill |
Material | Stainless steel |
Length | 75 mm 95 mm 115 mm 135 mm 165 mm |
Width | 8 mm 10 mm |
Uniclass | |
CAWS | G20/721 Expansion anchors |
Product range |
Specification data - Expansion anchors

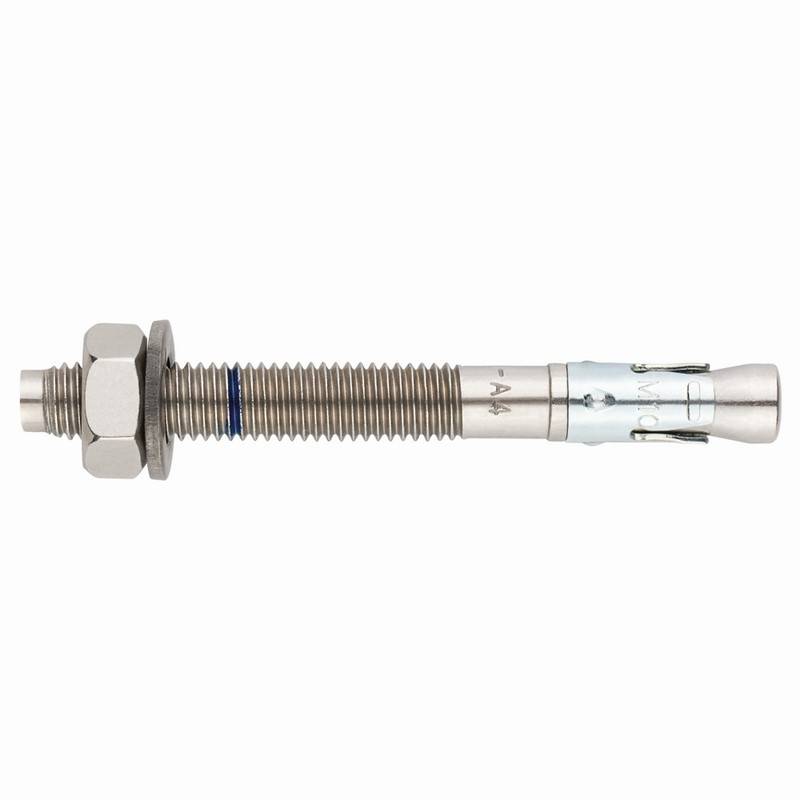

Format | Sleeve and bolt. |
Material | Stainless steel, Grade A4 to BS EN ISO 3506-1. |
Head arrangement | Hexagon nut and washer. |
Anchor length | 75 mm.95 mm.110 mm.115 mm.130 mm.135 mm.150 mm.165 mm.185 mm.200 mm.225 mm. |
Thread diameter | M8.M10.M12. |
Sustainability data
Material | Stainless steel |
Third party certifications
European Technical Approval (ETA)
ETA: Certificate 12/0397
