Standard Screen - Slatted Screen
Verified by manufacturer 2 days ago
Aesthetic screens for Series 1, 2, 3 Platforms, Speedscreen, Boltscreen and Parascreen.
Application

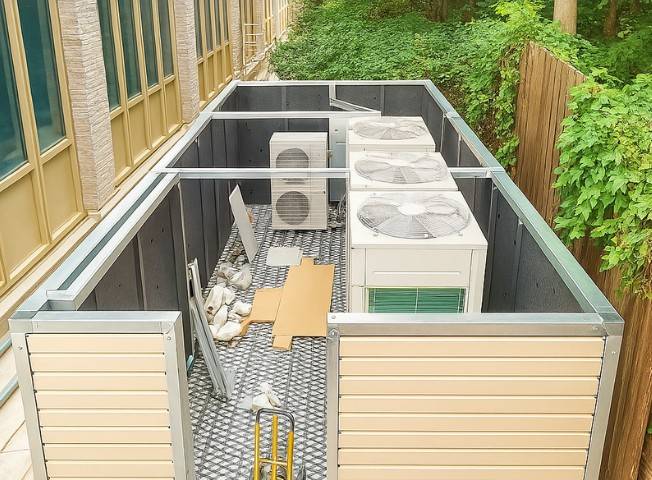

To screen off plant and equipment from view on Series 1, 2, 3 Platforms and Speedscreen.
Description

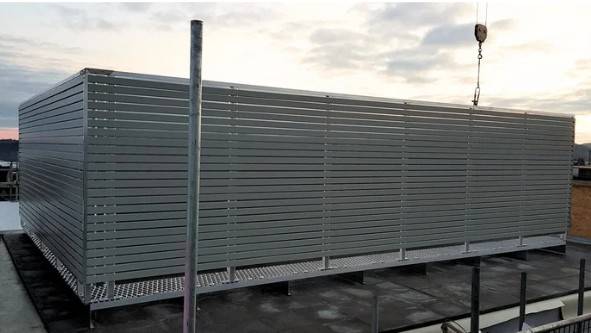

Aesthetic slatted screens for Series 1, 2, 3 Platforms, Speedscreen, Boltscreen and Parascreen.
Features and benefits:
- Clean straight lines for a tidy look.
- Modern horizontal straight lines.
- All aluminium components with stainless steel fixings.
- Screen area 7 kg/m² (not including added acoustic elements).
- Provides 20% free area.
- All acoustic add-ons available can be used in conjunction with Standard Screen.
General information
Color | Grey Other |
Finish | Mill Guidance for specification option: Frame. Powder-coated Guidance for specification option: Slats. |
Material | Aluminium Guidance for specification option: Extruded aluminium structure. Stainless steel Guidance for specification option: Fixings. |
Shape | Square Guidance for specification option: Posts. Rectangle Guidance for specification option: Slats. |
Length | Bespoke Guidance for specification option: Any 600 mm increment length around the perimeter. |
Height | Bespoke Guidance for specification option: In 400 mm increments above the walking surface. |
Warranty description | 20 year |
Uniclass | |
CAWS | Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Specification data - Aluminium external panels
Sustainability data
Material | Aluminium Guidance for specification option: Extruded aluminium structure. Stainless steel Guidance for specification option: Fixings. |
A1-A3 (production stage) | Embodied carbon as defined in BS EN 15804 |
Normalised unit | 10 kg CO₂ eq/kg |
Declared unit | 10 kg CO₂ eq/kg Self-declared |
Recyclability | 100% recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
Literature type
Acoustic+ Data Sheet
Baffle300 Data Sheet
Baffle400 Data Sheet
Boltscreen Data Sheet
Configured Platforms Brochure
Parascreen Data Sheet
Peacemaker Data Sheet
Series2 Platform Data Sheet
Series1 Platform Data Sheet
Series3 Platform Data Sheet
Soundshield Data Sheet
Speedscreen Data Sheet
Standardscreen Data Sheet
St James University Hospital, Pathology Lab
Case studies
Lewisham Exchange Student Accomodation
Gants Hill Student Accomodation
3-5 Crutched Friars
Etone College, Nuneaton
Merrion Street, Leeds
Ibis Styles Hotel, Burton Upon Trent
John Radcliffe Hospital, Oxford
Alder Hey Hospital
Mars Petcare
Premier Inn, Scarborough
West Bar Sheffield
St James Pathology Lab, Leeds
