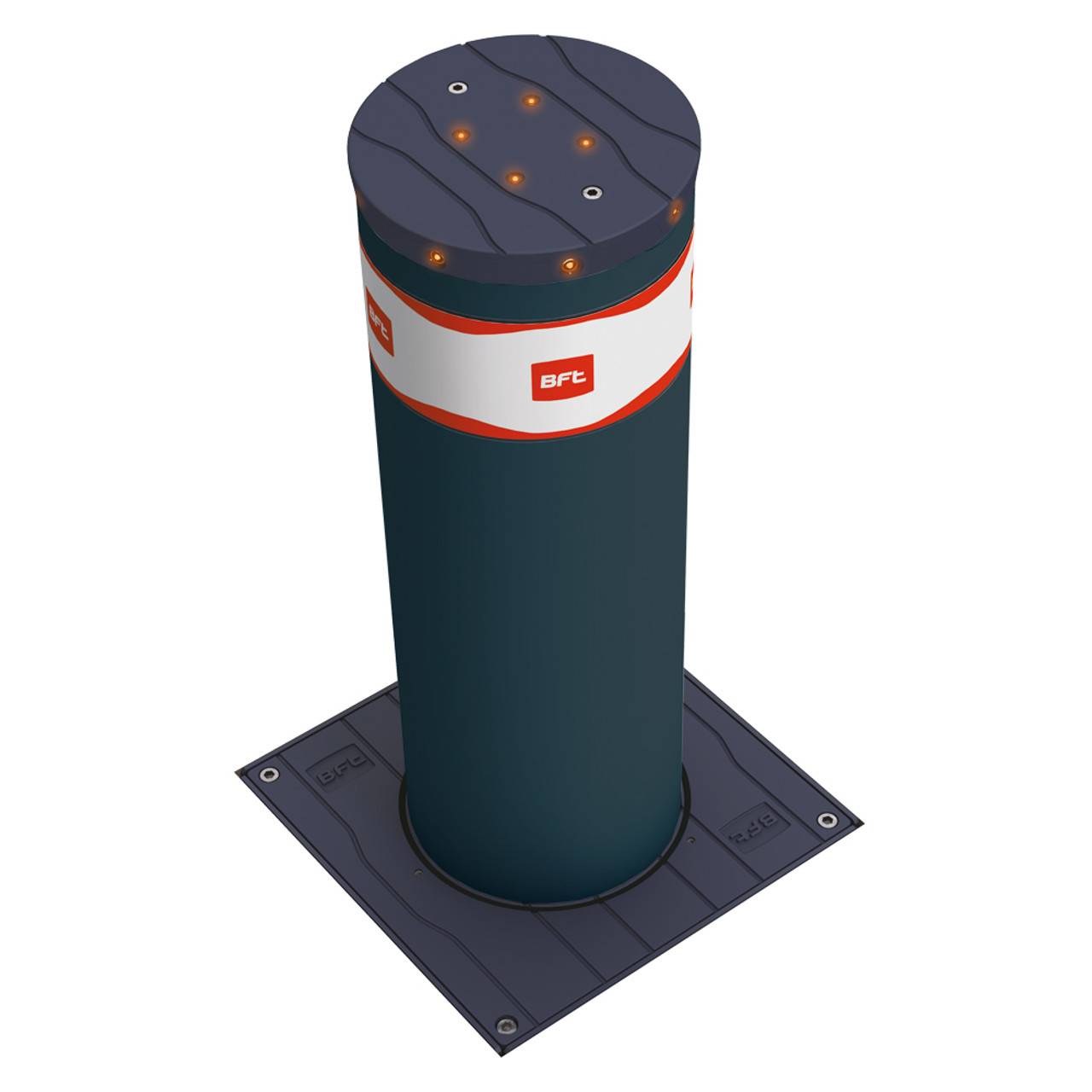

Stoppy MBB - Security Bollard
Verified by manufacturer 1 month ago
Stoppy MBB 700
Stoppy MBB 700
CE Marking
Certificate type
Rising bollard for for high usage, with an internal oil-bath gear motor.
Application
Designed to work in extreme conditions with all metal parts cataphoresis-treated.
Description
The Stoppy MBB is designed to work in extreme conditions with all metal parts cataphoresis-treated. The seal integrated into the flange is a new EPDM. These automatic bollards are built for high usage, with an internal oil-bath gear motor.
Features and benefits:
- Available in two sizes.
- Available in two finishes grey or chrome.
- Fitted with a with an LED light crown.
- LED light cap which fits into the floor flange, when the shaft is lowered. This reduces the risk of debris getting into the casing.
- Compatible with the Perseo CBD control panel which can manage up to four bollards in parallel.
General information
Color | Grey Silver |
Finish | Powder-coated Chrome |
Material | Stainless steel |
Shape | Circle |
Length | Bespoke |
Width | 219 mm |
Height | 500 mm 700 mm |
Warranty description | Two year |
Uniclass |
Specification data - Stainless steel rising bollards
Automation | |
Method of operation | Electromechanical with manual override. |
Controllers | Perseo CBD. |
Dimensions | |
Size and profile | 219 mm. |
Height | 700 mm.Guidance for specification option: Below ground, 1400 mm. |
Top profile | Flat. |
Base | Flat. |
Finishes | |
Worked finishes | Slate grey (RAL 7015).Stainless steel. |
Applied finishes | LED light crown. |
Accessories | Mitto B transmitter.Battery back-up.None. |
Operating time | 9 seconds. |
Usage | 1500 per day. |
Ingress protection | IP67. |
Operating temperature | -25°C to 60°C. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Italy |
Country of product manufacture | Italy |
Material | Stainless steel |
Third party certifications
CE Marking
Declaration of conformity Stoppy MBB
CE Marking
Declaration of conformity Stoppy b
Literature
Stoppy MBB
BFT Bollard Information
