Stopseal® Batt

Verified by manufacturer 13 days ago

FSi Limited Third party certifications:
  • UL-EU Certified

    UL-EU Certified

    Certificate type

Stopseal® Batt is a mineral wool based, protection board.

Jump to:
+44 (0)1530 515130 Website

Application

Application / Use:

  • To reinstate fire resistance through walls and floors.
  • Multi-service penetrations.
  • Prevention of air leakage.
  • Maintains Acoustic performance.
  • Assumed working life 30 years · For internal use.

Description

Stopseal Batt is a mineral wool based protection board

coated with the fire resistant, ablative coating on both sides.

It can be combined with many other FSi passive fire

protection products for sealing a wide range of installation

service penetrations.

General information

Color

White

Other

Guidance for specification option:

Other colours available on request, consult mnaufacturer.

Finish

Coated

Material

Mineral wool

Guidance for specification option:

Mineral wool core coated both sides with a fire resistant

ablative coating.

Shape

Rectangle

Length

1200 mm

Width

600 mm

Height

50 mm

Uniclass

Pr_25_57_06_56 Mineral wool slab insulationPrimary

CAWS

P12/360 Mineral wool rigid batts

P12/40 Mineral wool rigid batts

P12/41 Mineral wool rigid batts - ablative coated

Product range

Coating/Coated Batts

Specification data - Mineral wool slab insulation

Standard

To BS EN 1366-3:2009, BS 476 : Parts 20 and 22, BS EN 1026:2000, ASTM E84, ASTM E2923:14, BS EN 13501-2:2016, LEED 4.1 NC-2009, BS EN ISO 10140-2:2020, AS1530.4:2014; BS EN 13501-1.

Thickness

50 mm.

Facing

Coating thickness ~2 mm.

Fire performance

To BS EN 1366-3:2009, BS 476: Parts 20 and 22, BS EN 13501-2:2016 and BS EN 13501-1.

Guidance for specification option:

  • BS EN 1366-3:2009 Fire resistance tests for service installations. Penetration seals See UL-EU-00771-CPR for fire resistance performance.
  • BS 476 : Parts 20 and 22 Fire tests on building materials and structures. Method for determination of the fire resistance, of non-loadbearing elements of construction, Contact technical.fsi.uk@etexgroup.com for details.
  • BS EN 13501-2:2016 Fire classification of construction products and building elements See UL-EU-00771-CPR for fire resistance performance.
  • BS EN 13501-1 Fire classification of construction products and building elements. Classification using data from reaction to fire tests. Contact technical.fsi.uk@etexgroup.com for details.

Sound insulation rating

To BS EN ISO 10140-2:2020, up to 60 db.

Guidance for specification option:

BS EN ISO 10140-2:2020 Laboratory measurement of sound insulation of building elements. Measurement of airborne sound insulation Up to 60dB achievable Contact technical.fsi.uk@etexgroup.com for details.

Air permeability

To BS EN 1026:2000, 600 Pa.

Guidance for specification option:

BS EN 1026:2000 Windows and doors. Air permeability. Test method Tested at 600 Pa (contact technical.fsi.uk@etexgroup.com for details).

Sealant

Pyrocoustic® sealant.

VOC content

LEED 4.1 NC-2009 IEQc4.1.

Guidance for specification option:

Low-Emitting Materials—Adhesives and Sealants. Contact technical.fsi.uk@etexgroup.com for details.

Materials

Mineral wool core coated both sides with a fire resistant
ablative coating.

Weight

6.5 kg.

Dimensions

1200 x 600 x 50 mm.

Third-party certification

CE Mark ETA-20/1026, UL-EU-00771-CPR; ISO 9001: 11378.

Sustainability data

Country of product manufacture

United Kingdom

Material

Mineral wool

Guidance for specification option:

Mineral wool core coated both sides with a fire resistant

ablative coating.

Manufacturing plant location

Third party certifications

UL-EU Certified

UL-EU Certified

UL-EU-00771-CPR - Stopseal Batt

Literature

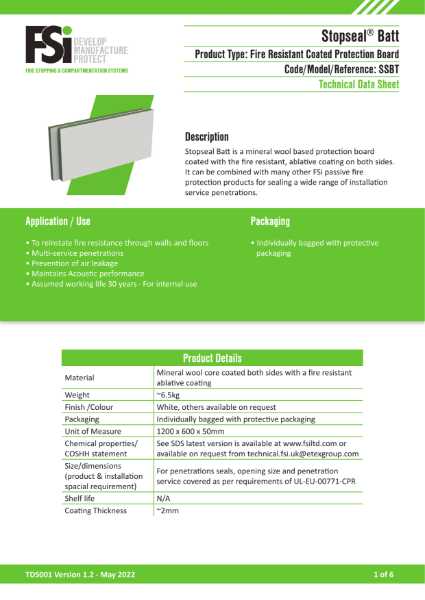

TDS001 - V1.2 - Stopseal Batt - May 2022

TDS001 - V1.2 - Stopseal Batt - May 2022

SDS028 - V3.4 - Article - Stopseal Batt

SDS028 - V3.4 - Article - Stopseal Batt

Stopseal Batt - DoP

Stopseal Batt - DoP
