Strongcoat HB ESD - High-Build Anti-Static Floor Coating
Verified by manufacturer 1 day ago
High performance, anti-static epoxy resin floor coating.
Application
Suitable for use in areas where an anti-static floor is required, such as:
- Electronic manufacturing facilities.
- Server rooms and IT facilities.
- Aviation and aerospace facilities.
Description
High performance, anti-static epoxy resin floor topping, designed for industrial environments where static electricity control is crucial.

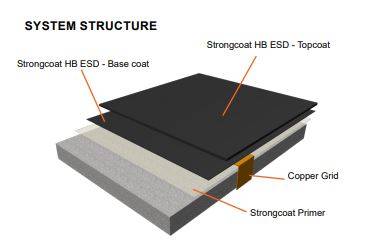

The coating comprises of an epoxy primer, a dissipative epoxy base coat, and a dissipative epoxy topcoat.
Features and benefits:
- Controls static electricity.
- Protects sensitive electronic equipment from damage caused by electrostatic discharge.
- Easy to clean.
- Resists a wide range of chemicals (consult literature for details).
Consult manufacturer's datasheet for detailed preparation, priming and mixing instructions.
General information
Color | Other Grey |
Finish | Other Guidance for specification option: Anti-static. |
Material | Epoxy resin Epoxy |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year |
Uniclass | |
CAWS | M12/10 Resin flooring M60/180 Floor coating M12/110 Resin flooring |
Specification data - High-build floor coatings
Colour | Manufacturer guidanceVarious available, consult manufacturer and insert requirements. |
Primer | Strongcoat Primer. Guidance for specification option:
|
Basecoat | Strongcoat HB ESD base coat. Guidance for specification option:
|
Top coat | Strongcoat HB ESD topcoat. Guidance for specification option: To be applied in two layers.
|
Density | 1.50 g/cm³. Guidance for specification option: +/- 0.05. |
Flexural strength | To EN 13892, ≥25 N/mm² (after 7 days). |
TensileStrength | To EN 6319, ≥10 N/mm² (after 7 days). |
Slip resistance | To BS EN 13036, ≥55 (dry). |
Electrical resistance | To EN IEC 61340-5-1, ≤10⁶ Ω. Guidance for specification option: The electrical resistance values are for Strongcoat HB ESD Topcoat when the system is applied in accordance with the mentioned instructions. Failure to follow these instructions may cause differences in these values. Consult manufacturer for details. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Epoxy resin Epoxy |
Manufacturing plant location | |
Expected Life | Five year |
Literature
Strongcoat HB ESD TDS
