SuperLag Prime Flexilag - Acoustic Insulation
Verified by manufacturer 30 days ago
SUPERLAG® Prime Flexilag 5/25
SUPERLAG® Prime Flexilag 5/25
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
Acoustic insulation consisting of a three-part laminate.
Application
For ductwork, pipes, enclosures and similar applications where a considerable reduction in the passage of noise is required.
Description
Highly flexible acoustic insulation consisting of a three-part laminate, incorporating a spacer/ isolating layer, a flexible heavy mass layer and an outer vapour barrier.
Being of a laminated construction, it overcomes the need for a separate isolation layer (normally required beneath most forms of acoustic lagging).
Features and benefits:
- Easy and quick to apply.
- High acoustic performance.
- Applied as a single layer treatment.
- Highly durable.
- Low thermal conductivity.
- Highly flexible, and suitable for installation on smaller pipes.
- Available in four grades to suit different performance requirements.
- Tested at certified independent test laboratories to BS EN ISO 717-1 and BS EN ISO 10140-2.
See manufacturer's literature for test results on airborne sound transmission loss figures, as well as installation guidelines for different types of ductwork.
General information
Color | Silver Black |
Finish | Foil |
Material | Glass Fibre Foil |
Shape | Rectangle |
Length | 2000 mm Bespoke |
Width | 1200 mm Bespoke |
Height | 20 mm 25 mm 37 mm 40 mm |
Warranty description | One year Other |
Uniclass | |
CAWS | S90/570 Insulation to pipework U90/490 Site-applied insulation to ductwork |
Specification data - Flexible glass wool mat insulation
Standard | To BS EN ISO 717-1 and BS EN ISO 10140-2. |
Thickness (minimum) | 20 mm. |
Density | 16–24 kg/m³.Guidance for specification option: Glass fibre spacer density (nominal). |
Facing | Metal foil laminate. |
Fire performance | Reaction to fire classification of C-s1,d2, as defined in BS EN 13501-1. |
Barrier mass | 5 kg/m². |
Sheet size | 2000 x 1200 mm. Guidance for specification option: As standard. Bespoke. Guidance for specification option: Insert requirements. |
Service temperature | -30 to +100°C. |
Chemical resistance | Resistant to oils, water, and most solvents. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Glass Fibre Foil |
Third party certifications
ISO 45001 Health and Safety Management
ISO 45001:2018
ISO 9001 Quality Management
SIG ISO 9001
Literature

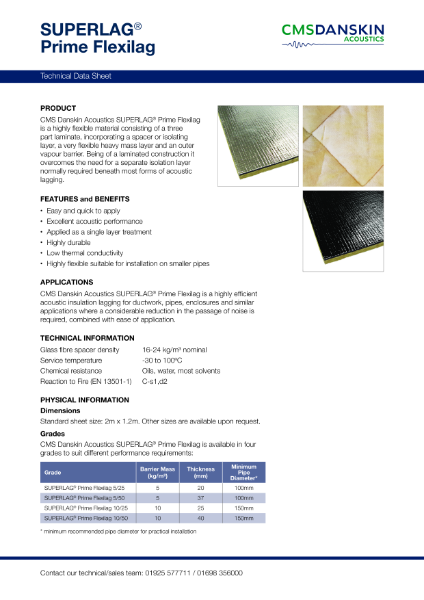

SuperLag Prime Flexilag
