SURE-WELD® TPO - Single-layer waterproofing membrane
Verified by manufacturer 8 months ago
1.5 mm thick
1.5 mm thick
FM Approved
Certificate type
High-quality, single-layer waterproofing membrane durable in all weather conditions.
Application
Designed for new roof construction and re-roofing applications.
Laying variations:
- Loose-laid with ballast.
- Mechanical fixing.
Description

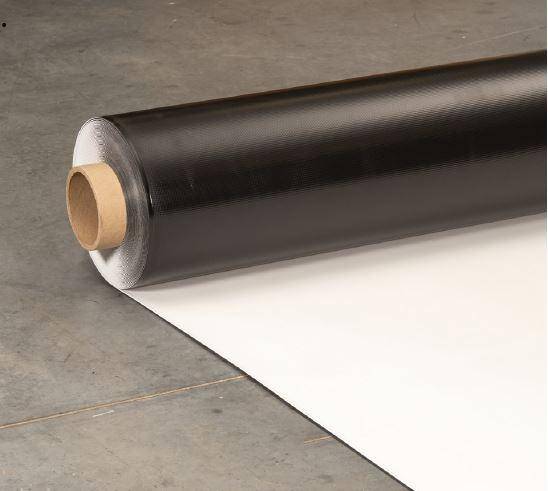

SURE-WELD® TPO is a high-quality, single-layer waterproofing membrane made of thermoplastic/ flexible polyolefins with an internal reinforcement of polyester fabric. The high-performance combination is permanently flexible and keeps its shape. The distinctive CARLISLE® OCTAGUARD XT™ weather protection gives the membrane extra long-term performance, even in extreme climates.
Features and benefits:
- High quality.
- Permanently flexible.
- Keeps its shape.
- Long-term performance.
- Durable in all weather conditions.
Standards:
- Membrane designation according to DIN SPEC 20000-201: DE/E1 FPO-BV-V-PG-1.5/1.8/2.0.
- CE certification according to DIN EN 13956.
- Root resistant – tested according to DIN EN 13948:2007 (FLL in testing).
- Meets the requirements of DIN 18531 and the Fachregel für Abdichtungen (Flat Roof Guideline).
General information
Color | Grey White |
Material | Flexible polyolefin (FPO) Thermoplastic polyolefin (TPO) |
Shape | Other |
Length | 20000 mm |
Width | 1100 mm 1520 mm |
Height | 1.5 mm 1.8 mm 2.0 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | J42/120 Inverted roof covering J42/12 Inverted roof covering J42/130 Cold deck roof covering J42/10 Warm deck roof covering J42/110 Warm deck roof covering J42/400 Waterproof membrane J42/28 Waterproof membrane |
Product range |
Specification data - Polymeric membranes
Material | Thermoplastic/ flexible polyolefins. |
Standard | To BS EN 13956. |
Performance characteristics | |
External fire performance | To CEN/TS 1187, B ROOF (t4).Guidance for specification option: As part of a system build-up. Manufacturer guidanceStress from external fire. |
Reaction to fire | To DIN EN 13501-1, Class E. |
Watertightness | To DIN EN 1928 - B, Tight. |
Tensile properties | To DIN EN 12311-2, ≥1500 N/50 mm. |
Root resistance | Tested according to DIN EN 13948:2007. |
Tear resistance | To DIN EN 12310-2, ≥350 N. |
Width (minimum) | 1100 mm.1520 mm.Manufacturer guidanceTolerances according to EN 13956. |
Thickness (minimum) | 1.5 mm.Guidance for specification option: -5/ +10%. |
Weight | 2.19 kg/m². Guidance for specification option: -5/ +10%. Manufacturer guidanceSurface weight. |
Elongation at break | To DIN EN 12311-2, ≥30%. |
Strength | To DIN EN 12316-2, No failure of the seam. Manufacturer guidanceBehaviour of the seam - Peel strength. |
ShearStrength | To DIN EN 12317-2, ≥1500 N/50 mm. Manufacturer guidanceBehaviour of the seam. |
Weather resistance | To DIN EN 1297, Passed. |
Foldability | To DIN EN 495-5, No cracking. Manufacturer guidanceFolding in the cold (-30°C). |
Class | To DIN 18531, K1/K2. Manufacturer guidanceApplication class. |
Insert | Polyester fabric (approx. 107 g/m²). |
Sustainability data
Country of material origin | United States |
Country of product manufacture | United States |
Recyclability | 100% |
Third party certifications
FM Approved
FM Approved
Literature

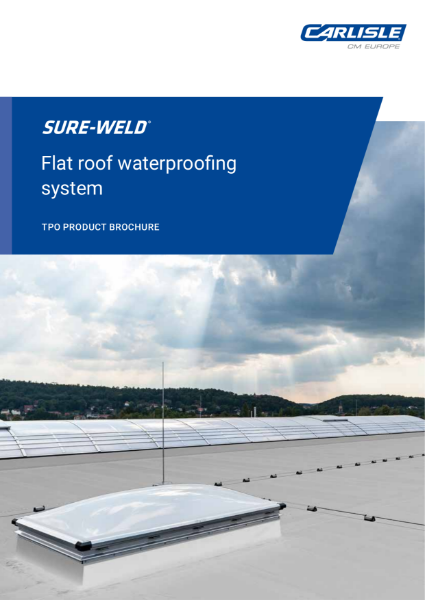

SURE-WELD TPO Product Catalogue

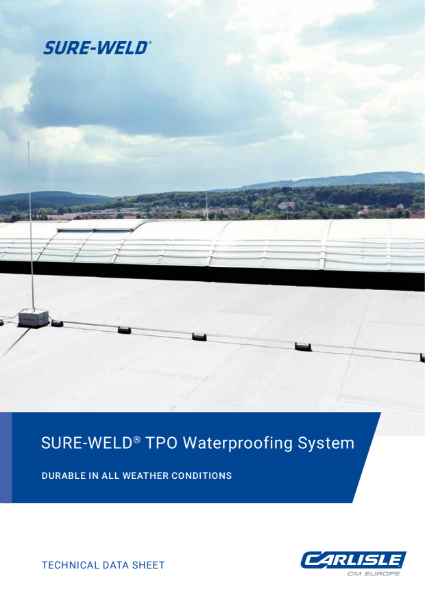

SURE-WELD TPO

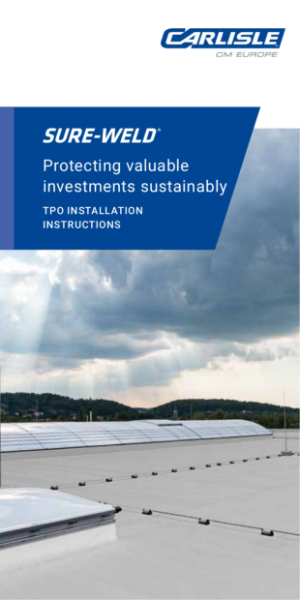

SURE-WELD TPO Installation
