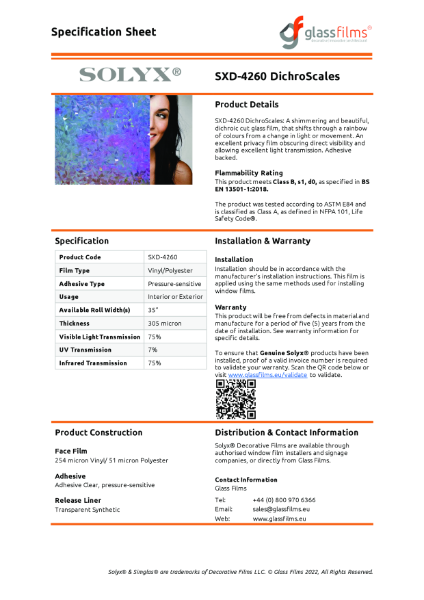

SXD-4260 DichroScales
Verified by manufacturer 5 months ago
BS EN 13501-1
Certificate type
Dichroic cut glass film.
Application
Interior and exterior applications.
Description
Dichroic cut glass film that shifts through colours from a change in light or movement.
Features and benefits:
- For interior and exterior use.
- Flammability rating of class B-s1, d0 to BS EN 13501-1:2018.
- Made from 254 µm-thick vinyl, 51 µm micron polyester.
- Supplied in fixed roll width of 35” (88.9 cm).
- Supplied with a paper liner and water-based acrylic, clear, pressure-sensitive adhesive.
The product was tested according to ASTM E84 and is classified as Class A, as defined in NFPA 101, Life Safety Code®.
General information
Color | Other |
Finish | Textured |
Material | Polyester Vinyl |
Width | 889 mm |
Height | 0.3 mm |
Warranty description | Five year |
Uniclass | |
CAWS | L40/95 Window film L40/610 Window film |
Product range |
Specification data - Plastics window films
Purpose | Privacy. |
Material | Polyester, vinyl. |
Colour | Multi coloured. |
Dimensions | 889 x 0.3 mm.Guidance for specification option: Fixed roll width x thickness. |
Fire performance | To BS EN 13501-1:2018, Class B, s1, d0. |
Adhesive | Adhesive clear, pressure-sensitive. |
Film thickness | 305 µm. Guidance for specification option: 254 micron Vinyl/ 51 micron Polyester |
VisibleLightTransmittance | 75%. |
UV Transmission | 7%. Guidance for specification option: Infra-red transmission: 75%. |
Release Liner | Transparent synthetic. |
Sustainability data
Country of material origin | United States |
Country of product manufacture | United States |
Material | Polyester Vinyl |
Manufacturing plant location | |
Expected Life | Ten year Guidance for specification option: Up to ten years. |
Third party certifications
BS EN 13501-1
Solyx Vinyl Fire Certificate
