SXJ-0541 Broken Lines Gradient - Dispersing Pattern Film for Glass

Verified by manufacturer 5 months ago

Glass Films Europe Third party certifications:
  • BS EN 13501-1

    BS EN 13501-1

    Certificate type

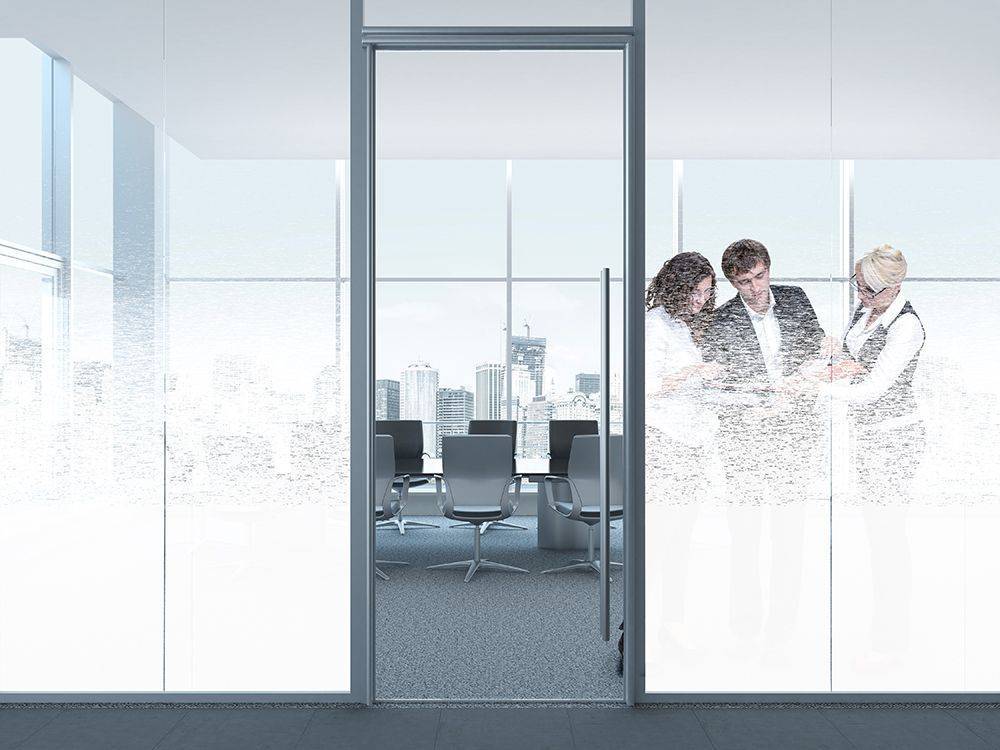

A gradient of white cracked lines, fading up from the bottom from white to clear, providing semi-privacy.

Jump to:
+44 (0)800 970 6366 Website

Application

Suitable for semi-privacy in offices and meeting rooms.

Description

A gradient of white cracked lines, fading up from the bottom from white to clear, providing semi-privacy.

The design can be extended at the bottom of the film by adding SXJ-0567 Solid White Addon (specified separately).


SOLYX & SIMGLAS Decorative Films must be installed by a Glass Films-approved window film installation company in order to retain the five-year manufacturer warranty. Please contact manufacturer to locate your nearest approved window film installer.


Features and benefits:

  • For interior use.
  • Made from 100 µm-thick SOLYX iQ polyester.
  • Flammability rating of class B-s1, d0 to BS EN 13501-1:2018.
  • Visible light transmission of 75%.
  • Supplied in roll widths of 71" (1803 mm).
  • Supplied with a silicone liner which protects the clear, pressure-sensitive adhesive.

General information

Color

Clear

White

Material

Polyester

Shape

Rectangle

Length

Bespoke

Width

1803 mm

Warranty description

Five year

Guidance for specification option:

Subject to manufacturer’s installation requirements, must be installed by a Glass Films-approved window film installation company. Consult manufacturer for details.

Uniclass

Pr_25_57_51_60 Plastics window filmsPrimary

CAWS

L40/96 Manifestation

L40/630 Manifestation

L40/95 Window film

L40/610 Window film

Product range

Gradient Glass Films

Specification data - Plastics window films

Purpose

Decorative.

Privacy.

Ultra-violet (UV) protection.

Material

SOLYX iQ polyester.

Colour

Clear/ white.

Dimensions

Guidance for specification option:

Insert required length(s).

1803 mm (71") wide as standard.

100 µm thick.

Fire performance

To BS EN 13501-1:2018, Class B-s1, d0.

Design

Gradient of white cracked lines, fading up from the bottom from white to clear.

Light

Transmittance: 75%; reflectance: 28%.

Solar Control

Absorption: 25%; rejection: 35%.

Ultraviolet (UV) resistance

98%.

Adhesive

Clear, pressure sensitive.

Sustainability data

Country of material origin

United States

Country of product manufacture

United States

Material

Polyester

Manufacturing plant location

Expected Life

Ten year

Guidance for specification option:

Up to ten years.

Third party certifications

BS EN 13501-1

BS EN 13501-1

Solyx Polyester Fire Certificate

Literature

Fire Ratings - Solyx & Simglas Decorative Glass Films

Fire Ratings - Solyx & Simglas Decorative Glass Films

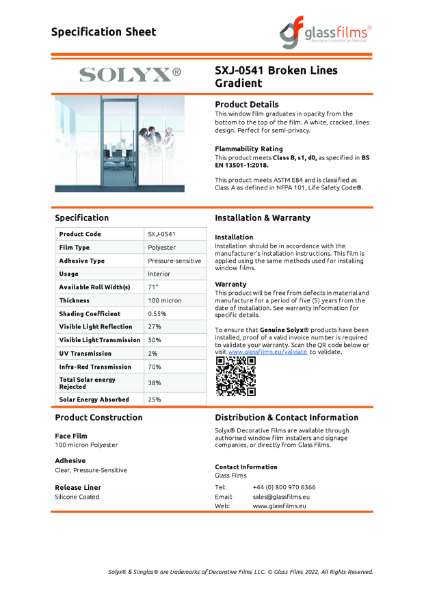

SXJ-0541 Broken Lines Gradient Specification Sheet

SXJ-0541 Broken Lines Gradient Specification Sheet
