SXJ-0545 Beach Grass Gradient - Dispersing Pattern Film for Glass
Verified by manufacturer 5 months ago
BS EN 13501-1
Certificate type

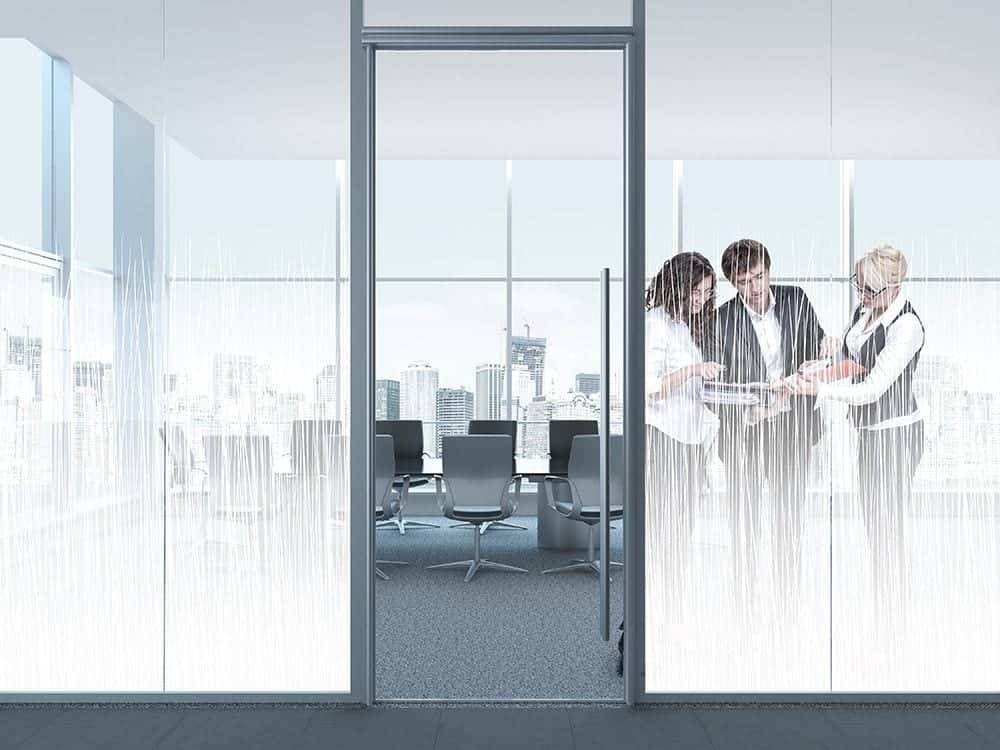

A gradient pattern of white beach grass silhouettes dispersing up from the bottom from white to clear, providing semi-privacy.
Application
Suitable for semi-privacy in offices and meeting rooms.
Description
A gradient pattern of white beach grass silhouettes dispersing up from the bottom from white to clear, providing semi-privacy.
SOLYX & SIMGLAS Decorative Films must be installed by a Glass Films-approved window film installation company in order to retain the five-year manufacturer warranty. Please contact manufacturer to locate your nearest approved window film installer.
Features and benefits:
- For interior use.
- Made from 100 µm-thick SOLYX iQ polyester.
- Flammability rating of class B-s1, d0 to BS EN 13501-1:2018.
- Visible light transmission of 75%.
- Supplied in roll widths of 71" (1803 mm).
- Supplied with a silicone liner which protects the clear, pressure-sensitive adhesive.
General information
Color | Clear White |
Material | Polyester |
Shape | Rectangle |
Length | Bespoke |
Width | 1803 mm |
Warranty description | Five year Guidance for specification option: Subject to manufacturer’s installation requirements, must be installed by a Glass Films-approved window film installation company. Consult manufacturer for details. |
Uniclass | |
CAWS | L40/96 Manifestation L40/630 Manifestation L40/95 Window film L40/610 Window film |
Product range |
Specification data - Plastics window films
Purpose | Decorative.Privacy.Ultra-violet (UV) protection. |
Material | SOLYX iQ polyester. |
Colour | Clear/ white. |
Dimensions | Guidance for specification option: Insert required length(s). 1803 mm (71") wide as standard. 100 µm thick. |
Fire performance | To BS EN 13501-1:2018, Class B-s1, d0. |
Design | Gradient pattern of white beach grass silhouettes dispersing up from the bottom from white to clear. |
Light | Transmittance: 75%; reflectance: 28%. |
Solar Control | Absorption: 25%; rejection: 35%. |
Ultraviolet (UV) resistance | >98%. |
Adhesive | Clear, pressure sensitive. Guidance for specification option: Supplied with a protective silicone liner. |
Sustainability data
Country of material origin | United States |
Country of product manufacture | United States |
Material | Polyester |
Manufacturing plant location | |
Expected Life | Ten year Guidance for specification option: Up to ten years. |
Third party certifications
BS EN 13501-1
Solyx Polyester Fire Certificate
Literature
Fire Ratings - Solyx & Simglas Decorative Glass Films
Glass Films 2021 Catalogue
SXJ-0545 Beach Grass Gradient Specification Sheet
