SXJ-0567 Solid White Addon - Opaque Film for Glass
Verified by manufacturer 5 months ago
BS EN 13501-1
Certificate type
Solid white opaque film for glass, providing high levels of privacy. Compatible with selected patterned Solyx® films.
Application

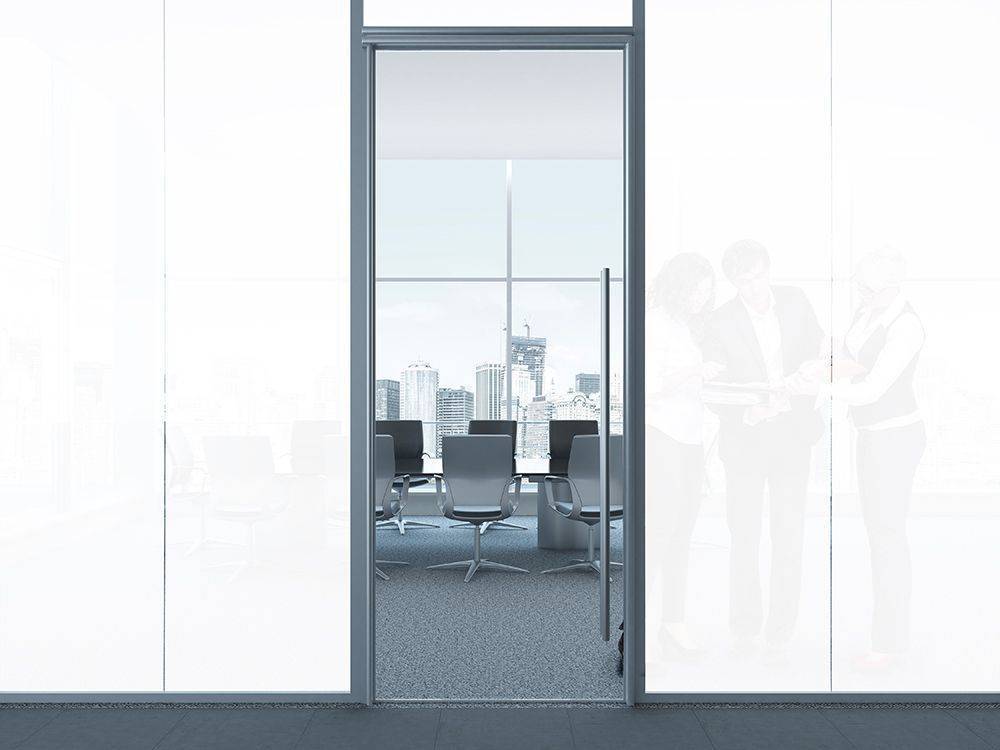

Suitable for privacy in offices and meeting rooms. Can be used in conjunction with selected patterned Solyx® films.
Description
Solid white opaque film for glass, providing high levels of privacy. Compatible with selected patterned Solyx® films.
Can be used in conjunction with the following films (all specified separately):
- SXJ-0541 Broken Lines Gradient
- SXJ-0545 Beach Grass Gradient
- SXJ-0546 Organic Cotton Gradient
- SXJ-0547 Feather Gradient
- SXJ-0549 Variable Lines Gradient
- SXJ-0594 Triangle Gradient
SOLYX & SIMGLAS Decorative Films must be installed by a Glass Films-approved window film installation company in order to retain the five-year manufacturer warranty. Please contact manufacturer to locate your nearest approved window film installer.
Features and benefits:
- For interior or exterior use.
- Made from 100 µm-thick SOLYX iQ polyester.
- Flammability rating of class B-s1, d0 to BS EN 13501-1:2018.
- Visible light transmission of 75%.
- Supplied in roll widths of 60" (1524 mm).
- Supplied with a silicone liner which protects the clear, pressure-sensitive adhesive.
General information
Color | White |
Material | Polyester |
Shape | Rectangle |
Length | Bespoke |
Width | 1473 mm |
Warranty description | Five year Guidance for specification option: Subject to manufacturer’s installation requirements, must be installed by a Glass Films-approved window film installation company. Consult manufacturer for details. |
Uniclass | |
CAWS | L40/630 Manifestation L40/95 Window film L40/610 Window film L40/96 Manifestation |
Product range |
Specification data - Plastics window films
Purpose | Decorative.Privacy.Ultra-violet (UV) protection. |
Material | SOLYX iQ polyester. |
Colour | White. |
Dimensions | Guidance for specification option: Insert required length(s). 1473 mm (58") wide as standard. 100 µm thick. |
Fire performance | To BS EN 13501-1:2018, Class B-s1, d0. |
Design | Solid (opaque). |
Light | Transmittance: 75%; reflectance: 28%. |
Solar Control | Absorption: 25%; rejection: 40%. |
Ultraviolet (UV) resistance | >98%. |
Adhesive | Clear, pressure sensitive. Guidance for specification option: Supplied with a protective silicone liner. |
Sustainability data
Country of material origin | United States |
Country of product manufacture | United States |
Material | Polyester |
Manufacturing plant location | |
Expected Life | Ten year Guidance for specification option: Up to ten years. |
Third party certifications
BS EN 13501-1
Solyx Polyester Fire Certificate
Literature
Fire Ratings - Solyx & Simglas Decorative Glass Films

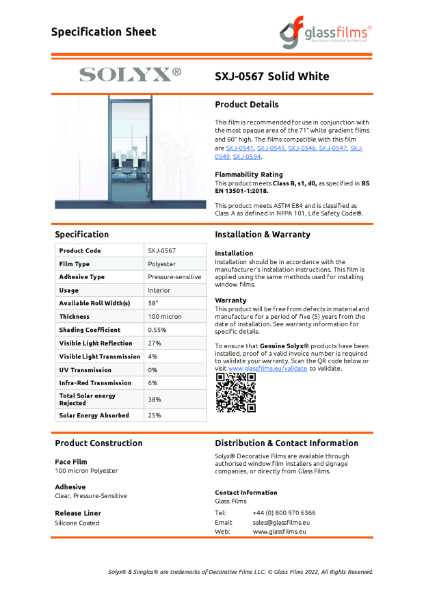

SXJ-0567 Solid White Specification Sheet
