SXJ-0571 Blades Gradient - Tapered Vertical Design White to Clear

Verified by manufacturer 5 months ago

Glass Films Europe Third party certifications:
  • BS EN 13501-1

    BS EN 13501-1

    Certificate type

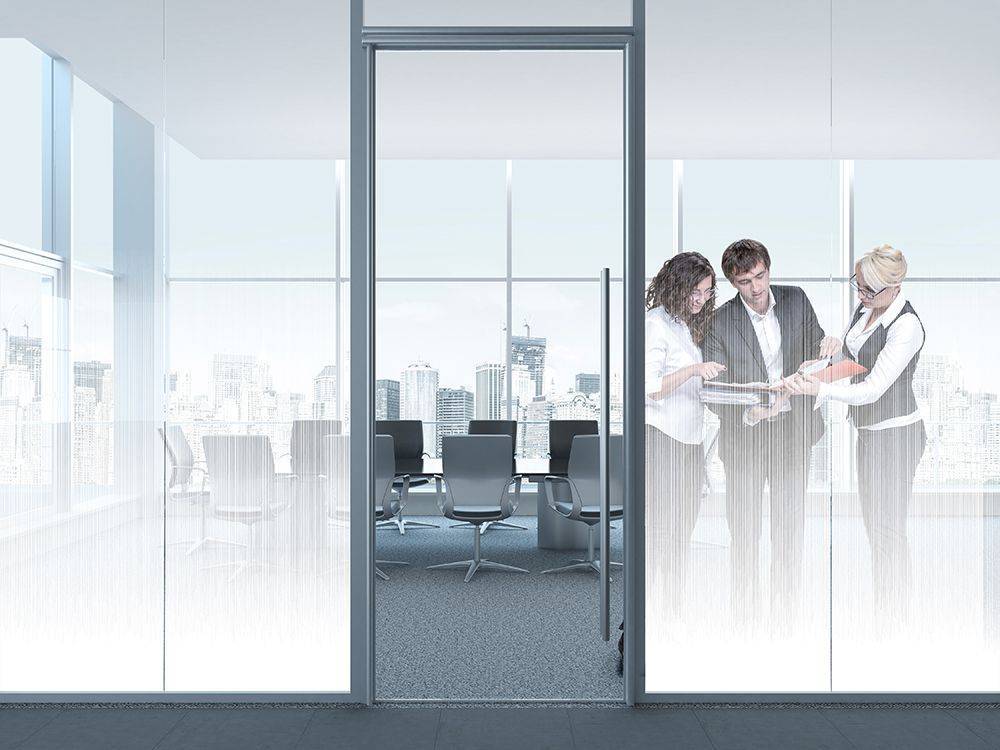

Gradient film with a design of symmetric, vertical blades of grass, fading from solid white to clear for graduated privacy.

Jump to:
+44 (0)800 970 6366 Website

Application

For privacy, decorative or architectural applications.

Suitable for direct visibility control and graduated privacy in offices and meeting rooms.

Designed for application to interior glass, single or double pane and exterior facing glass.

Description

Gradient film with a design of symmetric, vertical blades of grass, fading from solid white to clear for graduated privacy.


SOLYX & SIMGLAS Decorative Films must be installed by a Glass Films-approved window film installation company in order to retain the five-year manufacturer warranty. Please contact manufacturer to locate your nearest approved window film installer.


Features and benefits:

  • For interior use.
  • Made from 100 µm-thick durable SOLYX iQ polyester with a matte printed design.
  • Flammability rating of class B-s1, d0 to BS EN 13501-1:2018.
  • Visible light transmission of 75%.
  • Supplied in roll widths of 60" (1524 mm).
  • Supplied with a silicone liner which protects the clear, pressure-sensitive adhesive.

General information

Color

White

Clear

Finish

Matt

Material

Polyester

Shape

Rectangle

Length

Bespoke

Width

1524 mm

Warranty description

Five year

Guidance for specification option:

Subject to manufacturer’s installation requirements, must be installed by a Glass Films-approved window film installation company. Consult manufacturer for details.

Uniclass

Pr_25_57_51_60 Plastics window filmsPrimary

CAWS

L40/96 Manifestation

L40/630 Manifestation

L40/95 Window film

L40/610 Window film

Product range

Gradient Glass Films

Specification data - Plastics window films

Purpose

Decorative.

Privacy.

Guidance for specification option:

Graduated.

Material

SOLYX iQ polyester.

Colour

White fading to clear.

Guidance for specification option:

White is translucent.

Dimensions

Guidance for specification option:

Insert required length(s).

1524 mm (60") wide as standard.

100 µm thick.

Fire performance

To BS EN 13501-1:2018, Class B-s1, d0.

Design

Symmetric, vertical blades of grass.

Light

Transmittance: 75%; reflectance: 27%.

Solar Control

Absorption: 25%; rejection: 38%.

Ultraviolet (UV) resistance

98%.

Adhesive

Clear, pressure sensitive.

Guidance for specification option:

Supplied with a protective silicone liner.

Sustainability data

Country of material origin

United States

Country of product manufacture

United States

Material

Polyester

Manufacturing plant location

Expected Life

Ten year

Guidance for specification option:

Up to ten years.

Third party certifications

BS EN 13501-1

BS EN 13501-1

Solyx Polyester Fire Certificate

Literature

Fire Ratings - Solyx & Simglas Decorative Glass Films

Fire Ratings - Solyx & Simglas Decorative Glass Films

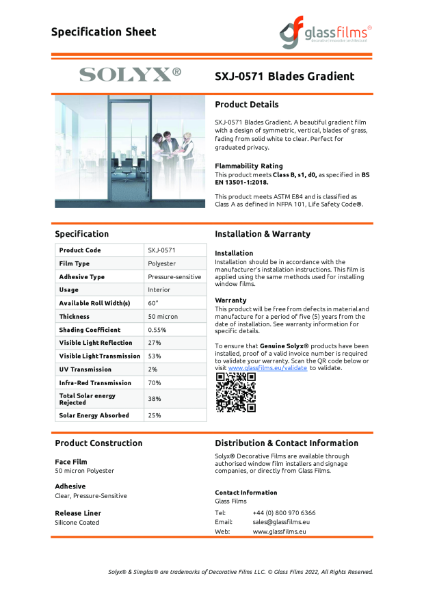

SXJ-0571 Blades Gradient Specification Sheet

SXJ-0571 Blades Gradient Specification Sheet
