TaperedPlus's Tapered PIR TissueFaced Roof Insulation in conjunction with Unilin Insulation - Bespoke Tapered Insulation Board TR/MG
Verified by manufacturer 3 months ago
EPD
Certificate type
BBA Agrément Certificate
Certificate type
Bespoke PIR tapered roof insulation board for single ply fully adhered / partially bonded built-up felt flat roof insulation systems.
Application
- Suitable for use below partially/ fully bonded roofing systems.
- Suitable for fully bonding with approved adhesive systems.
- Compatible with adhesively bonded single ply roofing membranes laid on mechanically fixed boards.
Description
Bespoke PIR tapered roof insulation board for single ply fully adhered/ partially bonded built-up felt systems.
- TaperedPlus provide a bespoke tapered insulation service.
- Unilin Thin-R TR/MG is a high performance polyisocyanurate (PIR) with mineral coated glass facers suitable for use below single ply fully adhered roof membranes, single ply waterproofing systems and partially bonded built-up felt.
- Part of a range of insulation solutions provided in conjunction with Unilin.
Features and benefits:
- High performance rigid insulation.
- Thermal conductivity as low as 0.024 W/m·K.
- Practical solution to water ponding with insulation and drainage in a single system.
- EPD certified by IGBC available from Unilin.
General information
Color | Yellow |
Material | Polyisocyanurate (PIR) |
Shape | Square |
Length | 1200 mm Guidance for specification option: Standard individual board length. Bespoke |
Width | 1200 mm Guidance for specification option: Standard individual board width. Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | J42/10 Warm deck roof covering J42/420 Rigid urethane foam insulation |
Specification data - Polyisocyanurate (PIR) foam boards
Standard | To BS EN 13165. |
Third-party certification | British Board of Agrément (BBA)-certified 11/4878. Certified B Corp. |
Fire performance | Euroclass E, Euroclass B S2 d0 on a steel deck. |
Thermal conductivity (maximum) | 0.024–0.027 W/m·K. Guidance for specification option: Consult manufacturer for details. |
Water permeability | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Water vapour permeability | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Acoustic performance | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Compressive strength at 10% deformation | >150 kPa. |
Cross section | Tapered. |
Thickness (nominal) | Guidance for specification option: Insert requirements, minimum and maximum (refer to drawing or schedule as required; note that boards are 1200 x 1200 mm as standard). Standard thickness range is 30–400 mm. |
Face size (length x width) | 1200 x 1200 mm boards as standard. |
Density | 32 kg/m³. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0%. |
Facing | Mineral coated glass facer to both sides. Guidance for specification option: Non-reversible. |
Edges | Square. |
Water vapour resistance | >344 MN·s/gm. |
Fixing | Guidance for specification option: Insert requirements; insulation can be mechanically fixed or bonded to the substrate. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
A1-A3 (production stage) | Embodied carbon as defined in BS EN 15804 |
Normalised unit | |
Declared unit | 12.9 kg CO₂ eq/unit Certified |
Recyclability | 0 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Product certifications
Certified
Product certifications
EPD

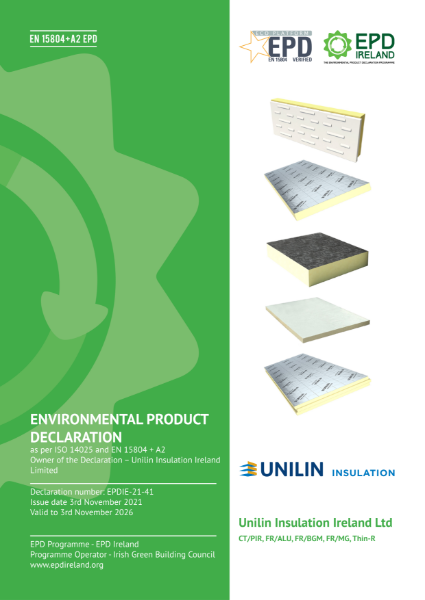

Unilin's EPD
BBA Agrément Certificate

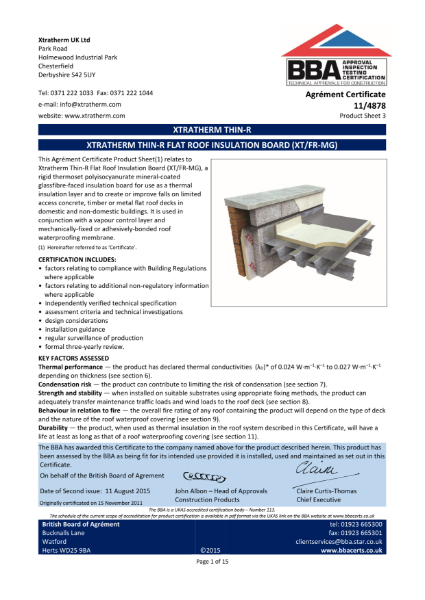

Unilin TR/MG BBA Cert
Literature
Literature type
Unilin Health & Saftey

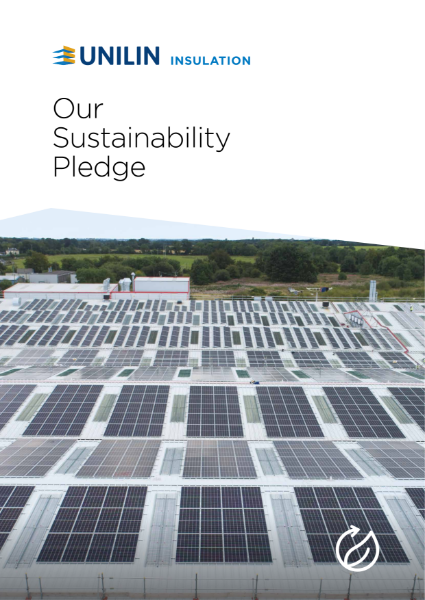

Unilin Sustainability Brochure

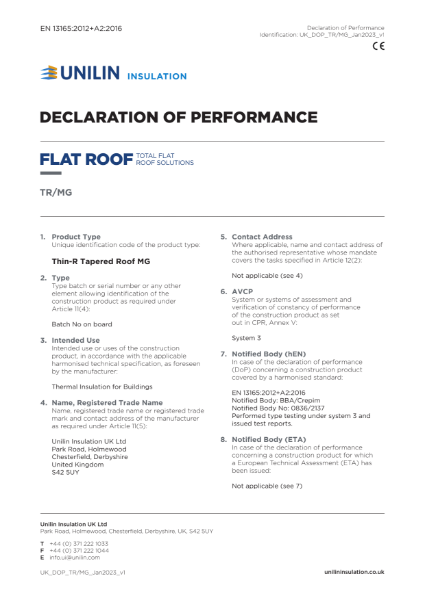

Unilin TR/MG Declaration Of Performance

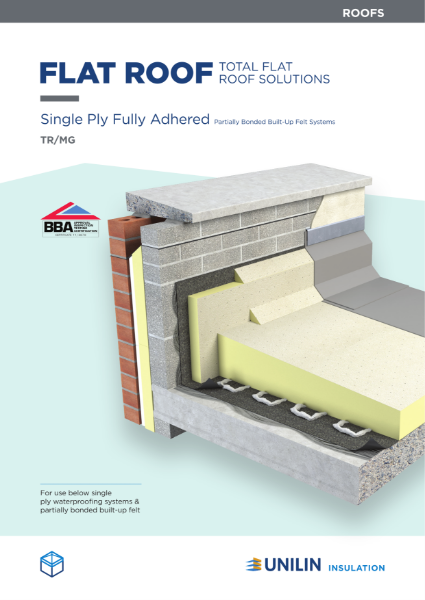

Unilin TR/MG Product Brochure
