Tarasafe Ultra – Sheet - New - Safety Flooring

Verified by manufacturer 7 months ago

7724 Calcium

Gerflor Flooring UK Limited Variant:
Third party certifications:
  • EPD

    EPD

    Certificate type

Multi-layered, slip resistant, vinyl safety sheet floor covering with deeply inlaid mineral crystal particles.

Jump to:
BOS
01625 428 922 Website

Application

Tarasafe Ultra is a commercial safety floor suitable for most contract applications and is popular in education and healthcare environments.

Description


Tarasafe Ultra is a hardwearing safety flooring collection that comprises a PVC wear layer with deeply inlaid mineral crystal particles and coloured chips for a decorative design. It has a patented Sparclean® surface treatment for product performance in terms of stain and chemical resistance as well as delivering ease of maintenance and energy savings. Designed for high traffic commercial applications, Tarasafe Ultra is reinforced with a glass fibre grid with a compact backing.


Features and benefits:

  • SparClean® surface treatment for improved stain resistance and durability.
  • Hygienic – easy and cost-effective maintenance, with less water and detergent use.
  • HSE >36 PTV for slip resistance and >20 µm surface roughness/ R10.
  • Decorative colour range - 18 references.
  • Durable construction – suitable for high traffic applications.
  • Highly flexible, easy to install and weld.
  • Compatible with the Gerflor Clean Corner system.
  • Contemporary matt finish.
  • 100% recyclable and contains 29% recycled content.



Installation and maintenance:

Should be installed in accordance with the BS 8203:2017 Code of practice for installation of resilient floor coverings. Installation and maintenance instructions are available. Can be installed with the patented Clean Corner System for ensured hygiene.

General information

Color

Other

Guidance for specification option:

Please see specification data for options.

White

Beige

Brown

Red

Show more

Finish

Matt

Material

Vinyl

Guidance for specification option:

 With deeply inlaid mineral crystal particles and coloured chips.

Shape

Rectangle

Length

20000 mm

Width

2000 mm

Height

2.0 mm

Guidance for specification option:

Total thickness to EN ISO 24346.

Warranty description

12 year

Uniclass

Pr_35_57_71_61 Particle-based enhanced slip-resistant polyvinyl chloride (PVC) sheetsPrimary
Pr_35_57_71_67 Polyvinyl chloride (PVC) sheets

CAWS

M50/20 Sheeting

M50/150 Sheeting

Product range

Sheeting / Vinyl Safety Flooring

Specification data - Particle-based enhanced slip-resistant polyvinyl chloride (PVC) sheets

Standard

To BS EN ISO 10582.

Use class

To BS EN ISO 10874, class 34-43.

Guidance for specification option:

Commercial, very heavy – Light industrial, heavy.

Slip potential

-

Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum)

R10/ >36 PTV.

Guidance for specification option:

To DIN 51130/ To BS 7976.

Surface roughness (Rz) (minimum)

>20 µm.

Guidance for specification option:

To BS 7976

Recycled content

29%.

Width

2000 mm.

Thickness

2.0 mm.

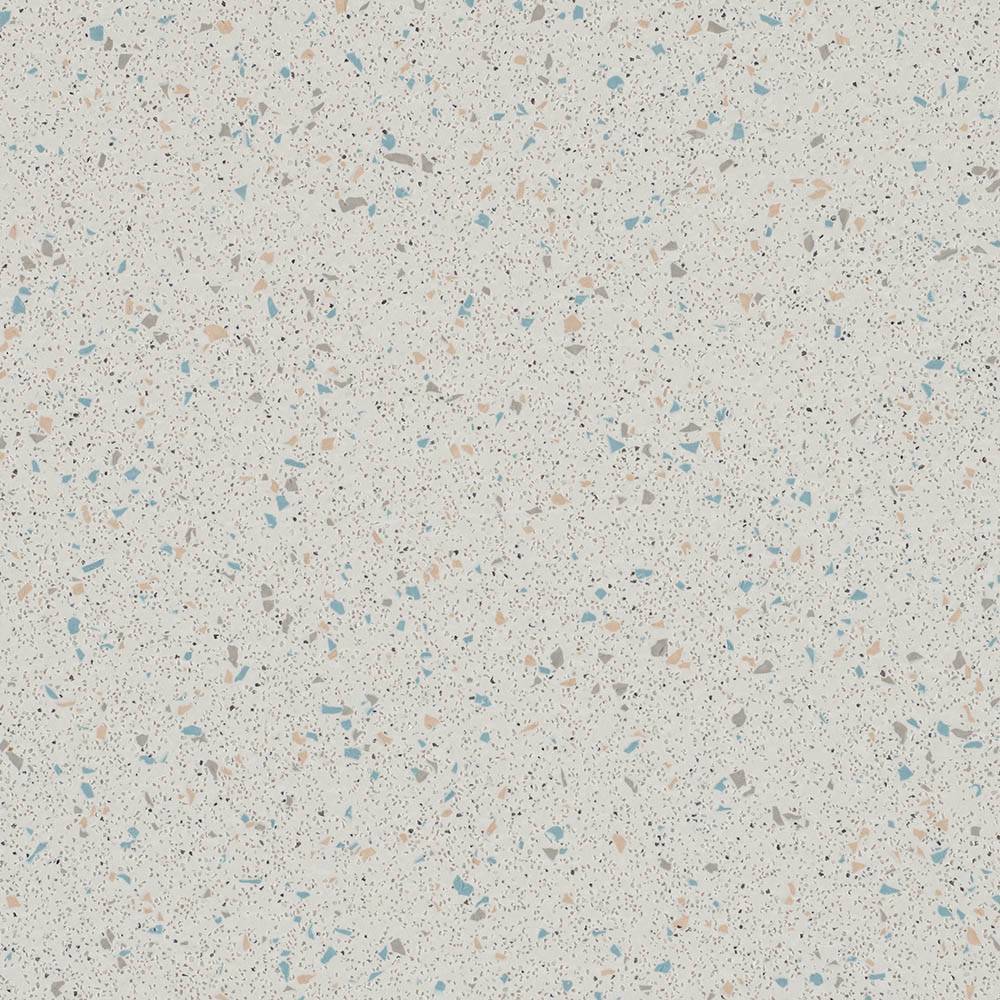

Colour and pattern

Calcium.

Guidance for specification option:

NCS: 2002-Y.

Length

20 m.

Wear layer

0.85 mm.

Guidance for specification option:

Thickness of wearlayer to EN ISO 24340.

Weight

2360 g/m².

Static electricity

<2 kV.

Guidance for specification option:

To BS EN 1815 static electricity electrical propensity.

Fire classification (EN 13501-1)

Bfl-s1.

ThermalConductivity

0.25 W/m·K.

Guidance for specification option:

Thermal conductivity to EN ISO 10456.

Surface treatment

SparClean®.

Accessories

Clean Corner system.

Co-ordinating weld rods

Wear group

T.

Binder

Type I.

Guidance for specification option:

Binder Content to BS EN ISO 10582.

Residual indentation (to EN-ISO 24343-1)

≤0.03 mm.

VOC emissions

<100 µg/m³.

Guidance for specification option:

TVOC after 28 days (to ISO 16000-6)

Colour (Light reflectance value (LRV)

53.3.

Sustainability data

Contains Red List materials

No

Material

Vinyl

Guidance for specification option:

 With deeply inlaid mineral crystal particles and coloured chips.

Recyclability

100% recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

29 %

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

EPD

EPD

EPD - Tarasafe

Literature

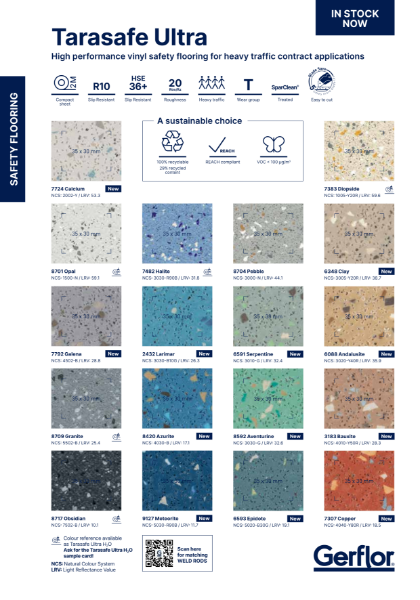

Tarasafe Ultra - Card

Tarasafe Ultra - Card

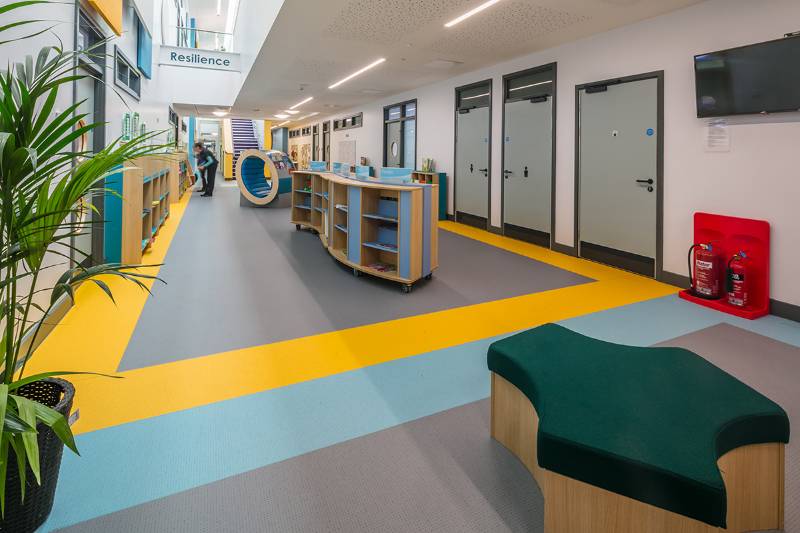

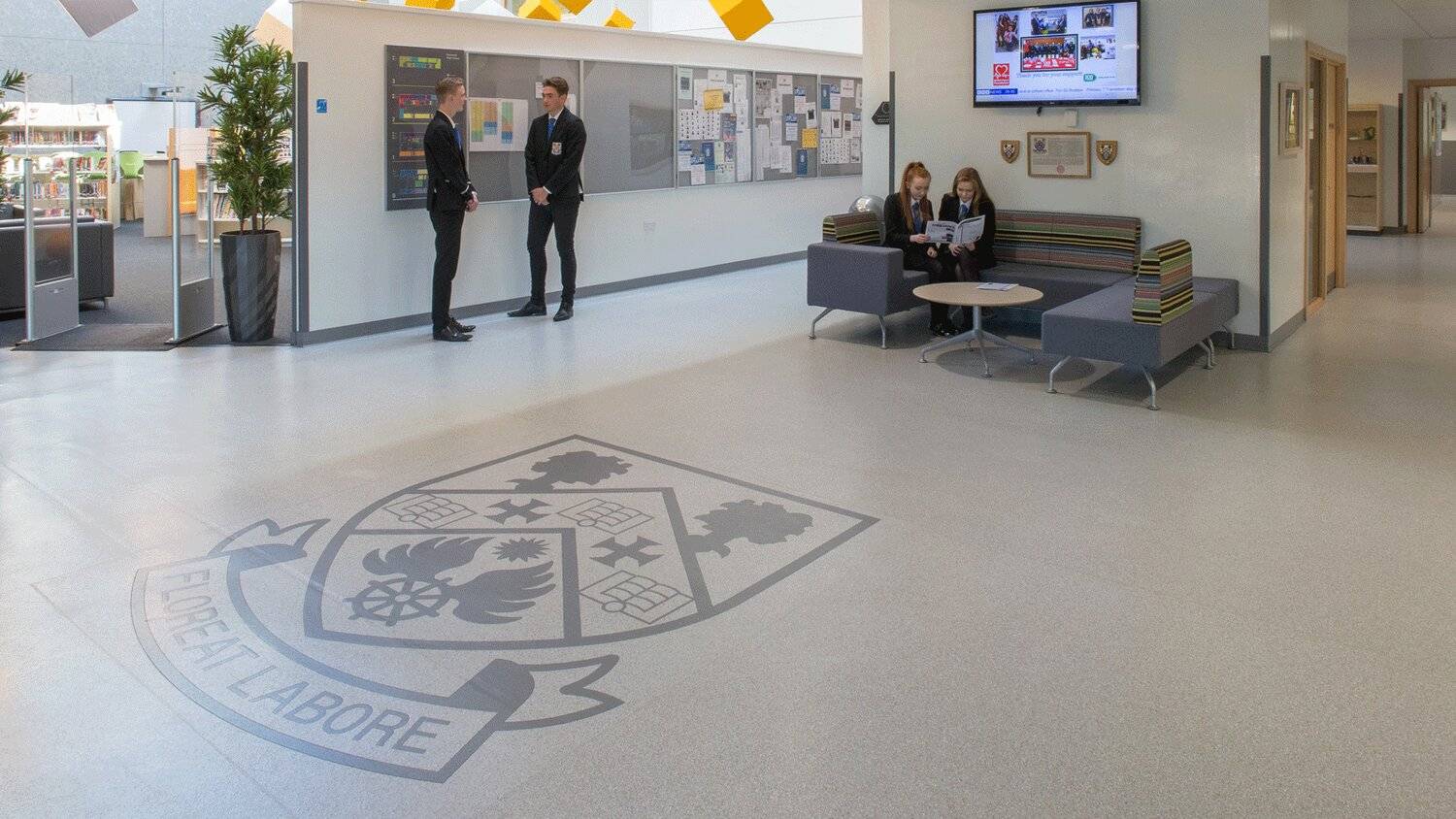

Case studies

Pencoed Primary School

Pencoed Primary School

Quayside House

Quayside House
