Teaching Wall - Tray Unit

Verified by manufacturer over a year ago

Nu-Style Products Ltd

Providing a complete envelope solution for the education furniture market, we design, manufacture and install various furniture ranges for schools, colleges and universities.

Jump to:
BOS
+44 (0)1224 823000 Website

Application

Schools, nursery, offices, hospitals, airports

Description

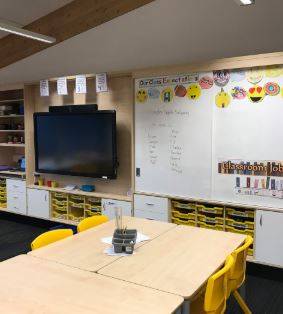

Teaching Wall - Tray base unit with integral pull-out trays suitable for use in teaching walls.


Features and benefits:

  • Compatible with other products in the Nu-Style educational furniture range.
  • Available in a wide range of colours.
  • Units supplied fully assembled with pull-out plastic trays, various depths available.

General information

Color

-

Manufacturer guidance

18 mm-thick MFC:

A selection of colours from the Swiss Krono One World Collection is available; consult literature for details.

20 mm-thick HPL:

A selection of colours from the Formica Fundamentals range is available, as well as colours by Formica and Polyrey; consult literature for details.

Finish

Melamine-faced

Laminate

Material

Melamine-faced chipboard (MFC)

High-pressure laminate (HPL)

Shape

Rectangle

Uniclass

Pr_40_30_87_12 Classroom storage unitsPrimary

CAWS

K30/250 Storage walls

N10/135 Storage and display units

Specification data - Classroom storage units

Storage units

Tray storage.

Dimensions

-

Manufacturer guidance

Insert requirements:

Height (excluding plinth): 440–1048 mm.

Width: 346–1056 mm.

Plinth: 100–120 mm.

Material

8 mm-thick melamine-faced chipboard (MFC).

Guidance for specification option:

Swiss Krono; square edged/ lipped with 2 mm-thick polyvinyl chloride (PVC).

20 mm-thick high-pressure laminate (HPL).

Guidance for specification option:

18 mm-thick moisture resistant medium density fibreboard (MDF) with high-pressure laminate on both sides. Square edged/ lipped with 2 mm-thick acrylonitrile butadiene styrene (ABS).

Finish

As material.

Colour

-

Manufacturer guidance

18 mm-thick MFC:

A selection of colours from the Swiss Krono One World Collection is available; consult literature for details.

20 mm-thick HPL:

A selection of colours from the Formica Fundamentals range is available, as well as colours by Formica and Polyrey; consult literature for details.

Exposed edges

Plastics strip.

Product Reference

Teaching Wall - Tray Unit

Trays

Pull-out tray

Guidance for specification option:

Plastic, available in various depths.

Consult manufacturer for details and insert requirements.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit

Revit 2017

1
