Technowood Natural Wood Veneer Coated Aluminium Siding - Rainscreen Cladding

Verified by manufacturer 14 hours ago

ESD-10

Technowood UK Variant:
Third party certifications:
  • BS EN 13501-1

    BS EN 13501-1

    Certificate type

  • FSC

    FSC

    Certificate type

  • EPD

    EPD

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

Wood veneered aluminium rain screen cladding. Great alternative to traditional timber or composite materials as it combines the nature of real wood with the longevity & stability of aluminium.

Jump to:
+44 1494 773344 Website

Application

Suitable for exterior and interior use in place of timber/wood .

Description

Aluminium sidings with a natural wood veneer.


Complementary finishing and corner profiles are available, specified separately.


Features and benefits:

  • Provides the visual and tactile effects of timber.
  • Requires 98% less timber than equivalent solid timber/wood products.
  • Minimal maintenance required.
  • Standard length on profiles is 6 metres and can be produced shorter or up to 8 metres upon special request.
  • Eight colours available as standard; bespoke finishes can be made for larger quantities without additional fee. Colour matching service available.


Benefits of aluminium:

  • Low density and very light compared to steel or copper.
  • Class A2 fire resistant.
  • Corrosion resistant.
  • Light and durable.
  • Easy to give different forms.
  • Easy to recycle.
  • Very long life span in almost every condition.
  • Sustainable

General information

Color

Beige

Black

Brown

Copper

Cream

Show more

Manufacturer guidance

Eight colours available.

Finish

Veneered

Guidance for specification option:

Wood effect.

Material

Aluminium

Shape

Other

Rectangle

Length

6000 mm

Bespoke

Width

100 mm

150 mm

200 mm

Height

11 mm

Guidance for specification option:

100 mm width.

17.5 mm

Guidance for specification option:

150 and 200 mm widths.

Warranty description

20 year

Uniclass

Pr_25_71_14_02 Aluminium cassette panelsPrimary

CAWS

H92/120 Rainscreen cladding

G20/99 Fascias/ barges/ soffits

G20/950 Fascias/ barges/ soffits

Specification data - Aluminium cassette panels

Alloy

-

Grade

6063.

Sheet thickness

1.5 mm.

Panel size

6000 x 100 x 11 mm.

Guidance for specification option:

Standard length x width x overall height/depth.

Bespoke x 100 x 11 mm.

Guidance for specification option:

Length x width x overall height/depth.

Length can be produced shorter than 6 m or up to 8 m upon special request; consult manufacturer and insert requirements.

Finish

-

Material

Teak veneer.

Guidance for specification option:

Suitable for external environments; water-resistant.

High resistance to insects and fungal damage.

Mahogany veneer.

Guidance for specification option:

Hardwood, suitable for varnishing. Multi-purpose.

Walnut veneer.

Oak veneer.

Guidance for specification option:

Resistant to weather conditions and humidity.

Ash veneer.

Bamboo veneer.

Manufacturer guidance

FSC-certified veneer, applied to four sides as standard. Consult manufacturer if veneer to three sides only is required.


Specific colour production can be made for orders above 1000 linear metres; consult manufacturer for details.

Thickness

Manufacturer's standard.

Colour

TW3901 (light natural).

TW3902 (dark natural).

TW3903 (dark brown).

TW3904 (natural).

TW3905 (darkest brown).

TW3908 (anthracite).

TW3909 (off white).

TW3910 (jet black).

Bespoke.

Guidance for specification option:

Custom colours are available on high volume orders; consult manufacturer for details.

Reaction to fire

-

Panel external face

Class A2.

Panel internal face

Class A1.

Fire rating for panels

A2, s1, d0.

Sustainability data

Contains Red List materials

No

Country of material origin

Turkey

Country of product manufacture

Turkey

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

50 %

Third party certifications

Third party certifications

BS EN 13501-1

BS EN 13501-1

Euroclass A2-s1,d0 Classification

FSC

FSC

Chain of Custody Certification BM Trada

EPD

EPD

Environmental Product Declaration - Wood veneered aluminium

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

Literature

Technowood Alu Data sheet

Technowood Alu Data sheet

TECHNOWOOD VARNISH VENEER CHART

TECHNOWOOD VARNISH VENEER CHART

Artificial Weathering Test report

Artificial Weathering Test report

Salt spray test

Salt spray test

Technowood Glue Data sheet

Technowood Glue Data sheet

Technowood Varnish Data Sheet

Technowood Varnish Data Sheet

Technowood Veneer Data Sheet

Technowood Veneer Data Sheet

Case studies

Aluminium cladding that looks like real timber

Aluminium cladding that looks like real timber

A NEXT LEVEL PROJECT USING A2 FR RATED CLADDING BY TECHNOWOOD

A NEXT LEVEL PROJECT USING A2 FR RATED CLADDING BY TECHNOWOOD

The best aluminium cladding for private residence

The best aluminium cladding for private residence

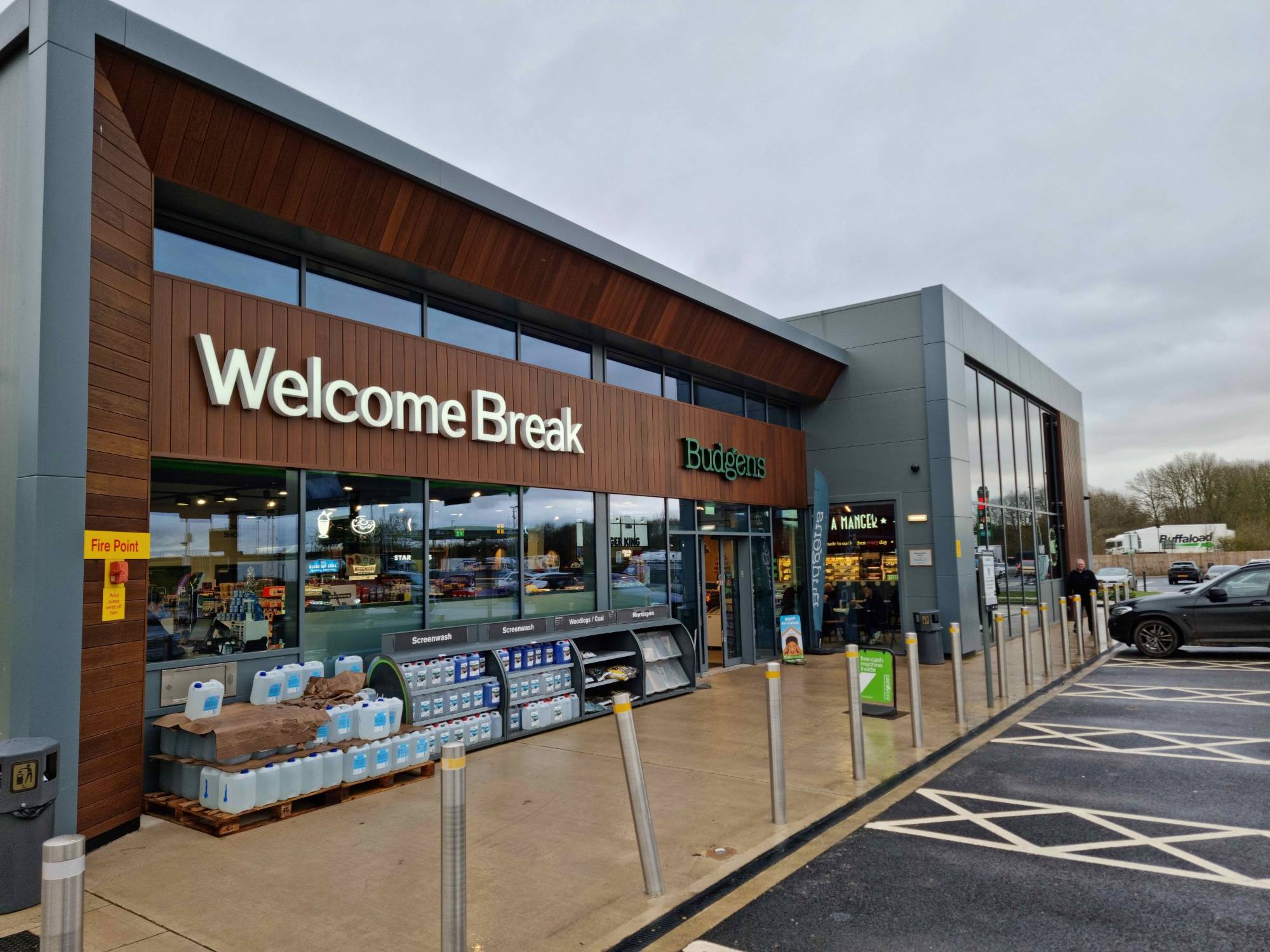

Commercial rainscreen cladding at Welcome Break services
