Tessera Outline Planks - Tufted carpet tile

Verified by manufacturer 4 months ago

Forbo Flooring Systems Third party certifications:
  • Certificate of Conformity

    Certificate type

Tufted, low loop pile carpet tiles in plank format, the subtly stripped design of Outline planks is perfectly designed to work alongside it's Layout counterparts.

Jump to:
+44 (0)800 093 5258 Website

Application

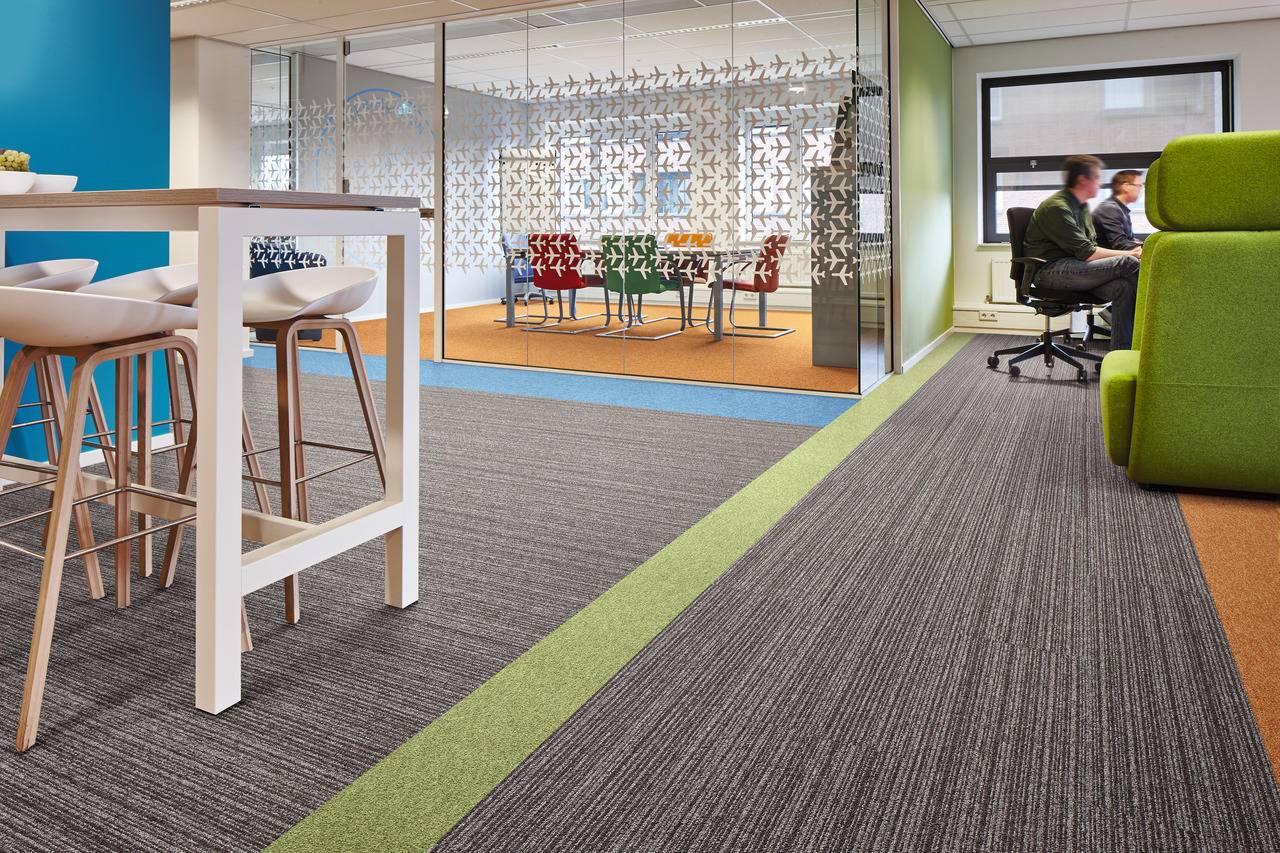

For internal use in all busy commercial and public sector locations.

Description

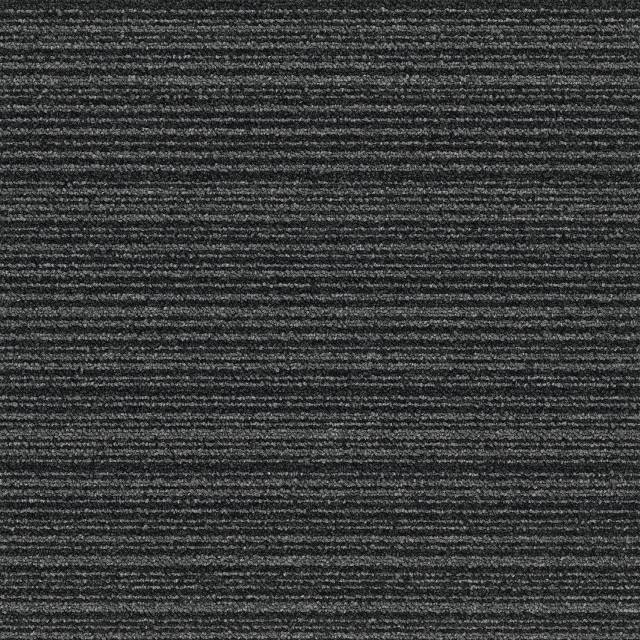

Subtly textured, tufted, striped, low loop pile carpet planks.


Features and benefits:

  • Made with 100% renewable electricity.
  • Investment in an extruder has reduced bitumen usage by 50%.
  • Also available in SOFTbac® secondary backing.
  • Manufactured from 100% solution-dyed nylon 6.
  • Combinations of Outline and Layout allow complete freedom of expression when creating connections, highlights and transitions, enhancing any style of scheme.
  • Can be returned to Forbo for reprocessing using a 'Back to the Floor' initiative.


Method of laying:

Brick, herringbone, double herringbone, half-drop or weave.

General information

Color

Blue

Brown

Grey

Silver

Finish

Tufted

Material

Nylon

Shape

Rectangle

Length

1000 mm

Width

250 mm

Height

5.8 mm

Warranty description

Ten year

Uniclass

Pr_35_57_11_62 Pile carpet tilesPrimary

CAWS

M50/130 Carpet tiling

M50/15 Carpet tiling

Product range

Tessera Carpet Tiles

Specification data - Pile carpet tiles

Style

Tufted low loop pile carpet tile.

Material

100% solution dyed Nylon 6.

Classification

-

Standard

To BS EN 1307 and 14041.

Level of use class

Class 33.

Recycled content

61.77%.

Size

1000 x 250 mm.

Colour and pattern

3100PL Plasmatron.

3101PL Colabottle.

3102PL Soda.

3107PL Bubblegum.

Total thickness

5.8 mm ±10%.

Pile composition

100% polyamide 6.

Dye method

100% solution dyed.

Stitch density

193 060 per m² ±10%.

Pile weight after shearing

580 g/m² ±10%.

Total weight

3895 gsm ±10%.

Castor chair use (to BS EN 985)

Minimum R value: ≥2.4.

Light fastness (to BS EN ISO 105 B02)

≥6.

Dimensional stability (to BS EN 986)

≤0.2%.

Impact sound reduction

27 dB.

Ska Rating

Meets Ska Rating Criteria for M12 soft floor coverings in both office and retail schemes.

Reaction to fire (to EN 13501-1)

BfI-s1.

Slip resistance (to EN 13893)

DS: ≥0.30.

Static dissipative (to BS ISO 10965)

<1 x 10^9 Ω.

Body Voltage (to EN 1815)

Pass (<2 kV).

Adhesive

Not required.

542 Eurofix Tack Plus solvent free release system.

IOBAC MagTabs® adhesive free installation system.

Pile height above backing

2.9 mm ± 0.5 mm.

Primary backing

Polyester.

Secondary backing

Modified bitumen and polyester fleece- standard.

Edging

Not required.

As per 740.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Nylon

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

18.1 kg CO₂ eq/m²

Self declared

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

61.77 %

Third party certifications

Certificate of Conformity

Certificate of Conformity

SA8000 Management System Certification Certificate

Literature

Forbo Tessera Layout and Outline Brochure

Forbo Tessera Layout and Outline Brochure

Forbo Tessera LRV and DSDC Accreditation Overview

Forbo Tessera LRV and DSDC Accreditation Overview

Forbo Product Portfolio 2022

Forbo Product Portfolio 2022
