Tessera Teviot - Tufted carpet tile

Verified by manufacturer 15 days ago

Forbo Flooring Systems Third party certifications:
  • EPD

    EPD

    Certificate type

  • Certificate of Conformity

    Certificate type

Suitable for every type of commercial installation, Tessera Teviot carpet tiles can be specified with confidence throughout the building.

Jump to:
+44 (0)800 093 5258 Website

Application

Internal use, all busy commercial and public sector locations.

Description

A low-level loop pile carpet tile, manufactured from 100% space-dyed polyamide.


Features and benefits:

  • Also available in SOFTbac® secondary backing.
  • Manufactured from 100% solution dyed Aquafil polyamide.
  • Made with 100% renewable electricity.
  • Investment in an extruder has reduced bitumen usage by 50%.
  • Offers soil-hiding properties.
  • Has the resilience and durability needed to contend with heavy traffic conditions often found in busy office and education environments.


Method of laying:

  • Monolithic, quarter-turn or tessellated.

General information

Color

Black

Blue

Bronze

Brown

Cream

Show more

Finish

Tufted

Material

Polyamide

Shape

Square

Length

500 mm

Width

500 mm

Height

5.7 mm

Warranty description

Ten year

Guidance for specification option:

SOFTbac®: 15 year.

Uniclass

Pr_35_57_11_62 Pile carpet tilesPrimary

CAWS

M50/130 Carpet tiling

M50/15 Carpet tiling

Product range

Tessera Carpet Tiles

Specification data - Pile carpet tiles

Style

Tufted low loop pile carpet tile.

Material

100% solution dyed polyamide with polyester/ nylon backing.

Classification

-

Standard

To BS EN 1307 and 14041.

Level of use class

Class 33.

Recycled content

62%.

Size

500 x 500 mm.

Colour and pattern

4122 Nightsky.

4123 Midnight blue.

4127 Deep ocean.

4132 Arctic green.

4351 Jet.

4354 Dark grey.

4356 Mid blue.

4357 Mid grey.

4358 Light grey.

4364 Brown.

4368 Beige.

4372 Seal.

4376 Mercury.

4378 Malt.

4379 suede.

4380 Blackcurrant.

4384 Sable.

4385 Neptune.

4386 Foliage.

4388 Meadow.

4207 Ercu.

4211 Sandy.

4206 Olea.

4208 Dusk.

4203 Cobblestone.

4204 Blue Moon.

4202 Buttercup.

4201 Sage.

4209 Clementine.

4210 Cerise.

4352 Navy.

4205 Chilli.

Total thickness

5.7 mm ±10%.

Pile composition

100% Aquafil polyamide.

Dye method

100% solution dyed.

Stitch density

197,000 per m² ±10%.

Pile weight after shearing

540 g/m² ±10%.

Total weight

3855 gsm ±10%.

Castor chair use (to BS EN 985)

Minimum R value: ≥2.4.

Light fastness (to BS EN ISO 105 B02)

≥5.

Dimensional stability (to BS EN 986)

≤0.2%.

Impact sound reduction

25 dB.

Ska Rating

Meets Ska Rating Criteria for M12 soft floor coverings in both office and retail schemes.

Reaction to fire (to EN 13501-1)

BfI-s1.

Slip resistance (to EN 13893)

DS: ≥0.30.

Body Voltage (to EN 1815)

Pass (<2 kV).

Adhesive

Not required.

542 Eurofix Tack Plus solvent free release system.

IOBAC MagTabs® adhesive free installation system.

Pile height above backing

2.8 mm ±0.5 mm.

Primary backing

Polyester, nylon.

Secondary backing

Modified bitumen and polyester fleece- standard.

SOFTbac.

Static dissipative (to BS ISO 10965)

<1 x 10^9 Ω.

Edging

Not required.

As per 740.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Polyamide

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

4.98 kg CO₂ eq/m²

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

62 %

Third party certifications

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

EPD

EPD

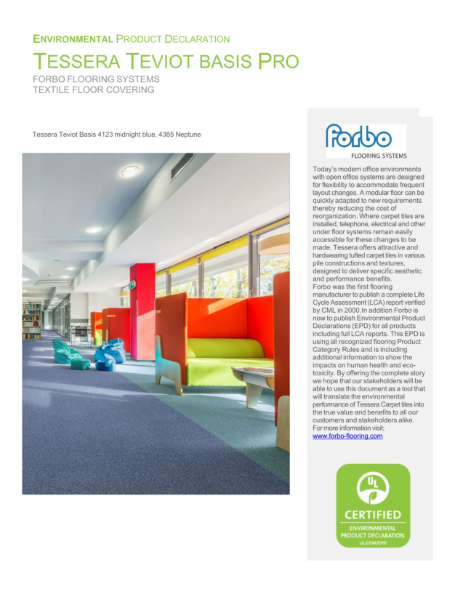

Tessera Teviot Environmental Product Declaration

Certificate of Conformity

Certificate of Conformity

SA8000 Management System Certification Certificate

Literature

Forbo Tessera LRV and DSDC Accreditation Overview

Forbo Tessera LRV and DSDC Accreditation Overview

Forbo Product Portfolio 2022

Forbo Product Portfolio 2022
