ThermoFoam Enverge Sucraseal Open Cell Spray Foam Insulation

Verified by manufacturer 7 months ago

ThermoFoam Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • Warringtonfire

    Warringtonfire

    Certificate type

Open Cell Spray Foam Insulation

Jump to:
+44 (0) 1208 832602 Website

Application

Open cell spray foam insulation suitable for:

  • Walls.
  • Pitched Roofs.
  • Flat Roofs.
  • Attics Floor.
  • Ceilings.
  • Crawlspaces (Ventilated in low humidity environments).
  • Ducts.
  • Interior applications.

Description

Use Cases:


The product can be used as an insulation system in the following applications:


  • Pitched Roof
  • External Wall (Interior side)
  • Suspended Floor


The product can be installed in these assemblies based on the following detail:

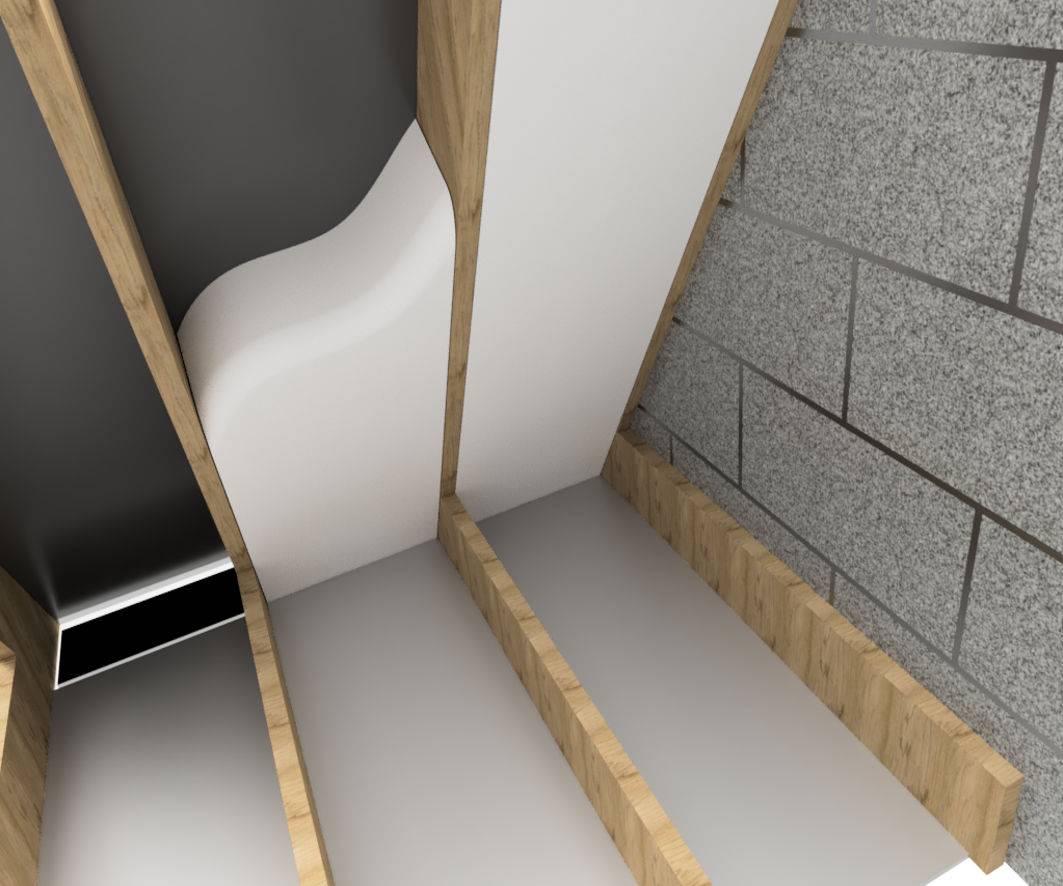

  • Pitched roof insulation (low resistance roof membranes) - the product can be spray-applied between roof rafters directly to low-resistance roof membranes to create an airtight thermal insulation system. Where required, an AVCL (Air and Vapour Control Layer) or Intelligent Membrane can be installed on the warm side of the insulation to protect against interstitial condensation.
  • External Walls (interior applications only) - the product can be spray-applied between wall studs on the interior face of the wall assembly. The product can be spray-applied to masonry, timber or breathable membranes where there is adequate protection from exterior moisture ingress. Where required, an AVCL (Air and Vapour Control Layer) or Intelligent Membrane can be installed on the warm side of the insulation to protect against interstitial condensation.
  • Suspended Floors (underside of suspended floor in crawlspaces) - the product can be spray-applied between floor joists to the underside of the suspended floor deck. Where required, an AVCL (Air and Vapour Control Layer) or Intelligent Membrane can be installed on the warm side of the insulation to protect against interstitial condensation.


Product Description:

A spray-applied, two component, open cell polyurethane foam insulation system. The product is formed by the reaction of patented resin blend and polymeric methylene diphenyl diisocyanate. The resin blend is comprised of Polyols, additives, fire retardants and blowing agents.


The spray applied nature allows the material to flow into voids and seal cracks, expanding to form a seamless thermal envelope.


Additional characteristics include high yield, high R-value, low U-Value (resistance to heat flow), high renewable content and

excellent fire resistance. The product is available in two

densities.


Thermal Barriers:

The product must be separated from the interior of the building (occupied space) by an approved fire lining such as Gypsum plasterboard when installed into a habitable area. In non-habitable areas, the product does not need to be covered with an approved fire lining.


The product has a BS476 Part 7: Class 1 rating for surface spread of flame, the UK's only Open Cell density with this rating. A Euroclass B rating can be achieved when covered with an intumescent DC315 coating.


Product Benefits:


The product has numerous benefits over traditional pre-manufactured insulation. The product meets current Building Regulations and provides natural airtightness during installation.


  • Good thermal performance with a low thermal conductivity of 0.039 W/mK.
  • Vapour permeable to enable vapour migration through building assemblies.
  • Airtight through in-situ manufacturing and expansion of the product within the roof, wall and floor assembly.
  • Fast to install and can reduce the project timeline whilst reducing wastage and off-cuts compared to traditional insulation.
  • Low Global Warming Potential of 1 and manufactured sustainably using recycled content where possible.
  • Installed by ThermoFoam-approved applicators.



General information

Color

White

Yellow

Finish

Textured

Material

Polyurethane (PUR)

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

25 year

Uniclass

Pr_25_31_28_66 Polyurethane (PUR) injected foam insulationPrimary

CAWS

P10/205 Insulation sprayed between studs

P11/55 Polyurethane foam cavity wall stabilization system

P11/240 Polyurethane foam cavity fill

P10/147 Polyurethane foam sprayed between rafters

Specification data - Polyurethane (PUR) injected foam insulation

Standard

To BS EN 14315-1.

Third-party certification

British Board of Agrément (23/6845).

Thermal conductivity (maximum)

0.039–0.040 W·m–1·K–1.

Guidance for specification option:

Depending on thickness.

Fire performance

To BS 476-7: Class 1.

Apparent density

To ASTM D-1622, 0.5 lbs/ft³ (nominal).

Water vapour permeability

To ASTM E-96, ~20 perm-in.

Colour

Natural white/ off-white.

Water absorption

To BS EN 1609: 9.3 kg/m².

Water vapour resistance

To BS EN 12086: 8.8(U).

Resistance

Mechanical Resistance and Stability: To BS EN 14315-1: 34 (kPA).

Sustainability data

Contains Red List materials

No

Country of material origin

United States

Country of product manufacture

United States

Recyclability

If removed from substrate, can be re-purposed and used as drainage for plant nurseries.

Manufacturer guidance

Please consult manufacturer for details.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

17 %

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

BBA Certificate - Sucraseal - External Walls

BBA Agrément Certificate

BBA Agrément Certificate

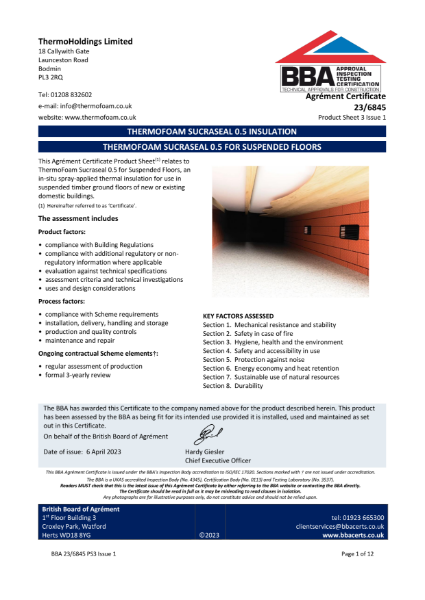

BBA Certificate - Sucraseal - Floor

BBA Agrément Certificate

BBA Agrément Certificate

BBA Certificate - Sucraseal - Pitched Roof Insulation

Warringtonfire

Warringtonfire

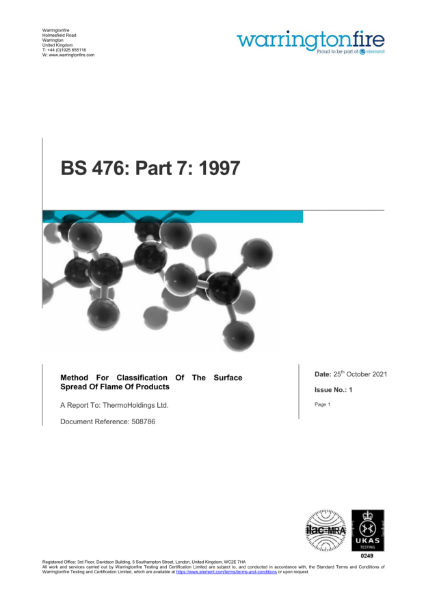

Warringtonfire - Sucraseal - BS476 Part 7 Class 1
