Application

Designed to accommodate and provide a smooth transition from one floor level to another.

Description

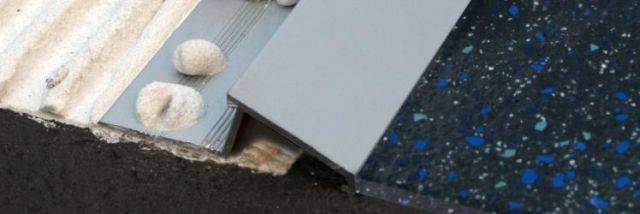

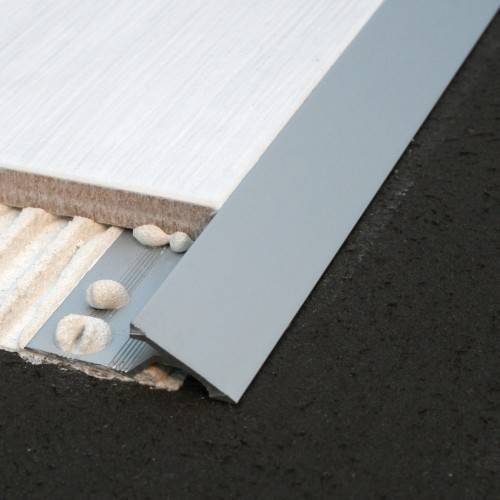

An aluminum tile in ramp is designed to accommodate and provide a smooth transition from one-floor level to another. The RSA profile is available in 10, 12 and 15 mm depths and reduces to zero which offers an opportunity for use in some commercial applications

General information

Color

Silver

Finish

Matt

Mill

Material

Aluminium

Length

2500 mm

Width

16 mm

19 mm

20 mm

23 mm

Height

10 mm

12 mm

Uniclass

Pr_35_90_31_58 One-part floor transition stripsPrimary

CAWS

M40/10 Natural stone covering to

M40/110 Tiling to

M40/115 Natural stone covering to

M40/12 Mosaic to

M40/120 Mosaic to

M40/5 Tiling to

M41/110 Terrazzo tiling

M41/120 In situ terrazzo

M41/130 Precast terrazzo

M41/140 Marble tiling

Product range

Covers

Specification data - One-part floor transition strips

Profile

Ramped.

Material

Aluminium.

Finish

Mill aluminium 80.

Matt silver 81.

Size

2500 x 20 x 10 mm.

Guidance for specification option:

(L x W x D).

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

50 %

Literature

RSA/RUA Datasheet

RSA/RUA Datasheet
