Timber Entrance Doors
Verified by manufacturer 2 days ago
DS2 Inward Opening Entrance Door (Traditional)
DS2 Inward Opening Entrance Door (Traditional)
PAS 24
Certificate type
Secured By Design
Certificate type
Timber entrance doors.
Application
Suited to traditional and contemporary properties.
Description
Timber entrance doors, available opening inwards or outwards.
Features and benefits:
- Available in a wide range of glazing types and finishes.
- Weather rating: Tested to exposure category 2000.
- Thermal performance: A rated as standard. Triple glazed options available.
- Adjustable hinges to ensure optimal fitting.
- Environmentally friendly designs, materials and processes.
- Good acoustic performance.
- Secured By Design and PAS 24 compliant.
- Security laminated glazing is available for improved acoustic performance and safety.
General information
Color | Other Guidance for specification option: Options from the RAL Classic, Design and Effect ranges as well as British Standard and NCS colours, and complementary colour matching to all leading manufacturers’ ranges. |
Finish | Painted Stained |
Material | Timber Glass Wood |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year Guidance for specification option: Ten year: Glazing unit, weather seals, hardware, and paint finish. Please note: Ten year warranty is only available on painted finish in the traditional and contemporary ranges. Other Guidance for specification option: The historic range only has a very limited warranty. Consult manufacturer for details. |
Uniclass | |
CAWS | L20/480 Doorsets L20/420 Wood doorsets L20/410 Wood doorsets L20/55 Doorsets |
SKU Code | DS2 |
Specification data - Wood doorsets
Classification data | |
Standard | To BS 644. |
Wood in joinery standard | To BS EN 942. |
Configuration | Entrance door - traditional. Guidance for specification option: 59 mm sash. Entrance door - traditional slim. Guidance for specification option: 44 mm sash. Entrance door - traditional plus. Guidance for specification option: 68 mm sash. |
Doorset size | Manufacturer guidanceInsert size requirement. |
Performance | |
Acoustic performance | Manufacturer's standard. Manufacturer guidanceCertain options may affect the availability of other options and the performance levels. Consult manufacturer for details. |
Strength and durability | To BS 6375-2. |
Thermal | 1–1.4 W/m2K. Manufacturer guidanceCertain options may affect the availability of other options and the performance levels. Consult manufacturer for details. |
Intruder resistance | |
Minimum requirement | Not required. To Secured by Design standard/ PAS 24. Guidance for specification option: When required by Building Regulations Document Q. |
Frame | |
Material | Manufacturer's standard (as specified below). |
Species | Engineered redwood. Engineered grandis. European oak. Accoya. |
Appearance class | J40. Guidance for specification option: J10 for glazing beads, drips and similar. J40 or better for all other members. |
Threshold | Not required. Standard. Standard - low threshold. High performance. High performance - low threshold. With waterbar. With drop down seal. Extended - low threshold. High performance - extended. |
Perimeter seals or inserts | Not required. Weatherseal. |
Finish | George Barnsdale paint system. Guidance for specification option: Four coats on opaque/ three coats on translucent. |
Colour | Specify colour below. |
External | Manufacturer guidanceOptions from the RAL Classic, Design and Effect ranges as well as British Standard and NCS colours, and complementary colour matching to all leading manufacturers’ ranges. |
Internal | As external. Other. Guidance for specification option: Options from the RAL Classic, Design and Effect ranges as well as British Standard and NCS colours, and complementary colour matching to all leading manufacturers’ ranges. |
Frame accessories | Not required. Trickle ventilator. Guidance for specification option: Consult manufacturer for position and colour details. Head drip. Transom drip. DS2 hinge restrictor - closer. |
Door leaf | |
Thickness | Manufacturer's standard. |
Appearance class | J40. Guidance for specification option: J10 for glazing beads, drips and similar. J40 or better for all other members. |
Species | Engineered redwood. Engineered grandis. European oak. Accoya. |
Finish | George Barnsdale paint system. Guidance for specification option: Four coats on opaque/ three coats on translucent. |
Colour | |
External | Manufacturer guidanceOptions from the RAL Classic, Design and Effect ranges as well as British Standard and NCS colours, and complementary colour matching to all leading manufacturers’ ranges. |
Internal | As external. Other. Guidance for specification option: Options from the RAL Classic, Design and Effect ranges as well as British Standard and NCS colours, and complementary colour matching to all leading manufacturers’ ranges. |
Glazing | |
Type | Factory glazed, traditional drained and ventilated. Guidance for specification option: Glazing unit: To meet performance specification. Double glazed as standard. Triple and single glazed options available. Glazing styles: Security laminated glass, stained and leaded glass are available. See glazing style options guide for further details. |
Beading | |
Type | As frame profile. Standard. Pencil round. Ovolo. Manufacturer guidanceAppearance class: J10. |
Door accessories | Not required. Letterbox. Centre knob. Knocker. Numbering. Spy hole. Offset pull bar. Manufacturer guidanceConsult manufacturer for further details and insert requirements. |
Planted stops | |
Appearance class | J40. Guidance for specification option: J10 for glazing beads, drips and similar. J40 or better for all other members. |
Hardware | Butt hinge. Concealed hinge. |
Architraves | |
Wood appearance class | To BS EN 942, Class J40. Guidance for specification option: J10 for glazing beads, drips and similar. J40 or better for all other members. |
Accessories | Not required. Smart systems. Guidance for specification option: Multiple options available, consult manufacturer for details. |
FSC timber | FSC Chain of Custody. |
Door frame profile | Standard in. Square. Ovolo. Barnsdale. Manufacturer guidanceAvailable with standard or flush connections. Frames are available in thicknesses of 94 or 81 mm. |
Opening | Open in - standard. Open in - stable. Open in - direct glazed. |
Sash | As frame profile. Standard. Flush. |
Handles | Original. Classic. Cottage. Mitre. Regent. Foundry. Modern. Period. Custom. Manufacturer guidanceA range of handle heights and furniture colours are available. Consult manufacturer for details and insert requirements. |
Locking | Not required. Guidance for specification option: For direct glazed. Standard. Guidance for specification option: Security espagnolette lock and 3* security cylinder lock. Autolock. Heritage. Electronic lock. Guidance for specification option: For access control system. Escape hardware. Stable. Guidance for specification option: For stable doors only. Manufacturer guidanceCylinder keying and master keying are available. Consult manufacturer for details. |
Air permeability | To BS 6375, Class C. |
Watertightness | To BS 6375, 100 Pa. |
Sustainability data
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Timber Glass Wood |
Product certifications
PAS 24
Enhanced Security Doors
Secured By Design
Secured by Design
Literature
Literature type
Door Furniture Brochure
Technical Specification Brochure
Case studies
Cool Kampus project cottons on to timber windows & doors – Minto & Turner Building

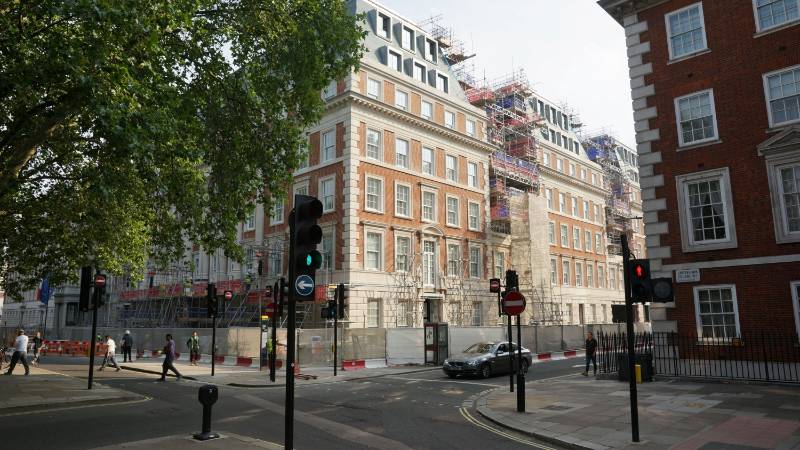

How acoustic windows keep the peace for the former US Embassy
