DS12 Timber Tilt & Sliding Door (Traditional)
DS12 Timber Tilt & Sliding Door (Traditional)
Timber tilt and sliding doors.
Application

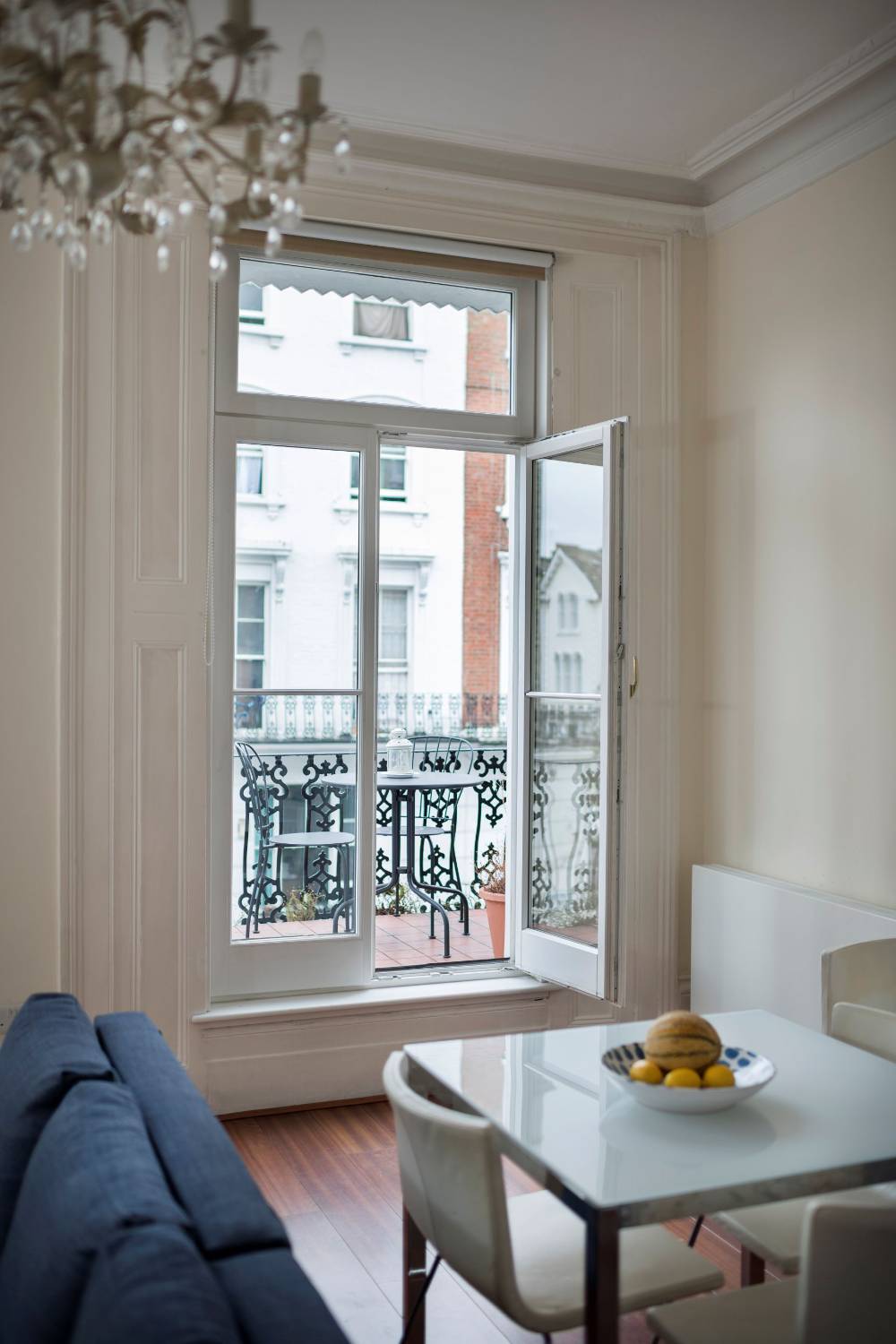

Suitable for limited space areas including Juliet balconies.
Description

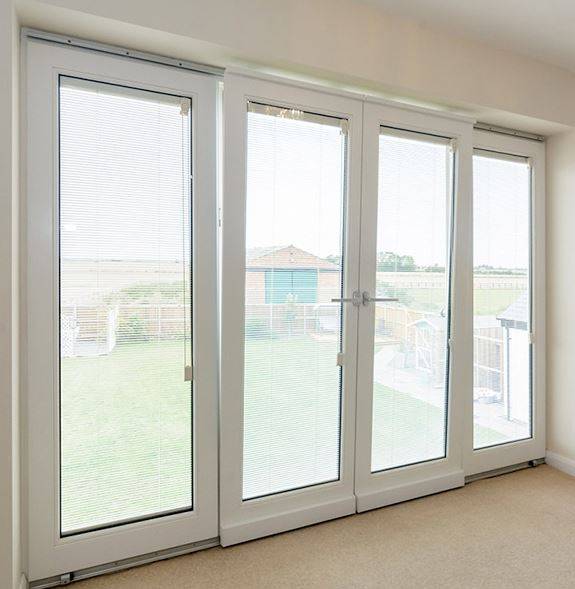

Timber tilt and sliding doors with a roller system, designed to provide uninterrupted views and more natural light.
Rotating the specialist handle anti-clockwise by 90 degrees allows the top of the door panel to tilt inwards, providing an opening for ventilation. For security, the handle can be locked in this position for night-time use.
Features and benefits:
- Available in a wide range of configurations to suit the layout of the room and the size of the reveal.
- Weather rating: Tested to exposure category 2000.
- Thermal performance: A rated as standard. Triple glazed options available.
- The specialist handle enables the door to be locked with a 10 mm gap to provide secure ventilation.
- Environmentally friendly designs, materials and processes.
- Good acoustic performance.
- Secured By Design and PAS 24 compliant.
- Security laminated glazing is available for improved acoustic performance and safety.
- Dual seal design provides excellent draught proofing.
General information
Color | Other Guidance for specification option: Options from the RAL Classic, Design and Effect ranges as well as British Standard and NCS colours, and complementary colour matching to all leading manufacturers’ ranges. |
Finish | Painted Stained |
Material | Timber Glass Wood |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year Guidance for specification option: Ten year: Glazing unit, weather seals, hardware, and paint finish. Please note: Ten year warranty is only available on painted finish in the traditional and contemporary ranges. Other Guidance for specification option: Consult manufacturer for details. |
Uniclass | |
CAWS | L20/270 Wood doors L20/30 Wood doors L20/60 Doors L20/520 Sliding doors |
SKU Code | DS12 |
Specification data - Sliding door and partition sets
Classification data | |
Performance | External. Guidance for specification option:
Insert required values for air permeability, water tightness, and resistance to wind load. |
Arrangement | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Track system | Low-resistance roller system. Guidance for specification option: Insert requirements for track colour/ finish. |
Door leaves | |
Construction | Engineered redwood. Engineered grandis. European oak. Accoya. Manufacturer guidanceAppearance class: J10 for glazing beads, drips and similar. J40 or better for all other members. |
Finish and colour | George Barnsdale paint system. Guidance for specification option: Four coats on opaque/ three coats on translucent. Options from the RAL Classic, Design and Effect ranges as well as British Standard and NCS colours, and complementary colour matching to all leading manufacturers’ ranges. Dual colour options also available. Consult manufacturer and insert requirements. |
Operation | Manual. |
Hardware | Manufacturer's standard. Guidance for specification option: A range of furniture finishes are available. Consult manufacturer for details. |
Accessories | Not required. Cill extension. Window board groove. Draught strip. Manufacturer guidanceConsult manufacturer for further details and insert requirements. |
Sash | Fixed. Tilt and turn. Turn only. Tilt only. Manufacturer guidanceFixed sash configuration. |
Configuration | Tilt and sliding door - traditional. Tilt and sliding door - traditional plus. Manufacturer guidanceInsert size requirement. |
Type | Factory glazed, traditional drained and ventilated. Guidance for specification option: Glazing unit: To meet performance specification. Triple glazed options available, consult manufacturer for details. See glazing style options guide for further details. Manufacturer guidanceDoor Leaf Glazing Type. |
Standard | To BS 644. To BS EN 942. |
Security level | Not required. To Secured by Design standard/ PAS 24. Guidance for specification option: When required by Building Regulations Document Q. |
Acoustic performance rating | Manufacturer's standard. Manufacturer guidanceCertain options may affect the availability of other options and the performance levels. Consult manufacturer for details. |
Thermal performance | 0.9–1.3 W/m2K. Manufacturer guidanceCertain options may affect the availability of other options and the performance levels. Consult manufacturer for details. |
Glazing bead | As frame profile. Standard. Pencil round. Ovolo. Manufacturer guidanceAvailable with standard or flush connections. |
FSC timber | FSC Chain of Custody. |
Handles | Handle/ handle - patio. Guidance for specification option: In/ out. Handle/ handle - modern. Guidance for specification option: In/ out. Handle/ handle - custom. Guidance for specification option: In/ out. Manufacturer guidanceA range of handle heights and furniture colours are available. Consult manufacturer for details and insert requirements. |
Locking | Cylinder thumb. Cylinder key. Manufacturer guidanceKeyed alike and high security options also available. |
Threshold | Aluminium. |
Sustainability data
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Timber Glass Wood |
Literature
Literature type
Technical Specification Brochure
Door Furniture Brochure
Case studies

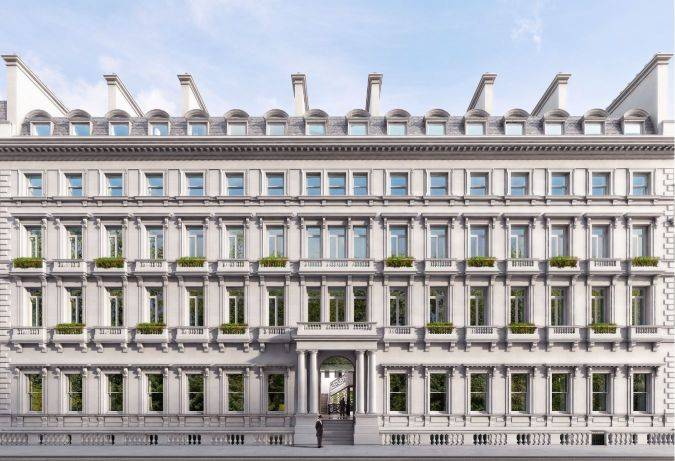

London’s Premier Address Deserves Premier Fenestration
