NBS Source
I'm a manufacturer

Toilet Roll Holder - STRX672E

Verified by manufacturer over a year ago

KWC DVS Limited

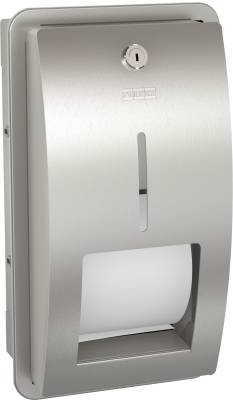

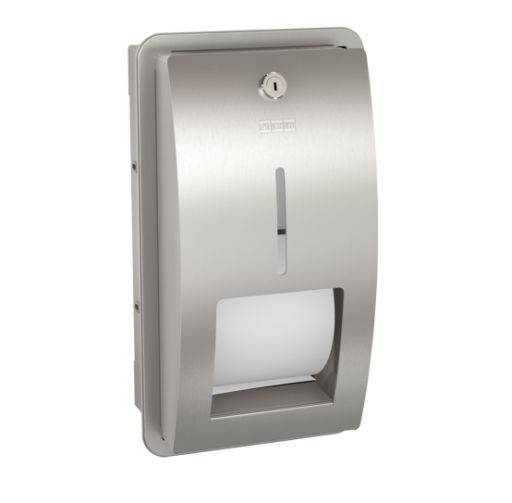

Stratos double toilet roll holder with spindle.

Jump to:
BOS
+44 (0)1246 458900 Website

Application

For commercial and public washrooms.

Description

Stratos recessed double toilet roll holder with spindle system for recessed mounting.


Features and benefits:

  • Designed to hold two rolls maximum diameter 108 mm.
  • The reserve roll is concealed and drops automatically into the dispensing position after the first roll is finished.
  • The holder incorporates a cylinder lock with standard Franke key.

General information

Finish

Guidance for specification option:

InoxPlus (anti fingerprint)

Material

Stainless steel

Guidance for specification option:

1.2 and 1.5 mm thick, grade 1.4301 (304) stainless steel

Length

331 mm

Width

183 mm

Height

135 mm

Manufacturer guidance

Projection.

Warranty description

Five year

Uniclass

Pr_40_20_76_88 Toilet roll holdersPrimary

CAWS

N13/462 Toilet paper holders

Product range

Holders

Specification data - Toilet roll holders

Form

Wall mounted.

Materials

Stainless steel.

Finish and colour

Satin.

Integral accessories

Locking cover.

Product Reference

(STRX672E) 201.0000.062

Sustainability data

Contains Red List materials

No

Recyclability

Guidance for specification option:

Recyclable

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
