Tonality Terracotta - Facade Panel
Verified by manufacturer 5 months ago
EPD
Certificate type
Terracotta facade tile.
Application
Terracotta façade tile
Description
Tonality terracotta tiles are a lightweight alternative to other terracotta products, with low dead weight of only 28–35 kg/m². Tonality use 100% Westerwald clay which is the highest quality on the market and offer all round durability (service life in excess of 35 years as per the BBA).
Produced using the Keralis sinter kiln firing process, we are able to offer a wide range of colours and textures.
Thanks to Tonality's sinter firing process the ceramic elements receive an even, smooth and dense surface. Chose from a variety of standard surface finishes and profiled tiles such as stripes, waves and grooved.
Tonality is also available in lamella, baguette and brise soleil shapes.
Features and benefits:
- A1 Non combustible
- BBA approved and Dibt tested
- Best quality glazed tiles
- Lightweight at only 28–35 kg/m²
- All round durability
- No long-term maintenance
- Wide range of colours and textures
- Lifelong colourfast and UV resistance
General information
Color | Cream Grey Red Brown Green |
Finish | Textured Matt Other Guidance for specification option: Ferro and ferro light. Anti-graffiti Brushed |
Material | Clay Ceramic |
Shape | Rectangle |
Length | 600 mm 400 mm 150 mm Bespoke |
Width | 2000 mm 1600 mm 300 mm Bespoke Manufacturer guidanceSpecial size: width 110 - 302 mm |
Height | 22 mm 26 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | H92/120 Rainscreen cladding |
Specification data - Drained and back-ventilated rainscreen cladding systems
Thermal insulation | Guidance for specification option: Insert requirements. Only standardized or technically approved, type WAB (external thermal insulation for use beneath cladding) may be used in accordance with DIN 4108-10:2008-06 for thermal insulation in rear-ventilated rainscreen facades. Manufacturer guidanceFacade insulation panels must be installed fitting tightly together in formation, between the substrate and insulation layer in accordance with structural standards or manufacturer’s specifications. They must be mechanically attached using insulation fasteners ('fixing pins‘) and must be tightly connected to adjacent building components. |
Secondary support structure | Adaptive (ADS) fixing system.Base Clinch (BAS) fixing system. |
Cladding panels | |
Material | Terracotta panels. |
Panel joints | 2 mm.8 mm. |
Colour/ Finish: | Manufacturer guidanceAn extensive range of colours from the Nature, Colours and Design collections are available, consult the literature for details and insert requirements. |
Reaction to fire | To BS EN 13501-1: Class A1. |
Size: | Manufacturer guidanceBespoke sizes available. Consult manufacturer for details and insert requirements. |
Thickness: | 22 mm. 26 mm. |
Type | Grooved. Multiple pilaster strips. Plain. Single pilaster strip. Stripes. |
ShapeType | Lamella. Baguette. Brise soleil. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Clay Ceramic |
Manufacturing plant location | |
Recyclability | 100% recyclable |
Third party certifications
Third party certifications
EPD
Tonality Terracotta EPD
Literature
TONALITY
Tonality Technical Data Sheet - Ceramic Slat
Tonality Technical Data Sheet - 26mm
Tonality Facade Planner
Tonality Colour Chart
Tonality Construction Process
Case studies

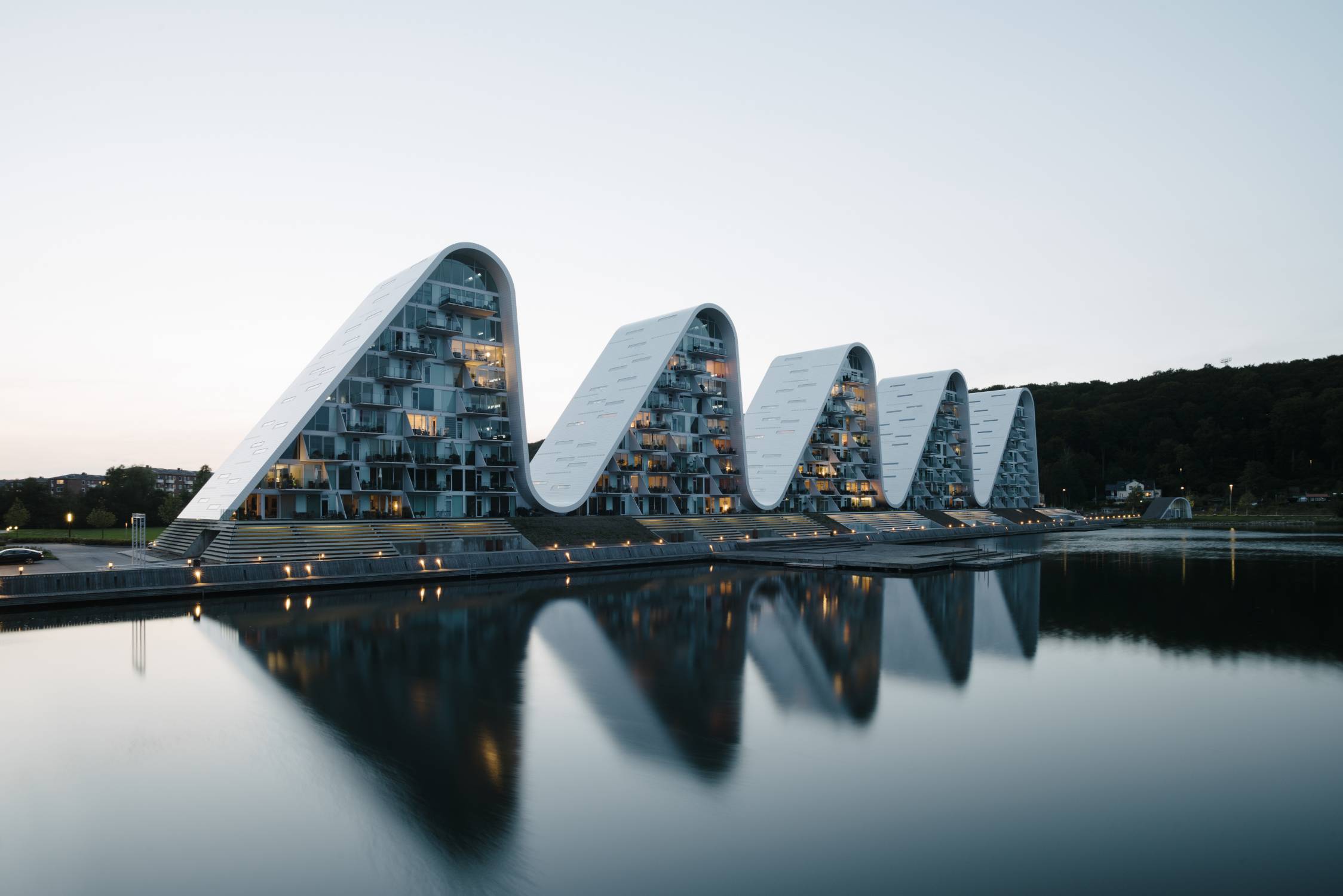

The Wave, Vejle
Paracelsus Bad Kurhaus, Salzburg
