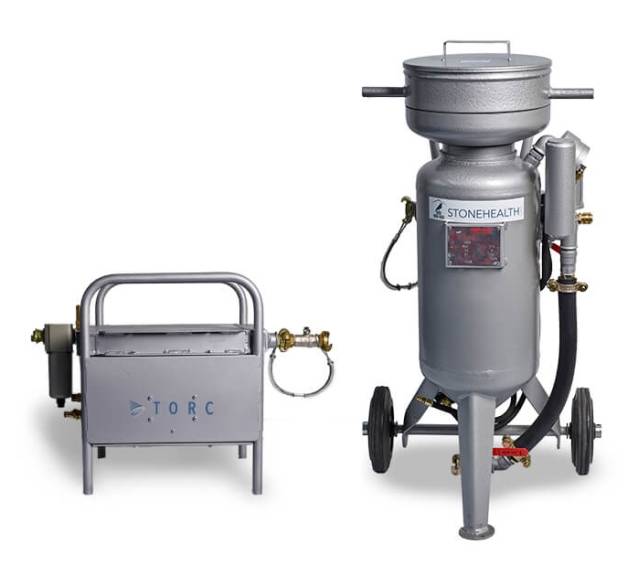

TORC Gentle Vortex Cleaning System

Verified by manufacturer 4 months ago

With Auxiliary Pump

Stonehealth Ltd Variant:
Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

Low-pressure stone cleaning system utilising air, water and granulate, suitable for the removal of brittle coating from large areas through to fine detail.

Jump to:
+44 (0)1453 540600 Website

Application

Can be used for the following:

  • Removal of carbon pollutants and other unwanted matter from stone, brick, terracotta, ceramic tiles, glass, faience and concrete;
  • Removal of oxidation and sulphation from bronze, brass, copper, and anodized aluminium.

Suitable for removal of:

  • Carbon sulphation;
  • Lime and cement based paints;
  • Paint and plaster residues;
  • Some old oil based paints;
  • Bitumen, if oxidised;
  • Limescale/Calcium;
  • Efflorescence.

Description

Stone cleaning system utilising air, water and granulate, suitable for brittle coatings on large areas through to fine detail.


Features and benefits:

  • Modularised nozzles create varying sizes of the gentle, cleaning vortex which uses low volumes of water, fine inert granulate and air.
  • Range of nozzle sizes allows for effective cleaning and removal of unwanted matter from many types of masonary.
  • Cleaning and removal of paints from intricate details to large areas without damaging the substrate or patina.
  • Interchangeable nozzles allowing a choice of cleaning sizes: 5, 7, 9 and 11 mm apertures available.
  • Consult manufacturer for product details.
  • 540 x 560 x 880 mm.
  • 450 x 740 x 550 mm.
  • Pump size: 600 x 310 x 340 mm.

General information

Color

Blue

Guidance for specification option:

Royal blue.

Silver

Guidance for specification option:

Gunmetal Silver.

Finish

Gloss

Guidance for specification option:

Mixed finishes of metal and rubber.

Material

Stainless steel

Aluminium

Rubber

Plastic

Shape

Other

Guidance for specification option:

Cylindrical with separate air cooler/pump.

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Ss_15_30_15_15 Concrete cleaning systemsPrimary

CAWS

C40/342 Pressurized water cleaning equipment

Specification data - Concrete cleaning systems

Cleaning operations

-

Cleaning methods

Gentle vortex cleaning system.

Rinsing

As Cleaning schedule.

Power supply

Auxiliary pump.

Guidance for specification option:

Consult manufacturer's literature and insert requirements.

WaterConsumption

60 L/hour.

Manufacturer guidance

Maximum.

Ambient temperature

Not suitable for use below 5°C.

Volume

3540 L/minute (125 CFM).

Manufacturer guidance

Compressed air volume requirement.

Dry weight

240 kg.

Pump

600 x 310 x 340 mm.

Manufacturer guidance

Auxiliary pump size.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Guidance for specification option:

Stonehealth. Draycott Business Park, Unit G4-5, Cam, Dursley GL11 5DQ.

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0

Self declared

Recyclability

Can be broken down into parts, recycled individually or sold on.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO9001:2015

Literature

TORC Leaflet

TORC Leaflet

TORC Method Statement

TORC Method Statement

Case studies

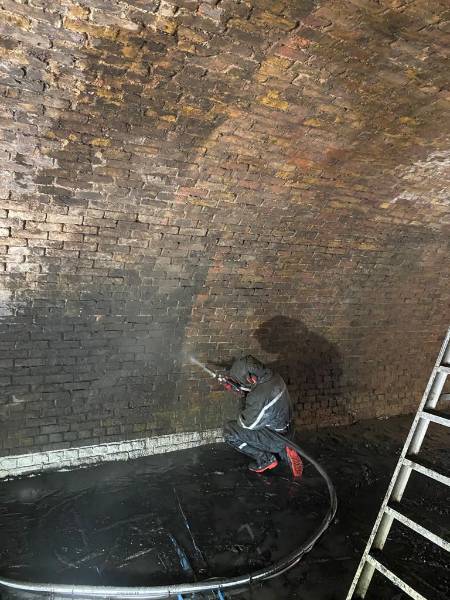

Structural Repairs- Office Archway Restoration

Structural Repairs- Office Archway Restoration
