TRADELINE Twin Frame I Stud Partition Systems Utilising British Gypsum Board

Name: TRADELINE Twin Frame I Stud Partition Systems Utilising British Gypsum Board
Brand: Metsec (voestalpine Metsec)
SKU: efRQhZDE1fFLaWspSRw2SB

Verified by manufacturer 2 months ago

TWI50-B-59(2x50+100)(250)

Metsec (voestalpine Metsec)

Third party certifications:

BSI Kitemark
Certificate type
EPD
Certificate type
ISO 9001 Quality Management
Certificate type
UK Conformity Assessed (UKCA)
Certificate type

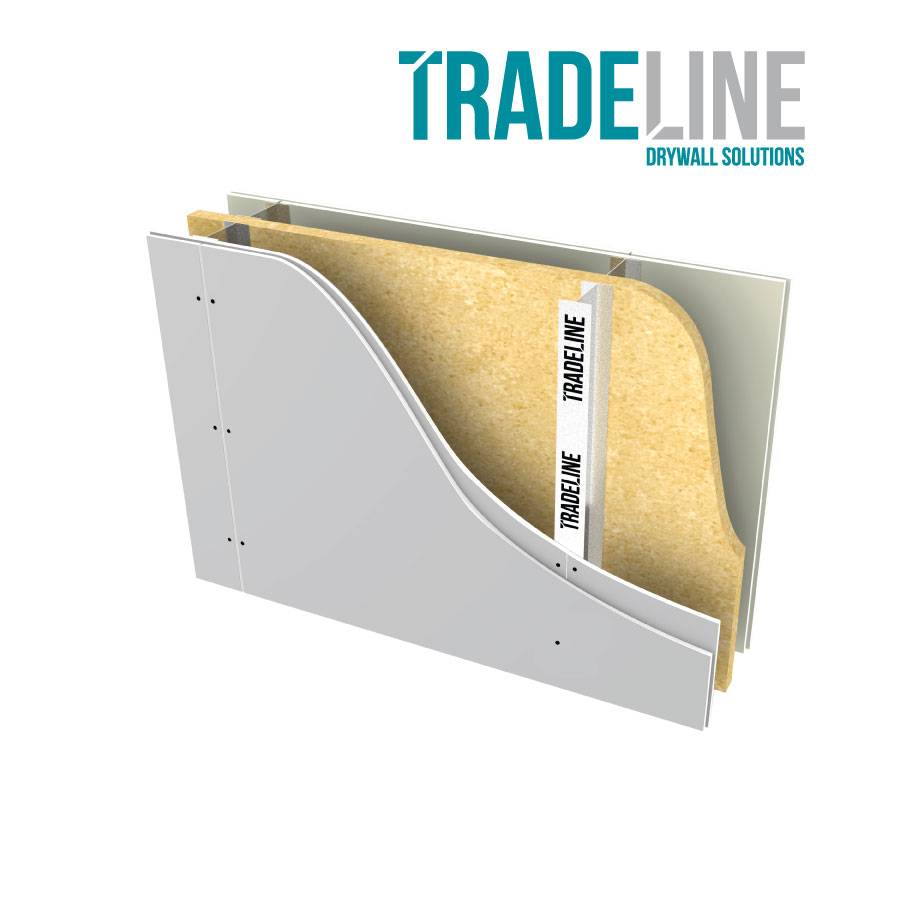

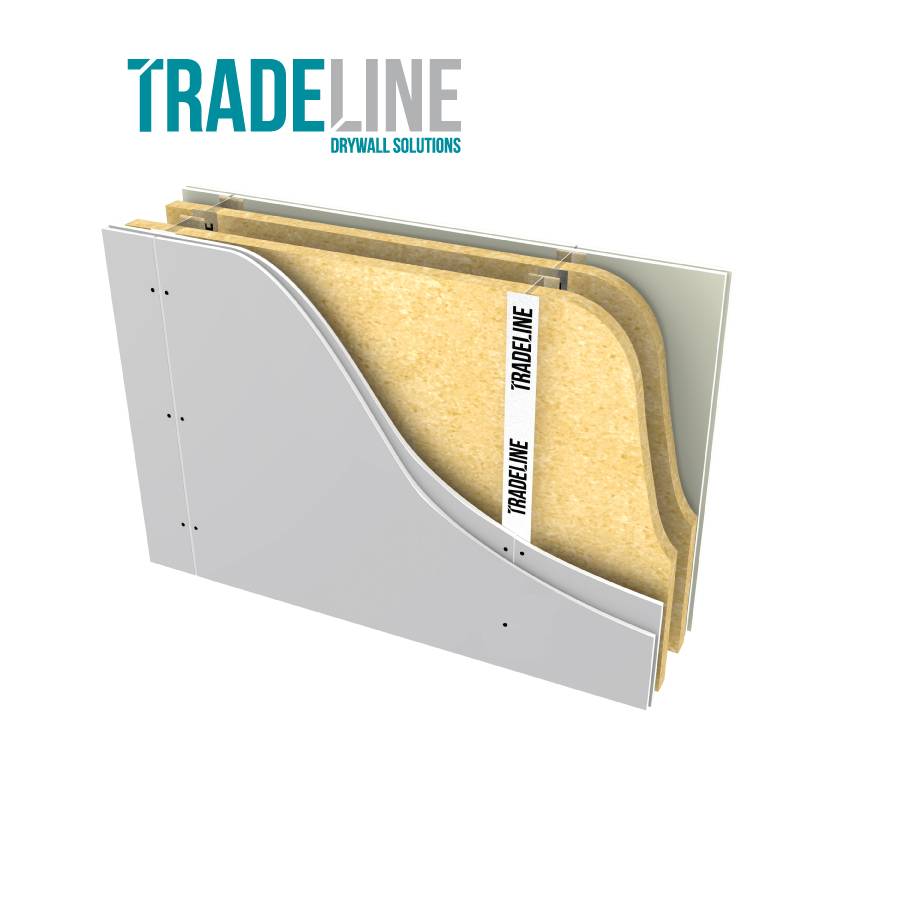

TRADELINE Unbraced Twin Frame I Stud systems are lightweight, non load-bearing, friction fit systems.

Jump to:

+44 (0) 121 601 6000 Website

Application

Wall partitions.

Description

TRADELINE Unbraced Twin Frame I Stud systems are lightweight, non-load-bearing, friction fit systems.

They can be used within all sectors but primarily within residential to achieve the acoustic requirements of Approved Document E and enhancements of +5 or +8dB.

Due to the TRADELINE frameworks being isolated from each other, excellent levels of sound insulation can be

achieved up to Rw 70 dB. Whilst also providing up to 120 minutes of fire resistance.

Features and benefits:

Acoustics up to 70 Rw dB with Ctr of -10.
Suitable for use with Code for Sustainable Homes or BREEAM.
Suitable for party wall construction with requirements of +3 to +8 dB DnT,w on ADE requirements of 45 DnT,w + Ctr.
Fire resistance up to 120 mins BS 476:Part 22.
Structural columns can be incorporated within the partition cavity due to unbraced twin-frame design.

Structural performance:

Strength grade to BS 5234-2:1992 Annexes A-F.

Fire performance:

Fire resistance to BS 476:1987:Part 22.

Acoustic performance:

Calculated weighted sound reduction index (Rw) to BS EN ISO 10140-2: 2010.

Installing framing for partitions:

Partition height (maximum) calculated based on a limiting deflection of L/240 at 200 Pascals.

General information

Length	Bespoke
Width	200 mm 210 mm 250 mm 260 mm 270 mm 300 mm 350 mm 360 mm 450 mm Show more
Height	Bespoke

Uniclass	Ss_25_10_30_35 Gypsum board partition systemsPrimary
CAWS	K10/30 Metal stud K10/125 Metal stud partition system

Product range	Drylining / Twin Frame Partitions - Unbraced I Stud Drylining / TRADELINE Drywall Systems

Specification data - Gypsum board partition systems

Framing	Twin Tradeline 'I' Stud, 50 mm.
Insulation	Acoustic partition roll, 50+50+100 mm.
Linings	-
Inner layers	British Gypsum Gyproc SoundBloc, 12.5 mm.
Outer layers	British Gypsum Gyproc SoundBloc, 12.5 mm.
Fasteners	Tradeline Drywall Screws.
Joint treatment	Tradeline Joint Tape. Tradeline Paper Joint Tape. Tradeline Light Weight All Purpose Joint Compound. Tradeline Metal Corner Tape. Tradeline Flexible Metal Corner Tape. Tradeline Scrim Tape. Tradeline Drywall Self-Adhesive Joint Tape.
System accessories	Tradeline Acoustic Intumescent Sealant. Tradeline PB24 Partition Brace. Tradeline FS24 Flat Bracing Strip. Tradeline ASP19B Plywood Service Support Plates.

Fire resistance	To BS 476:1987:Part 22, 60/ 60 minutes (Integrity/ Insulation).
Partition height	Guidance for specification option: Insert requirement based on centres specified. 600 mm centres: maximum 2700 mm. 400 mm centres: maximum 3300 mm. Calculated based on a limiting deflection of L/240 at 200 Pascals.
Nominal thickness	250 mm. Guidance for specification option: Optimum system thickness. Note that if a greater partition thickness is required, this may improve the sound reduction index (Rw) - consult manufacturer for details.
Calculated weighted sound reduction index (Rw)	70 Rw dB. Guidance for specification option: Based on the nominal system thickness.
Centres	600 mm. Guidance for specification option: Standard. 400 mm. Guidance for specification option: Allows for greater partition heights.
StrengthGrade	Severe duty.
Head/ Floor channel	Tradeline Standard Track. Guidance for specification option: Used for partition heights under 4 m. Available in 50, 52, 62 or 72 mm wide. 25 mm flange. Tradeline 32 mm Leg Track. Guidance for specification option: Used for partition heights under 4 m. Available in 52, 62, 72, 94 or 148 mm wide. 32 mm flange. Tradeline Deep Track. Guidance for specification option: Used for partition heights between 4 m and 8 m. Can be used as a head track where a deflection head of up to 30 mm is needed. Available in 52, 62, 72, 94 or 148 mm wide. 50 mm flange. Tradeline Extra Deep Track. Guidance for specification option: Used for partition heights between 8 m and 10.2 m. Can be used as a head track where a deflection head of up to 45 mm is needed. Available in 72, 94 or 148 mm wide. 70 mm flange.
Standards	To BS 5234-2:1992 Annexes A-F, BS 476:1987:Part 22, BS EN ISO 10140-2: 2010.
