Traditional Textures Precoated Aluminium Rainwater Drainage System - Aluminium Rainwater Drainage System

Verified by manufacturer 5 months ago

Metal Solutions Limited Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

  • BS EN 13501-1

    BS EN 13501-1

    Certificate type

  • EPD

    EPD

    Certificate type

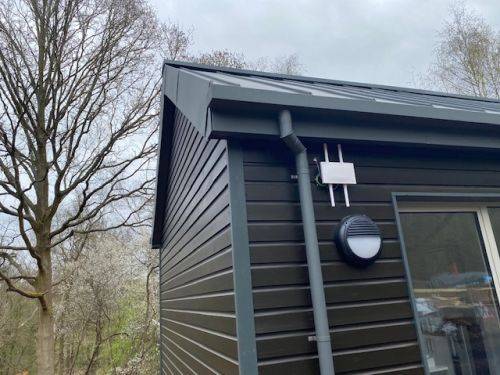

Precoated aluminium external rainwater drainage system.

Jump to:
+44 (0)1204 491800 Website

Application

Stand alone system or to complement traditional metal roofing finishes.

Installation:

A list of approved installers is available on request by postcode

Email :

gaynor@metalsolutions.uk.com

Description

Precoated aluminium external rainwater drainage system, manufactured from lightweight corrosion-resistant aluminium and precoated in a range of colours.


Features and benefits:

  • A range of bespoke items can be manufactured to order.
  • Material - A1/A2 fire-rated dependent on the finish chosen.
  • Heritage (Ogee) rainwater systems can be replicated in precoated aluminium.

General information

Color

Other

Black

Grey

Copper

Brown

Show more

Finish

Matt

Coated

Material

Aluminium

Shape

Square

Rectangle

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

20 year

Guidance for specification option:

Dependant on application and location.

Uniclass

Ss_50_30_02_28 External gravity rainwater drainage systemsPrimary

CAWS

R10/110 Gravity rainwater drainage system

Specification data - External gravity rainwater drainage systems

Combined fascias soffits and gutters

-

Materials

Pre-coated aluminium.

Supports

-

Brackets

Pre-coated aluminium.

Guidance for specification option:

Install gutter brackets at 500 mm centres. Install downpipe brackets at 1000 mm centres.

Fixings

Guidance for specification option:

To suit application, consult manufacturer and insert requirements.

Eaves gutters

-

Gutters

-

Gutter types

Half round, 110 mm diameter.

Half round, 127 mm diameter.

Half round, 153 mm diameter.

Box, 120 x 75 mm.

Box, 150 x 90 mm.

Ogee, 125 x 80 mm.

Ogee, 150 x 90 mm.

Bespoke.

Guidance for specification option:

Consult manufacturer and insert requirements.

Jointing

As recommended by gutter manufacturer.

Manufacturer guidance

To suit gutter, use lap joints with seal and fix gun applied sealants available from manufacturer (Metal Solutions).

Electrical continuity

Not required.

Required.

Supports

-

Brackets

Manufacturer's standard.

Fixings

Guidance for specification option:

To suit application, consult manufacturer and insert requirements.

Chutes

-

Materials

Not required.

Required.

Guidance for specification option:

Consult manufacturer and insert requirements.

Fixings

Guidance for specification option:

To suit application, consult manufacturer and insert requirements.

External rainwater pipework

-

Rainwater downpipes

-

Downpipe types

Round, 80 mm diameter.

Round, 100 mm diameter.

Round, 120 mm diameter.

Square, 76 mm.

Square, 100 mm.

Bespoke.

Guidance for specification option:

Consult manufacturer and insert requirements.

Jointing

As recommended by pipework manufacturer.

Manufacturer guidance

To suit gutter, use lap joints with seal and fix gun applied sealant available from manufacturer (Metal Solutions).

Supports

-

Brackets and clips

Standard bracket.

Ring type bracket.

Fixings

Guidance for specification option:

To suit application, consult manufacturer and insert requirements.

System accessories

None.

Gutter bracket.

External corner.

Internal corner.

Stop end.

Cup outlet.

Drop outlet.

Pipe bracket.

Bend.

Shoe.

Y branch.

Gutter leaf guard.

Balloon leaf guard.

Rainwater diverter.

Bespoke.

Guidance for specification option:

Consult manufacturer and insert requirements.

Execution

-

Manufacturer guidance

Consult Metal Solutions Technical Team.

System completion

-

Manufacturer guidance

Verification of performance

Standards

To BS EN612:2005.

Design

Guidance for specification option:

Insert requirements or drawing reference. Rainwater calculations can be offered by manufacturer (Metal Solutions) on request.

Colour

Blue Zinc Patina.

Copper Oxide.

Copper Patina.

Corten.

Dark Zinc Patina.

Show more

Manufacturer guidance

The precoated aluminium is also available in any RAL colour as well as many other specialist finishes. Consult manufacturer for details.

Hopper

Required.

Not required.

Sustainability data

Contains Red List materials

No

Country of material origin

France

Country of product manufacture

United Kingdom

Material

Aluminium

Manufacturing plant location

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

6.16 kg CO₂ eq/kg

Recyclability

90

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

92 %

Expected Life

-

Manufacturer guidance

40+ year

Third party certifications

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001 Metal Solutions

BS EN 13501-1

BS EN 13501-1

Traditional Textures Fire Certification

EPD

EPD

Traditional Textures EPD
