ZM Silesia Zinc Rainwater Drainage System - Zinc Rainwater Drainage System
Verified by manufacturer 6 months ago
ISO 9001 Quality Management
Certificate type
R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041
Certificate type
Declare
Certificate type

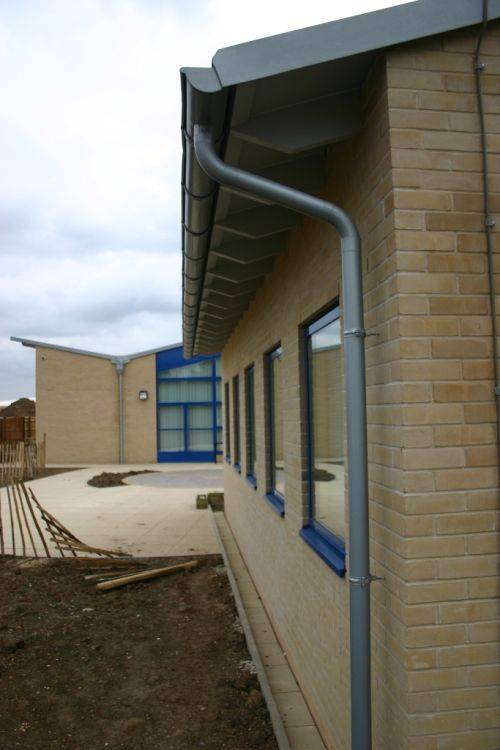

Zinc-titanium external rainwater drainage system.
Application
Standalone system or to complement traditional metal roofing finishes.
Installation:
Contact Metal Solutions for a list of approved installers by postcode.
Email:
gaynor@metalsolutions.uk.com
Description
Zinc-titanium external rainwater drainage system.
Features and benefits:
- ZM Silesia zinc is produced from the highest purity zinc SHG 99.995% with additions of copper and titanium according to EN 988.
- Material - A1 fire rated.
- Available in three finishes. It is durable for over 80 years, corrosion resistant, does not require maintenance, is non-flammable and can be 100% recycled.
- A range of bespoke items can be manufactured to order.
- Also available in other light gauge metals including copper, other coloured zincs, brass, bronze, pre-coated aluminium, GreenCoat® steel and any other traditional finish.
- Heritage rainwater systems can be replicated in any traditional metal.
General information
Color | Manufacturer guidanceSee manufacturer's literature. |
Finish | Manufacturer guidanceSee manufacturer's literature for alternatives. |
Material | Zinc Titanium |
Shape | Crescent Square Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 30 year |
Uniclass | |
CAWS | R10/110 Gravity rainwater drainage system |
Specification data - External gravity rainwater drainage systems
Combined fascias soffits and gutters | |
Materials | Zinc. |
Supports | |
Brackets | Zinc brackets.Guidance for specification option: Install gutter brackets at 500 mm centres and downpipe brackets at 1000 mm centres. |
Fixings | Guidance for specification option: To suit application, consult manufacturer and insert requirements. |
Eaves gutters | |
Gutters | |
Gutter types | Half round, 110 mm diameter.Half round, 127 mm diameter.Half round, 153 mm diameter.Box, 120 x 75 mm.Box, 150 x 90 mm.Ogee, 125 x 80 mm.Ogee, 150 x 90 mm.Bespoke.Guidance for specification option: Consult manufacturer and insert requirements. |
Jointing | As recommended by gutter manufacturer.Manufacturer guidanceTo suit gutter, use lap joints with seal and fix gun applied sealant available from manufacturer (Metal Solutions). |
Electrical continuity | Not required.Required. |
Supports | |
Brackets | Manufacturer's standard.Manufacturer guidanceInstall gutter brackets at 500 mm centres and downpipe brackets at 1000 mm centres. |
Fixings | Guidance for specification option: To suit application, consult manufacturer and insert requirements. |
Chutes | |
Materials | Not required.Required.Guidance for specification option: Consult manufacturer and insert material requirements. |
Fixings | Guidance for specification option: To suit application, consult manufacturer and insert requirements. |
External rainwater pipework | |
Rainwater downpipes | |
Downpipe types | Round, 80 mm diameter.Round, 100 mm diameter.Round, 120 mm diameter.Square, 76 mm.Square, 100 mm.Bespoke.Guidance for specification option: Consult manufacturer and insert requirements. |
Jointing | As recommended by pipework manufacturer.Manufacturer guidanceTo suit gutter, install brackets at 500 mm centres and downpipes at 1000 mm centres. |
Supports | |
Brackets and clips | Standard bracket.Ring type bracket. |
Fixings | Guidance for specification option: To suit application, consult manufacturer and insert requiements. |
System accessories | None.Gutter bracket.External corner.Internal corner.Stop end.Cup outlet.Drop outlet.Pipe bracket.Bend.Shoe.Y branch.Gutter leaf guard.Balloon leaf guard.Rainwater diverter.Bespoke.Guidance for specification option: Consult manufacturer and insert requirements. |
Execution | Manufacturer guidanceConsult Metal Solutions Technical Team. |
System completion | Manufacturer guidanceVerification of performance. |
Standards | To BS EN 612:2005. |
Product Reference | ZM Silesia Zinc Rainwater System |
Design | Guidance for specification option: Insert requirements or drawing reference. Rainwater calculations can be offered by manufacturer (Metal Solutions) on request. |
Colour/ Finish | Bright rolled. Guidance for specification option: Initial bright surface that quickly forms a light grey patina, under atmospheric conditions. Carbon. Guidance for specification option: Matt dark grey patina surface, chemically created to represent dark weathered zinc. Pre-aged. Guidance for specification option: Matt light grey patina surface, chemically created to represent weathered zinc. |
Hopper | Required. Not required. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Poland |
Country of product manufacture | United Kingdom |
Material | Zinc Titanium |
Manufacturing plant location | |
Expected Life | 80 year |
Third party certifications
ISO 9001 Quality Management
ISO 9001 Metal Solutions
R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041
ZM Silesia Fire Certification
Declare
ZM Silesia Zinc Warranty - Terms & Conditions
Literature
Metal Solutions Rainwater System
ZM Silesia Datasheet
ZM Silesia Application Manual
ZM Silesia Brochure 2017
ZM Silesia Fire Class
Metal Solutions - ISO 9001 2015 Certificate
Metal Solutions Snow Guard System
Topclip Capping System
ZM Selesia - Declaration of performance
Case studies
ZM Silesia Preaged Zinc - Old Bakery, Ashford Kent
