Trans-Edge TEX Stair Edgings
Verified by manufacturer 4 days ago
Heavy-duty aluminium stair edgings with durable slip-resistant inserts.
Application
Suitable for specification in areas such as motorway foot bridges, railway stations, airports, sports stadia, outdoor arenas and heavy industry.
Description
Features and benefits:
- The TEX range of heavy-duty aluminium stair edgings (nosings) incorporate extremely durable slip-resistant inserts.
- Profiles are suitable for exterior use and heavily trafficked internal stairways close to entrances and access points, performing well in accelerated UV weathering tests as well as being chemical resistance tested to ISO175.
General information
Color | Grey |
Material | Aluminium |
Uniclass | |
CAWS | L30/10 Wood stairs L30/590 Applied stair nosings M50/75 Stair nosings and trims M50/750 Stair nosings and trims M51/550 Stair nosings and trims |
Specification data - Rigid stair nosings

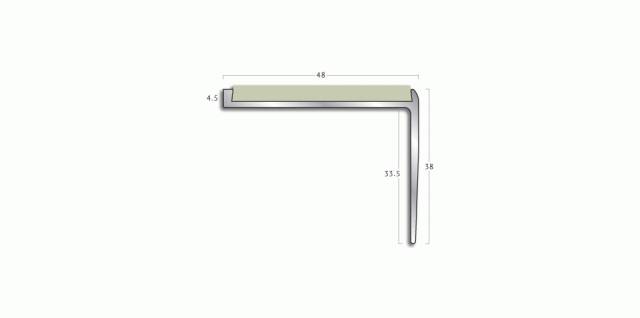

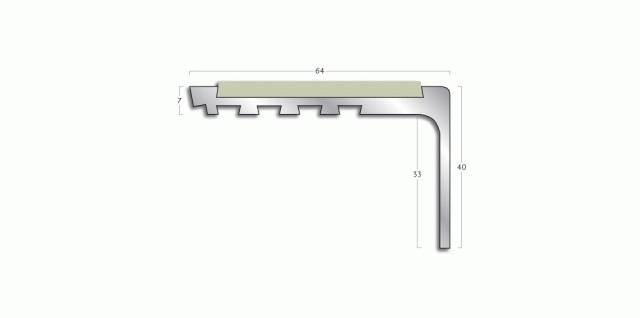

Profile | TEX11R.Guidance for specification option: Square shape, ramp back, 75 mm tread, 55 mm riser, single channel. TEX51R.Guidance for specification option: Rake back shape, ramp back, 75 mm tread, 55 mm riser, single channel. TEX11.Guidance for specification option: Square shape, 6 mm gauge, 62 mm tread, 55 mm riser, single channel. TEX51.Guidance for specification option: Rake back shape, 6 mm gauge, 62 mm tread, 55 mm riser, single channel. TEXN11.Guidance for specification option: Square edging, ramp back, 75 mm tread, 55 mm riser, single channel. TEXN51.Guidance for specification option: Rack back edging, ramp back, 75 mm tread, 55 mm riser, single channel. TEX2R.Guidance for specification option: Square shape, ramp back, 128 mm tread, 40 mm riser, double channel. TEX3R.Guidance for specification option: Square shape, ramp back, 181 mm tread, 40 mm riser, triple channel. TEXE1.Guidance for specification option: Attachable extension profile, 6 mm gauge, 68 mm tread, single channel. TEXR1.Guidance for specification option: Attachable ramp section, 25 mm tread. |
Inserts | |
Colour | Not applicable.Guidance for specification option: For TEXR1. Ash.Guidance for specification option: LRV: 24.77. Avalanche.Guidance for specification option: LRV: 73.00. Charcoal.Guidance for specification option: LRV: 4.07. Firestorm. |
Product Reference | Trans-Edge TEX Stair Edgings |

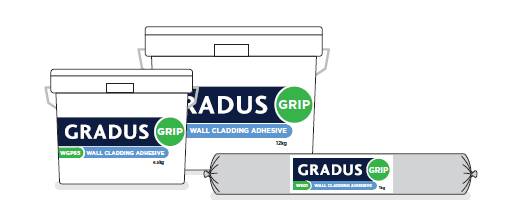

Fixing | Gradus Grip (adhesive only). Mechanical (screw) and adhesive fix. |
Sustainability data
Material | Aluminium |
